Climexel 12,5 kW heat pump

Climexel heat pumps
Recommended retail price 2017 :
5861 €
Our Price :
5861 € Including VAT
Ref. 001786
CLIMEXEL 12.5kW heat pump
EUR 5861.00
For pools up to 70m³ maximum,
Defrost function up to -15°C,
TITANIUM plate exchanger
  • Maximum pool volume 70 m3
  • Single-phase
In stock
- Specifically designed for swimming pools.
- Operational up to -15° C outdoor temperature.
- For pools up to 70 m³ maxi.
- TITANIUM plate exchanger allowing a better performance.

Climexel, part of the Procopi group have designed a complete range of heat pumps renowned for the reliability and performance.

Equipped with an evaporator, treated with the anti-corrosion "Goldfin" system, the CLIMEXEL range is resistant in a maritime atmosphere.
Producing an excellent COP (Coefficient of performance = Output in relation to input).

Featuring a Titanium plate exchanger, creating a better performance than competing models.
The connection of Climexel heat pumps is made by a multifunctional plug featuring a phase inversion detector pour three-phased models. No connections are required in the heat pumps electrical distribution box

- Titanium plate exchanger
- "Goldfin" treated evaporator
- Conforms to EU regulations
- R407C cooling liquid (non-polluting).
- COPELAND SCROLL rotary compressor - very quiet.
- Low water security via flow switch

Contact us for all advice and information concerning your installation taking into account your pool configuration.
International phone contact
Curve chart Climexel 7kw


Evaporator
Evaporator
The Climexel heat pump range is equipped with an extra large, anti-corrosive, evaporator.
The fins of the evaporator have an embossed print that widens the exchange surface and therefore heightens the heat pumps performance.
Furthermore, the "Goldfin" treatment is applied as a doubled, polyurethane varnish, offering a better protection against corrosion.
Titanium plate exchanger
Titanium plate exchanger
The Titanium plate exchanger creates a better performance and is an exclusivity from PROCOPI. Its specific design implicates a low friction loss throughout the hydraulic circuit, conforming to a high-performance COP delivered by the Climexel heat pumps.
Multifunctional plug
Multi functional plug
Using this feature, your heat pump has the possibility to detect a phase-inversion, you no longer need to make connections in the heat pump's distribution box. Installation is simplified and no internal manipulation is required.

Digital control box
Control panel CLIMEXEL 7kw
Using its digital control box (situated on the side of the heat pump) you can regulate your pool water at any desired temperature : the system looks after the rest.

Ventilation surface
The larger ventilation area contained in Climexel heat pumps indicate a quiet running operation and high performance

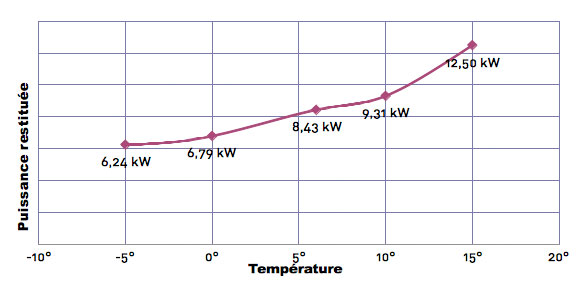

Performance chart Climexel 12.5

Technical charateristics


Defrosting function
serial manufactured, operational up to -15°c
Power output*
12,5 kW
Power input*
2,6 kW
COP**
4,8
Amperage
15,3 A
Power supply
220 V
Decibels
44dBa
Weight
108kg
Union (50) connections supplied
yes
Exchanger
Titanium plates (better performance than a tubular exchanger)
Compressor
COPELAND SCROLL
Cooling liquid
Conforms to norm R407 C

* Residential pool with cover, May to September, air 15° C, water 24°
Valor indicated takes into account a thermic cover, filtration circuit running 15h/day, for a heating season from 1st of May till 15th September.


** Coefficient of performance = Power output / Power input]

Dimensions Climexel 14.5kW
CLIMEXEL heat pump dimensions

Installation schema Optipac 30D
Installation schema CLIMEXEL

ON OPTION: U-CONNECT CONNECTION KIT


U connect
Schema U connect


The U-Connect connection kit allows you to link your heat pump to your pool without plumbing or tools. This fast installation requires no additional electrical installation and avoids the need of a by pass. Just connect the two supplied pipes to your Climexel 12.5 kW heat pump, and connect your portable U-Connect control box. Self-priming, the U-Connect system remains independent from your filtration circuit. You get warm water, faster, without losing heat through piping as is often the case in a classic configuration.

Warranty

5 years on exchanger
2 years on all other parts

Photos non-contractual
Price incl. VAT

Ask for a free quote climexel 12,5 kw heat pump

Other product : Climexel 12,5 kW heat pump
At best price 5861 eur Including VAT.
