Pool equipment Pool access solutions : Ladders, stairs, chairs... Disabled pool access solutions, pool lifts... F145B removable chair lift F145B removable chair lift
Recommended retail price 2024 starting from :
5539 €
Our Price starting from :
5250 € Including VAT
Ref. Abatik 020316
Ref. Provider F145B
F 145 B chair lift for disabled pool access
Ref. Provider F145B
F 145 B chair lift for disabled pool access
Discover the F145B chair lift for disabled access for inground pool access,
Chair lift for disabled access for inground pool access,
Removable, easily detached chair,
360°C manual rotation,
Powered by rechargeable battery,
Maximal lifting weight 140kg
Chair lift for disabled access for inground pool access,
Removable, easily detached chair,
360°C manual rotation,
Powered by rechargeable battery,
Maximal lifting weight 140kg
In stock
F 145 B chair lift for disabled pool access
Ref. Abatik 020316 Ref. Provider F145B
Ref. Abatik 020316 Ref. Provider F145B
5250 €
Securing harness for disabled water entry
Ref. Abatik 020111 Ref. Provider SLING
Ref. Abatik 020111 Ref. Provider SLING
508 €
Optional four-point safety belt option
Ref. Abatik 020110 Ref. Provider C4P
Ref. Abatik 020110 Ref. Provider C4P
165 €
F145B chair lift for disabled pool access in detail
Totally removable chair lift for disabled access to inground pools.
Developed in consultation with aquatic specialists, this chair lift is perfectly adapted to ensure disabled pool access, replying to the needs of residential and public pool owners. Compact and easily manipulated, quickly removed and packed away after each use.
French legislation requires public establishments to facilitate pool access for disabled and those with reduced mobility. This concerns public pools, camping sites, leisure, rehabilitation and sports centres...
Description of the F145B chair lift
The chair lift has been designed for indoor and outdoor use. Featuring a galvanised steel structure, coated with an epoxy paint which resists to humidity and weather conditions.
Totally removable, the chair lift is easily installed to any type of inground pool.
A user-friendly chair lift
The user can raise or lower the chair using the watertight control unit which is connected to the control box, situated on the lift.
The control panel is composed of a security box featuring an emergency stop and 24V rechargeable battery.
A user-friendly chair lift
The user can raise or lower the chair using the watertight control unit which is connected to the control box, situated on the lift.
The control panel is composed of a security box featuring an emergency stop and 24V rechargeable battery.

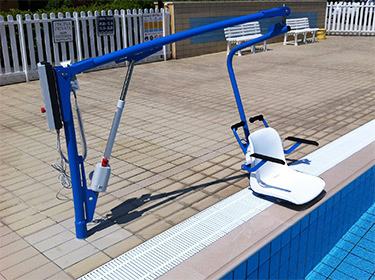

360° chair lift
When in use, the F145B chair lift requires the presence of a second person to manipulate rotation. The unit pivots effortlessly, the 2nd person can effectuate rotation of the chair lift up to 360°.
Removable, multi-task chair lift
This chair lift has been specifically designed to be easily moved.
Its structure allows easy removal and disassembly following use.
Interchangeable, the F145B can be used in several pools
In several simple steps, this chair lift can be assembled and disassembled:
(1) Insert the supporting post into the chair lift base.
Secure the control box featuring the emergency stop to the post.
(2) Secure the mobile lifting arm to the supporting post using a securing pin.
(3) Install the lifting system.
(4) Install the "L" shaped bar which maintains the chair to the lifting arm.
Once these elements are assembled, only the electrical connections need to be powered to allow the use of the chair lift :
- Connect the control unit cable
- Connect the cable which powers the lifting system
- Install the battery above the security box
Its structure allows easy removal and disassembly following use.
Interchangeable, the F145B can be used in several pools
In several simple steps, this chair lift can be assembled and disassembled:
(1) Insert the supporting post into the chair lift base.
Secure the control box featuring the emergency stop to the post.
(2) Secure the mobile lifting arm to the supporting post using a securing pin.
(3) Install the lifting system.
(4) Install the "L" shaped bar which maintains the chair to the lifting arm.
Once these elements are assembled, only the electrical connections need to be powered to allow the use of the chair lift :
- Connect the control unit cable
- Connect the cable which powers the lifting system
- Install the battery above the security box
Adapted seating
The F145B chair can be attached or detached with total ease:
(1) Position the F145B chair in front of the lifting arm as to line up the chair to the fixation system.
(2) Using the hook situated on the lifting arm, attach the F145B chair. Using the lift button on the control unit, gently raise the F145B chair.
Push the lift button on the control unit to gently lift the F145B chair.
(3) Unhook the chariot by pulling on the blue lever situated to the right of the chair.
(4) The F145B chair is no longer attached to the supporting chariot.
Secure and comfortable chair
The seated position is equipped with a plastic chair, a removable chariot equipped with 4 omnidirectional wheels, foldable armrests and 2-point safety belt.
Power supply and security system
The chair lift operates with a removable 24-volt rechargeable battery with a capacity of approximately 30 cycles (one cycle equals 1 raise + 1 lower).
Lifting and lowering time is estimated at 40 seconds.
(A) In the case of battery failure, the F145B features a security system situated on the lifting arm, identified by a red handle. When actioned, this button allows the 2nd person present to lower the seated user in total security.
In the case of emergency, the red button on the control unit blocks all movement of the chair lift.
Maximum user weight is 140kg.
Lifting and lowering time is estimated at 40 seconds.
(A) In the case of battery failure, the F145B features a security system situated on the lifting arm, identified by a red handle. When actioned, this button allows the 2nd person present to lower the seated user in total security.
In the case of emergency, the red button on the control unit blocks all movement of the chair lift.
Maximum user weight is 140kg.
Installation
The chair lift is available with several types of fixations:
1. Surface fixation using 40 x 40 cm plate on a concrete block measuring 60 x 60 x 60 cm
2. In-ground, with a plate integrated into a concrete block measuring 60 x 60 x 60 cm
3. In-ground, using an anchoring system
Need more information? Contact our commercial service who will give you the answers you need.
1. Surface fixation
2. In-ground fixation
Technical features
Dimensions (in mm)
Weight
58 kg
Power supply
24 V rechargeable battery
Manual security system in case of battery failure
Yes
Structure
Epoxy coated galvanised steel structure
Lifting capacity
Up to 140 kg
Lifting system type
Electro-hydraulic
Lifting time (in use)
40 sec
Lowering time (in use)
40 sec
Rotation
Manual 360 °
Fixation
Surface or in-ground
Certification
Conform to EU security norms
Optional accessories
Harness
4 point safety belt
Other colours are available on option
Other colours are available, we will establish your quote to your secific criteria.
Warranty
2 years
Photos non-contractual
