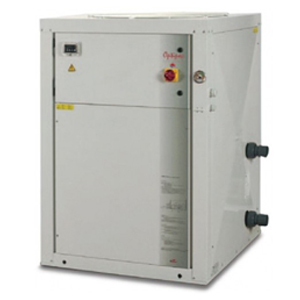

Zodiac Optipac 15 defrosting pool heat pump

Zodiac optipac 15
Recommended retail price 2017 :
19280 €
Our Price :
17468 € Including VAT
Ref. 000238
PSA Optipac 15 defrosting heat pump
EUR 17468.00
Air/water heat pump, operational during all seasons,
Compressor rotary SCROLL,
"Intensive" defrost,
"Heat priority" function.
  • Maximum pool volume 260 m3
  • Three-phase
In stock

Zodiac Optipac 15 defrosting pool heat pump in detail



The OPTIPAC 15 D three-phase heat pump from ZODIAC is an ideal solution to heat your pool water with a maximum volume of 260 m³*.

The OPTIPAC 15 D three-phase offers efficiency and a wide range of functions making this heat pump excellent value for money.

Compact and quiet, the OPTIPAC 15 three-phase integrates perfectly into your surroundings.

Using its digital thermostat and its water flow gauge, you easily control the operation of the heat pump and the temperature of your pool.

The OPTIPAC 15 three-phase uses its water flow gauge to start and stop automatically, simultaneously with the filtration system.

Features



• Titanium exchanger/water condenser,
• High performance "Plate fin" treatment on evaporator,
• Digital display regulator with on/off switch
• "Heat priority" function,
• Portable control panel (consult us),
Rotary SCROLL compressor,
• Water flow regulator,
• Manometer with water flow gauge,
• H.P and LP security pressure switch,
4 season : "intensive"defrost by cycle inversion,
• Frost protection thermostat (stops at -8°C outdoor temperature),
• Anti-corrosive bodywork,
• Phase detection,
• Worked hours display,
Cooling liquid R407C,
• Hydraulic PVC connections Ø 63 (supplied)
Zodiac optipac 15 defrost
Portable control panel
Portable control module (consult us)


Power output*
45kW
Power input*
14kW
COP**
3,21
Maximum volume of water
260m³
Average water flow
15m³/h
Power supply
400 V / 50 Hz
Amperage
26,1A
Decibels
82dBa
Decibels at 10m
54dBa
Net weight
350kg
TITANIUM water condenser
lifetime anti-corrosion guarantee.
Rotary SCROLL compressor
Yes (very quiet running)
Incorporated regulating thermostat
Yes, with digital display
Manometer with water flow gauge
Yes
Conform to European norms
Yes
Bodywork
anti-corrosion
Cooling liquid
R407C

* Residential pool with cover, from May to September, air 15°C.
** Coefficient of performance = Power output / Power input.


Dimensions

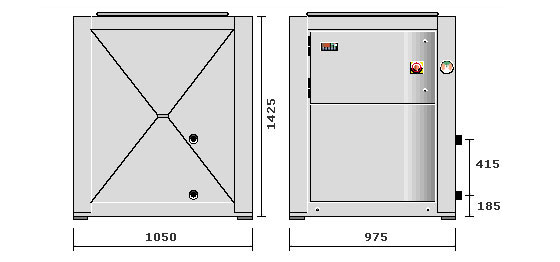

Dimensions optipac 15 three phase

Dimensions of the heat pump OPTIPAC 15 Defrosting heat pump
(L x w x H) = 1050 x 975 x 1425 mm

Installation


Outdoor installation in proximity to the technical house.
Hydraulic PVC connections Ø63 to be used with a bypass on the filter circuit. Two PVC connections, ½ threaded Ø63 supplied. Respect a clear space of 50 cm between the back of the pump and the wall of the technical house. Anticipate the power supply with a 30 mA circuit breaker positioned before the heat pump (not supplied). Avoid obstacles above the heat pump.
Installation schema
Installation schema for the OPTIPAC 15 Defrosting heat pump


OPTION: U-CONNECT connection kit


U connect in situation
U connect schema


The U-Connect connection kit allows you to link a heat pump to your pool without plumbing, labour or tools. This quick intervention does not require a supplementary power supply and avoids the need for a bypass. Just connect the two supplied pipes to your Zodiac Optipac 15 Defrosting heat pump, and link them to the portable U-Connect control box. Self-priming, the U-Connect system remains independent from your filtration circuit. You can have warm water, faster, without losing heat through piping as is often the case in a traditional configuration.

Warranty

2 years
