Climexel 7 kW heat pump

Climexel 7kw
Recommended retail price 2017 starting from :
4378 €
Our Price starting from :
4378 € Including VAT
Ref. 001446
Climexel heat pump 7kW
For pools up to 40m³ maximum,
Defrost function up to -5°C,
TITANIUM plate exchanger
  • Maximum pool volume 40 m3
  • Single-phase
In stock
Climexel heat pump 7kW
Ref. 001446
EUR 4378
4378 €
Order Free quote
Offset command box for CLIMEXEL heat pump
Ref. 007037
EUR 341
341 €
Order Free quote
- Specifically designed for swimming pools.
- Operational up to -5° C outdoor temperature.
- For pools up to 40 m³ maxi.
- TITANIUM plate exchanger.

Climexel, part of the Procopi group have designed a complete range of heat pumps renowned for the reliability and performance.

Equipped with an evaporator, treated with the anti-corrosion "Goldfin" system, the CLIMEXEL range is resistant in a maritime atmosphere.
Producing an excellent COP (Coefficient of performance = Output in relation to input).

Featuring a Titanium plate exchanger, creating a better performance than competing models.

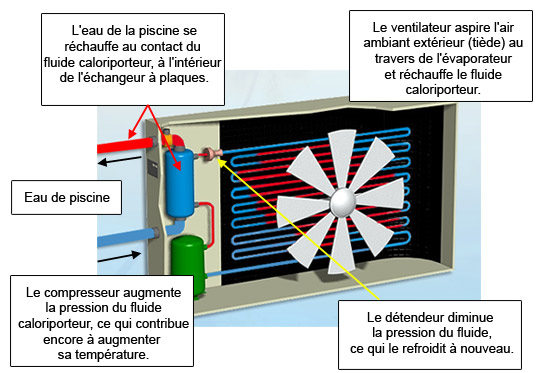

Schema of operation Climexel 7kw

Product advantage
CLIMEXEL heat pumps
Quiet operation
Equipped with a self-supporting fan and Scroll compressor, the CLIMEXEL heat pump is very quiet in operation.
Swimming comfort
All the CLIMEXEL heat pumps are equipped with an automatic filtration control, in relation to the desired pool water temperature.


Contact us for all advice and information concerning your installation taking into account your pool configuration.
International phone contact

- Titanium plate exchanger
- "Goldfin" treated evaporator
- Conforms to EU regulations
- R407C cooling liquid (non-polluting).
- COPELAND SCROLL rotary compressor - very quiet in operation.
- Low water security via flow switch
Curve chart Climexel 7kw

Evaporator
Evaporator
The Climexel heat pump range is equipped with an extra large, anti-corrosive, evaporator.
The fins of the evaporator have an embossed print that widens the exchange surface and therefore heightens the heat pumps performance.
Furthermore, the "Goldfin" treatment is applied as a doubled, polyurethane varnish, offering a better protection against corrosion.
Titanium plate exchanger
Titanium plate exchanger
The Titanium plate exchanger creates a better performance and is an exclusivity from PROCOPI. It's specific design implicates a low friction loss throughout the hydraulic circuit, conforming to a high-performance COP delivered by the Climexel heat pumps.

Thermostat
Control panel CLIMEXEL 7kw
Both the water inlet and outlet temperatures at the exchanger are shown on the display panel.
Visualisation of the compressor and fan (very useful if the control box is situated at a distance).
Symbol depicts the low or lack of water flow in the exchanger. '
You can easily consult the temperature of the sensor controlling defrosting mode.
High and low-pressure alarm ( HP and LP).
Using its digital control box (situated on the front panel of the pump) you can regulate your pool water at any desired temperature : the system looks after the rest.

Ventilation surface
The larger ventilation area contained in Climexel heat pumps indicate a quiet running operation and high performance.

Option


The portable control box
Climexel portable control box
The CLIMEXEL heat pumps benefit from a control panel situated on the front panel and, on option, a portable control box constituted from:
- a control panel with fixation / protection box
- a cable 10m long.
This portable control to be installed at a distance is identical and synchronised with the control panel on the heat pump.
You can control your heat pump in exactly the same manner as if you were using the control panel on the pump

Technical charateristics


Defrosting function
serial manufactured, operational up to -5°c
Power output*
7 kW
Power input*
1,4 kW
COP**
4,9
Amperage
10 A
Power supply
220 V
Decibels
39 dBa
Weight
59 kg
Union (50) connections supplied
Yes
Exchanger
Titanium plates (better performance than a tubular exchanger)
Compressor
COPELAND SCROLL
Cooling liquid
Conforms to norm R407 C

* Residential pool with cover, May to September, air 15° C, water 24°
Valor indicated takes into account a thermic cover, filtration circuit running 15h/day, for a heating season from 1st of May till 15th September.

** Coefficient of performance = Power output / Power input

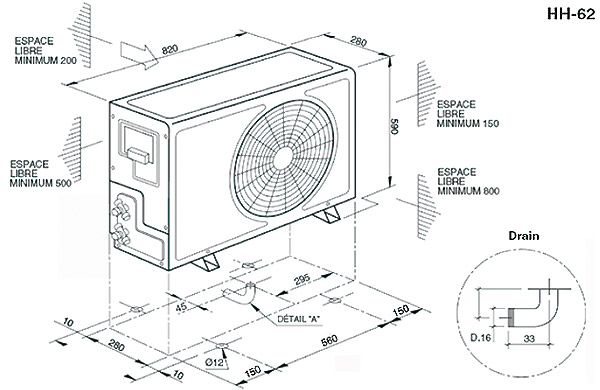

Dimensions


Dimensions Climexel

Installation schema Optipac 30D
Installation schema
(featuring by pass on filtration circuit)


ON OPTION: U-CONNECT CONNECTION KIT


U connect
Schema installation U connect


The U-Connect connection kit allows you to link your heat pump to your pool without plumbing or tools. This fast installation requires no additional electrical installation and avoids the need of a by pass. Just connect the two supplied pipes to your Climexel 7 kW heat pump, and connect your portable U-Connect control box. Self-priming, the U-Connect system remains independent from your filtration circuit. You get warm water, faster, without losing heat through piping as is often the case in a classic configuration.

Warranty

5 years on exchanger
2 years on all other parts

Photos non-contractual
Price incl. VAT
