ECOLD

Ecold opaque winter cover
Recommended retail price 2017 starting from :
12.18 €/m²
Our Price starting from :
7.19 €/m² Including VAT
Ref. 009490
Ecold shape A opaque winter cover
Fast and economic fixation by peripheral bungee elastic,
Rainwater evacuation cavity,
Avoids photosynthesis and the proliferation of algae,
For pools up to 50 m2 maximum
In stock
Ecold shape A opaque winter cover
Ref. 009490
EUR 7.19
Price starting from
7.19 €
/m²
Order Free quote
Ecold shape B opaque winter cover
Ref. 009491
EUR 8.19
Price starting from
8.19 €
/m²
Order Free quote
Ecold shape C opaque winter cover
Ref. 009492
EUR 8.99
Price starting from
8.99 €
/m²
Order Free quote
Pool shapeShape A*Shape B*Shape C*
Price including VAT per m²7.19 €8.19 €8.99 €

*= minimum order: 20 m²
non conform to the norm NF P 90-308

ECOLD cover for pools


This cover maintains clear pool water during the winterizing period, reduces the use of chemical products and facilitates the start up of your pool in Spring time.
This cover provides several advantages:

- Excellent mechanical resistance
- Easy positioning and removal
- Reduces falling hazards around the pool
- Retains dirt leaves, insects, dust penetrating the pool
- Maintains clear water during the winterizing period, eases the start up process of the pool in Springtime
- Central evacuation cavities ensure rainwater evacuation

Compatible pool shapes


Range shape A

Shape A : Rectangular pools
Range shape B
Shape B : Oval, round, eight-shaped, parallogram
Range shape C
Shape C : Other pool shapes

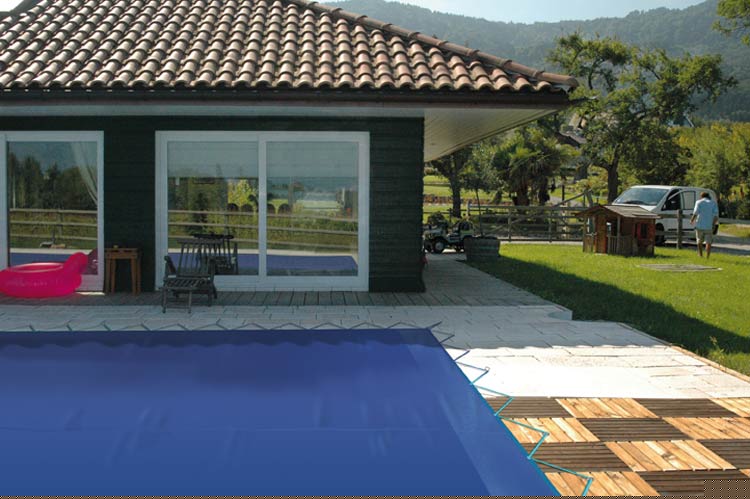

Ecold opaque winter cover in place on pool surface

Available colours for the ECOLD winter cover


Blue with black undersideBlue with black underside
Green with black undersideGreen with black underside
Snow with black undersideSnow with black underside
Sand with black undersideSand with black underside
Pearl grey with black undersidePearl grey with black underside
Anthracite with black undersideAnthracite with black underside


Characteristics of the ECOLD winter cover


The ECOLD opaque cover is recommended for a surface area lesser or equal to 50 m².

The cover features a welded peripheral hem, fixation loops every 80cm approx, rainwater evacuation grid, bungee fixations, blockers and stainless steel P-fixations.

- Opaque winter cover that maintains water limpidity during winter, eases the start up of your pool in Springtime and reduces the use of chemical treatment products.
- Material
High-density polyethylene canvas, laminated on 2 sides, anti-UV treatment, density 210 g/m².
- Assembly
Ultrasound welding.
- Resistance
1100 N / 5 cm (fabric weave)
- Treatments
Anti-UV
- Peripheral finish
Sewn hem
- Overlap
0,35 m from pool water surface

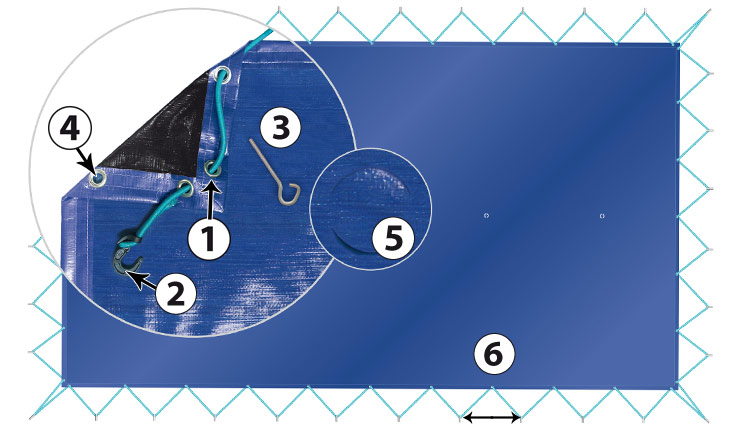

Ecold schema


Operational schema
1/ Doubled eyelets positioned in angles
2/ Bungee fixation blocker
3/ P-fixation
4/ Single eyelet
5/ Rainwater evacuation cavity
6/ 0.80 m maximum

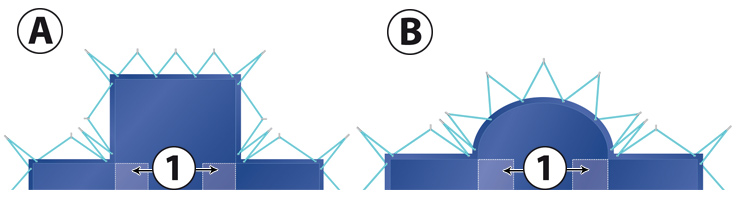

Available stair cuts for ECOLD winter cover


E cold stair cut
A) Straight stair cut
B) Roman stair cut

1/ PE reinforcements

Fixation systems available on option


Depending on the configuration of your pool surround, several fixation systems are available on option for your ECOLD:

Fixation systems on option

1)
P-fixation for grass
2)
Plastic grass fixation
3)
Stainless steel / aluminium fixation bolt 10 mm in diameter / 60 mm in length
4)
Fixation bolt for wooden pool surround with screw / Length 30 mm
5)
Retractable brass bolt 20 mm in diameter / Length 60 mm
6)
Cabliclic
7)
Static hook for above ground pools


Precautions for use


In the case of strong winds, it is highly recommended to use B-PACK water cushions on the side of the cover that is in contact with dominant wind force. They ensure the firm positioning of the cover to the surround and limit the risk of lifting from below in strong winds, limiting damage and premature use.

To limit use due to abrasion on the pool surround, it is important to ensure the cover does not touch the pool coping.
Precautions for use

Guarantee


The cover's guarantee is applicable to the quality of manufacturing materials used and assembly. The guarantee does not cover damages caused by the covers installation, poor maintenance or abrasion caused by rubbing on the pool coping.

Warranty

1 digressive season on material and manufacture

Photos non-contractual
