ASTRAL F1 automatic roller for barred pool cover
A great capacity of autonomy ensures up to 40 openings without recharging (the number of cycles depends on the pool dimensions) and adapts to the majority of barred covers on the market.
Details of the automatic F1 roller
Once engaged, the drive shaft of the F1 allows you to roll your pool cover.
The lacquered control panel commands the rotation direction. Functions with key (stop/start/recharge) and luminous signals for an instant vision over the charge of the unit's battery (5 levels).
The wheel operates with an anti-trace treatment that avoids all marking on your pool surround and other supports. The integrated torque multiplier eases the rolling action, lessening effort.
1. Rolling block, 2. Rolling bar

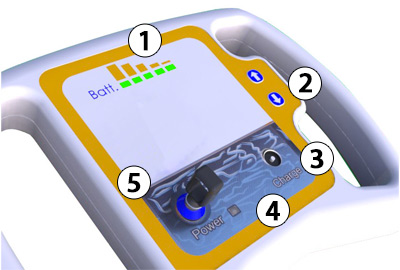

The control panel
2/ Choice of rolling direction,
3/ Connector for battery recharge,
4/ LEDs are luminous when the roller is connected to the power source,
5/ Start/stop key

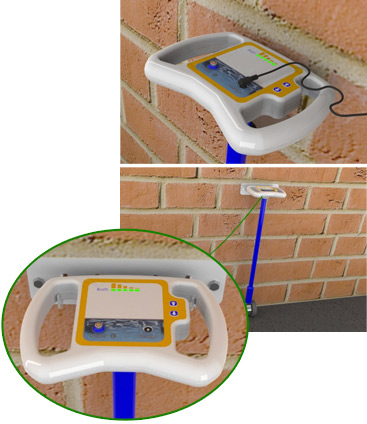

Wall support and battery charge
Fixation of the wall support
The rollers wall support should be installed close to a 220 Volt domestic plug.
Adjust to the desired height, preferably at the same height as the rollers handle (ref photo to the right).
Anchor the support using the supplied dowels and screws.
Charging the batteries
Place the roller on the wall support.
Remove the protective seal.
Plug the roller into the charger.
For an optimal charge, leave plugged in overnight.

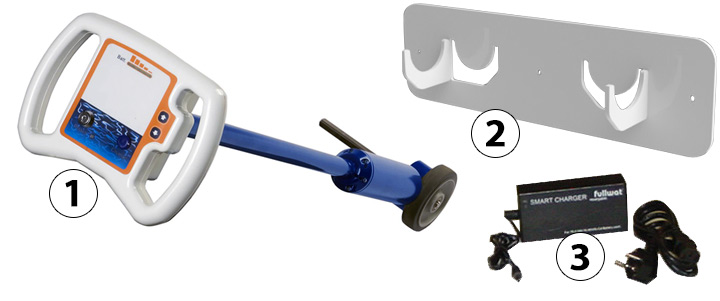

1. Astral F1 roller 2. Wall support, 3. Charger (220V/24V).

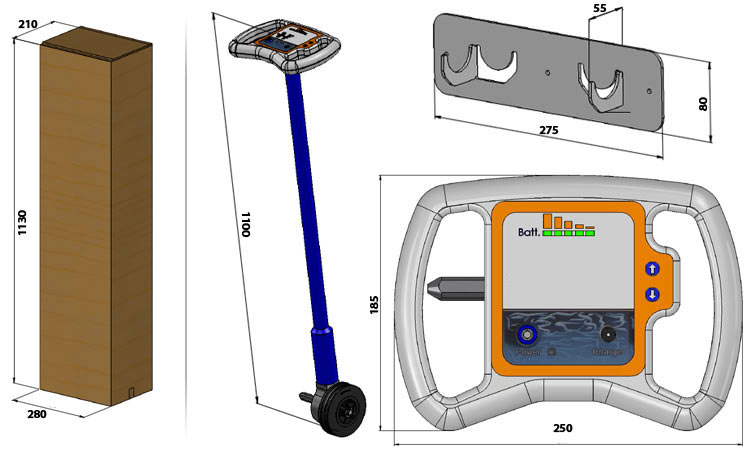

Dimensions of roller
