Harvia Figaro electric sauna stove

Harvia Figaro electric sauna stove
Recommended retail price 2017 starting from :
768 €
Our Price starting from :
672 € Including VAT
Ref. 014327
HARVIA FIGARO FG70E electric sauna stove (remote command module available on option)
Discover the Harvia Figaro electric sauna stove,
its design guarantees equal heat diffusion from the lower to higher bench.
Stove for saunas ranging from 6 to 14m³ in volume,
To be installed on floor level,
Structure made from stainless steel,
Available in black or white.
In stock
HARVIA FIGARO FG70 electric sauna stove
Ref. 014325
EUR 717
717 €
Order Free quote
HARVIA FIGARO FG90 electric sauna stove
Ref. 014326
EUR 814
814 €
Order Free quote
HARVIA FIGARO FG70E electric sauna stove (remote command module available on option)
Ref. 014327
EUR 672
672 €
Order Free quote
HARVIA FIGARO FG90E electric sauna stove (remote command module available on option)
Ref. 014328
EUR 753
753 €
Order Free quote
Classic C150 control unit
Ref. 001767
EUR 399
399 €
Order Free quote
Harvia griffin CG170 control unit
Ref. 012720
EUR 652
652 €
Order Free quote
Sauna stones calibrated from 10 to 15cm, 20 Kg box
Ref. 023214
EUR 59
59 €
Order Free quote

Harvia Figaro electric stove in detail


The Figaro is a large capacity stove adapted to residential saunas.

Its stone compartment is open from top to bottom, allowing ease of use when pouring water and ensuring equal heat diffusion to the upper and lower bench.

Its structure combines the use of traditional materials, steel and stone. Outer casing is available in black or white. The grill which covers the stone compartment is made from stainless steel.

Models


There are four available models :
- FG70 and the FG70E with a capacity of 6,8kw
- FG90 and FG90E with a capacity of 9kw

Control panel


The Figaro FG70 and FG90 stoves feature an integrated control panel situated at the bottom of the stoves front panel that can manage :

- Sauna preheat (up to 18h in advance)
- Temperature control
- Programs the duration of sauna (up to 4h)

The FG70E and FG90E models are managed by a command module.

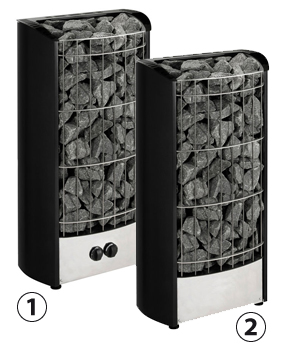

Harvia Figaro electric sauna stove

Figaro FG70 and FG90 (1), Figaro FG70E and FG90E (2)

Features


Model FG70 FG70E FG90 FG90E
Capacity6,8kw6,8kw9kw9kw
Minimum sauna volume6m³6m³8m³8m³
Maximum sauna volume10m³10m³14m³14m³
Width480mm480mm480mm480mm
Height940mm940mm940mm940mm
Depth260mm260mm260mm260mm
Weight20kg20kg20kg20kg
Maximum capacity stone compartment90kg90kg90kg90kg
Control moduleIntegratedOptional remote commandIntegratedOptional remote command
Available coloursBlack or whiteBlack or whiteBlack or whiteBlack or white

Installation


The Figaro stove must be installed on floor level with its back facing a wall panel.

Security distances


ModelFG70/FG70EFG90/FG90E
Security distance A in relation to side panel30mm30mm
Security distance B front facing100mm150mm
Security distance C in relation to ceiling960mm960mm

Safety distances Harvia Figaro electric sauna stove

Over view (1), profile view (2), front view (3)

Electrical connection


Figaro stoves can use a singe or three phase power supply.

Model FG70/FG70E FG90/FG90E
3-phase supply voltage400V 3N400V 3N
Cable sections5 x 1,5mm²5 x 2,5mm²
Fuses3 x 10A3 x 16A
1-phase supply voltage230V 1N230V 1N
Cable sections3 x 6mm²3 x 10mm²
Fuses1 x 35A1 x 40A

The kit includes:


- 1 Harvia Figaro stove
- 1 sensor to control and adjust sauna temperature.
Harvia Figaro electric sauna stove

Spacer20Figaro FG70E stove in black

Available colours


Available colours Harvia Figaro electric sauna stove

Figaro FG70 and FG90
Figaro FG70E and FG90E


Models Figaro FG70, FG90, FG70E and FG90E are available in black or white. Your choice of colour should be defined when ordering.

Available options



- Volcanic stones
90kg are required for the Figaro stove.
Sauna stones for Harvia sauna stoves

- Classic C150 or Griffin CG170 command module (for FG70E and FG90E)
Harvia Classic distance control unit for Sauna or Harvia Griffin distance control unit
Featuring a wider range of settings :
- Sauna preheat (up to 12 hours in advance)
- Program duration of sauna session (1 to 12h)
- Temperature control (from +40 to +110°C)
- Manage sauna lighting and ventilation


Warranty

2 years
