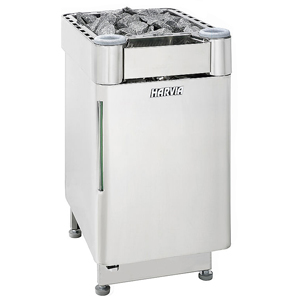

Harvia Senator Combi electric stove

Harvia Senator Combi electric sauna stove
Recommended retail price 2017 starting from :
1676 €
Our Price starting from :
1676 € Including VAT
Ref. 014339
HARVIA SENATOR COMBI T7C electric sauna stove
Discover the Harvia Senator Combi electric sauna stove for saunas between 6 and 14m³
Featuring evaporator to provide humid (45-65°) or dry (70-90°) heat,
Compact, stainless steel structure
In stock
HARVIA SENATOR COMBI T7C electric sauna stove
Ref. 014339
EUR 1676
1676 €
Order Free quote
HARVIA SENATOR COMBI T9C electric sauna stove
Ref. 006928
EUR 1716
1716 €
Order Free quote
HARVIA SENATOR COMBI T7CA electric sauna stove
Ref. 014341
EUR 1949
1949 €
Order Free quote
HARVIA SENATOR COMBI T9CA electric sauna stove
Ref. 014342
EUR 2009
2009 €
Order Free quote

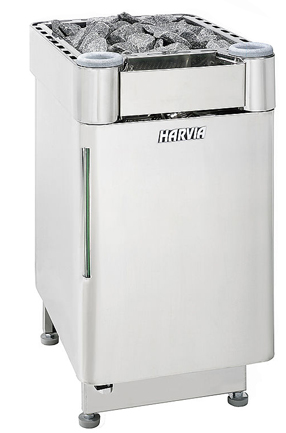

Harvia Senator Combi electric sauna stove in detail


The Harvia Senator Combi is a powerful and resistant stove adapted to intensive use.
Half-way between a sauna and hammam, this stove offers several types of sauna session.
Its compact dimensions (L345 x D465mm) allow you to optimise your relaxation area.

Use


Perfectly adapted for use in:
- Gyms
- Well being centres
- Hotels
- Holiday complexes

Models


There are four available models:
- T7C and T7CA with a capacity of 7kw
- T9C and T9CA with a capacity of 9kw

Multi-fonctional


The Senator Combi is an electric stove combined with an evaporator. Several methods of use are possible:
Harvia Senator Combi electric sauna stove
- Traditional Finnish sauna (dry and warm): temperature ranging from 70°C and 90°C with a humidity rate of 10 to 25%
- Steam sauna (humid heat with a lower temperature): temperature ranging from 45 to 65°C with a humidity rate of 40 and 65%.

Control panel


The Senator Combi is managed by a control panel

The T7CA and T9CA models feature automatic reservoir fill system.

Features


ModelT7C/T7CAT9C/T9CA
Capacity7kw9kw
Minimum sauna volume6m³8m³
Maximum sauna volume9m³14m³
Width345mm345mm
Height660mm660mm
Depth465mm465mm
Weight20kg20kg
Maximum capacity stone compartment35kg35kg
Control unitClassic C105S or Griffin CG170CClassic C105S or Griffin CG170C
Reservoir fillManual/AutomaticManual/Automatic

Installation


This stove should be installed on floor level.

For the T7CA and T9CA anticipate a water inlet with stop valve for automatic reservoir fill system.

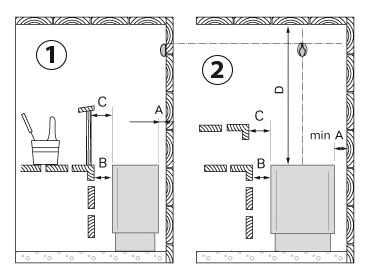

Security distances


ModelT7C/T7CAT9C/T9CA
Security distance A in relation to wall section80mm120mm
Security distance B in relation to lower bench35mm50mm
Security distance C in relation to upper bench60mm80mm
Security distance D in relation to ceiling1250mm1250mm
Spacer20Profile view (1), frontal view (2).
Safety distances Harvia Senator Combi

Electrical connection


Senator Combi stove requires three-phase power supply.

ModelT7CT9CT7CAT9CA
Supply voltage400V 3N400V 3 N400V 3 N400V 3 N
Cable section for control unit5 x 2,5mm²5 x 2,5mm²5 x 2,5mm²5 x 2,5mm²
Cable section for connection box5 x 2,5mm²5 x 2,5mm²7 x 2,5mm²7 x 2,5mm²
Cable section for stove connection5 x 2,5mm²5 x 2,5mm²7 x 2,5mm²7 x 2,5mm²
Cable section for sensor4 x 0,25mm²4 x 0,25mm²4 x 0,25mm²4 x 0,25mm²
Fuses3 x 16A3 x 16A3 x 16A3 x 16A

The kit includes :


- 1 Harvia Senator Combi stove
- 1 sensor to control and adjust sauna temperature

Available options :


- Classic C105S or Griffin CG170C control unit
Harvia Classic distance control unit for Sauna or Harvia Griffin distance control unit
These units offer :
sauna preheat (up to 12h prior to use)
Temperature control (+40°C to +110°C)
Program the duration of the sauna (1 to 12h)
Control the humidity rate (20 to 95%)
Manage lighting and ventilation

- Volcanic sauna stoves available on option, 35 kg are required for stove operation
Sauna stones for HARVIA Topclass electric stove

Warranty

2 years
