HAYWARD Powerline heat pump

Hayward powerline
Recommended retail price 2017 starting from :
1482 €
Our Price starting from :
1390 € Including VAT
Ref. 000375
Hayward PowerLine heat pump 6 kW
Reversible heat pumps for pools,
Automatic defrost,
Titanium exchanger,
Compatible with salt electrolysis
  • Single-phase
In stock
Hayward PowerLine heat pump 6 kW
Ref. 000375
EUR 1390
1390 €
Order Free quote
Hayward PowerLine heat pump 8 kW
Ref. 000374
EUR 1590
1590 €
Order Free quote
Hayward PowerLine heat pump 11 kW
Ref. 000373
EUR 1890
1890 €
Order Free quote
Hayward Powerline heat pump 15 KW
Ref. 019054
EUR 2890
2890 €
Order Free quote
Hayward proves their experience and innovative technology in the design of the Powerline heat pump for pools, that enables you to enjoy and lengthen your pool season while economising on pool heating.

Absorbing the calories present in the ambient air, the Powerline heat pump restitutes its power output using a clever titanium exchanger that is compatible with all pool water treatments such as, chlorine, salt or bromine.
Hayward Powerline heat pump for pools is ecologic and economic.
Hayward powerline


Titanium exchanger
Unalterable, it is compatible with all chemicals commonly used for the treatment of swimming pool water
Compatible with salt electrolysis.
Double flow system optimising heat transfer.

Reversible function
The heat pump allows a possible cooling of water using to reversible feature

Bodywork
Galvanised steel chassis, combining long lifespan and resistance in corrosive climates.
Black PVC bodywork, optimising the performance of the heat pump by absorbing heat produced by sun rays.


Quiet
The Hayward Powerline pool heat pump is very quietly run by means of a large surface used for the suction of air. The ample air circulation allows the pump to operate without noise.

Rotary compressor
For high performance and good COP.

Easy care
Everything has been simplified for very easy maintenance :
- Shrader valves both high and low pressure for gas recharges.
- Winterizing valve.
- External winterizing box for easy electrical connection.

Defrosting
Automatic defrosting, avoiding damage caused by frost.
Control panel
Control panel
The digital control panel is clear and practical, fixed to the right hand side of the heat pump.
You can :
- Set the desired temperature of the pool water from 16°C to 32°C.
- Know the temperature of your pool water immediately.
- See the running time of the compressor when in operation.
- Know the defrosting time required.
- Know the temperature of ambient air

Performance of the Powerline heat pump


Performances of the powerline heatpump
Models6 kW single-phase8,8 kW single-phase11 kW single-phase
Maximum volume of water40m350m375m3
Power supply230 V - 50 Hz230 V - 50 Hz230 V - 50 Hz
Plumbing connection50 mm50 mm50 mm
Noise level at 1 m47 dB(A)51 dB(A)54 dB(A)
Power input*1,2 kW1,9 kW2,3 kW
Power output*6 kW8,8 kW11 kW
Cooling capacity3,2 kW5,5 kW7,5 kW
COP*54,634,78
Minimum waterflow(m3/h)2,334,5
Cooling liquidEcological R 410 CEcological R 410 CEcological R 410 C
Dimensions in mm (AxBxC)855x415x6501000x415x6501000x415x650
Net weight (kg)49 kg57 kg65 kg
Fan strength50 W120 W120 W
Rotation speed of fan770 rpm850 rpm850 rpm

* air at 24°c, water at 27°c (constructos data)
COP = power input/power output

PowerLine heat pump connection to pool:



Installation schema.

OPTION: U-CONNECT connection kit

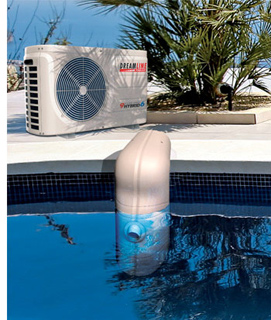

U connect in situation
Schema u connect


TheU-Connect connection kit allows you to link a heat pump to your pool without labor, plumbing or tools. This quick installation does not require a supplementry power supply and avoids all need of a by pass. Just connect the two supplied pipes to your Hayward Powerline heat pump, and join them to your U-Connect heat pump. Self priming, the U-Connect stays independent from your filtration system. You get hot water, faster, without loosing heat through piping as is often the case in classic configurations.

Warranty

2 years
