Hayward Salt & Swim salt electrolyser
Treatment of your pool water by salt electrolysis,
For existing pools or pools under construction up to 110m³,
Self-cleaning by polarity,
Reduced installation space required,
Flow detection security
In stock
Hayward Salt & Swim salt electrolyser
Ref. 016789
EUR 799
799 €
Order Free quote
HAYWARD EZ pH regulation
Ref. 016790
EUR 499
499 €
Order Free quote
Salt electrolysis is an efficient and comfortable method of disinfection. User-friendly and independent, this unit permanently supervises chlorine levels present in water.

The concept of an electrolyser is to transform salt (sodium chloride) disolved in the pool water to natural chlorine to eliminate bacteria and algae.

Use


The electrolyser Salt & Swim is adapted to existing pools or pools under construction up to 110m³. Ideal for pool renovation, requiring no specific tools for installation.

When using the salt and swim system, you no longer have to manipulate or store chemical treatment products. The required quantity of chlorine to fully disinfect the pool water is automatically regulated.

Salt is added to the pool water when the system is installed (approx 3,2 grams per litre) with some complementary additions during the course of the year. This system is very cost-effective.

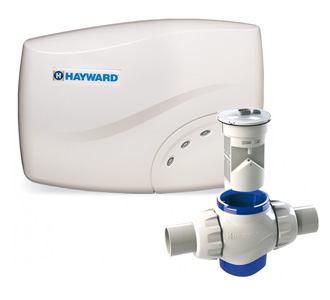

HAYWARD Salt & Swim electrolyser

The cell


The cell is composed of titanium plates covered with ruthenium iridium oxide. Self-cleaning by polarity inversion. This guarantees a high-quality chlorine production and contributes to the lifespan of the cell.

This cell features a temperature sensor and flow detector. The cell is positioned on your pipework. Its compact size adapts to all types of configurations - vertical, horizontal or inclined.

Control panel


Salt and Swim is commanded by an easy to use control panel which indicates the unit's status by LED luminous signals.

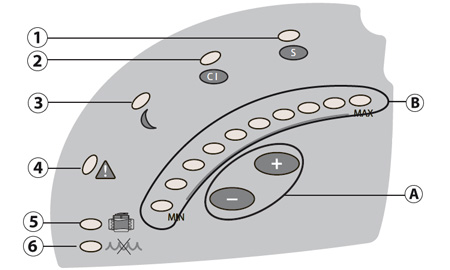

Salt and swim control panel
1. Super Chlorination : Appears when shock chlorine treatment is in operation.
2. Production : Chlorine is being produced.
3. Pause : The unit is waiting for the filtration cycle to start /the unit is between two cycles.
4. Problem detected : refer to the owners manual.
5. Poor circulation : The unit's cell life is reaching expiry
6. Insufficient flow : The filtration flow is insufficient to ensure chlorine production.


The buttons concerning chlorine production allow the unit to be programmed (A), the LED luminious signals report the level of production (B).

The pack contains :



- 1 command module in ABS housing with wall mounting kit.
- 1 Cell base
- Compression screws and rings
- 1 electrolytic cell equipped with titanium plates coated with ruthenium and iridium oxide.
- Cell cap with power cord
- Cutting and installation template
- Hardware
- 1 bolt nut

Technical charateristics


Chlorine production
19g/h
Salt level
3,2g/l
Maximum volume of pool
110m³
Minimum required flow
5m³/h
Orientation of cell
Vertical, horizontal or inclined
Cell cleaning
Polarity inversion every three hours
Flow detector
Integrated to cell
Super chlorine mode
Yes
Low-temperature protection
By reduced production under 15°C, stops under 10°C
Weight of unit
6,3kg

Installation



2 installation methods possible

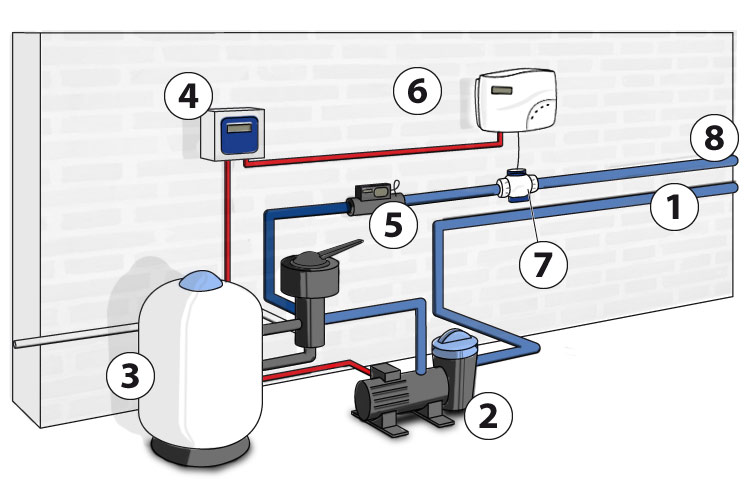

A.Linear installation


Linear installation HAYWARD Salt & Swim electrolyser
1. Pool suction
2. Filtration pump
3. Pool filter
4. Electrical box
5. Heating unit (optional)
6. Salt & Swim command module
7. Salt & Swim electrolytic cell
8. Pool discharge


To optimise the use of your electrolyser we reccomend a by-pass installation of your cell at the filtration outlet.

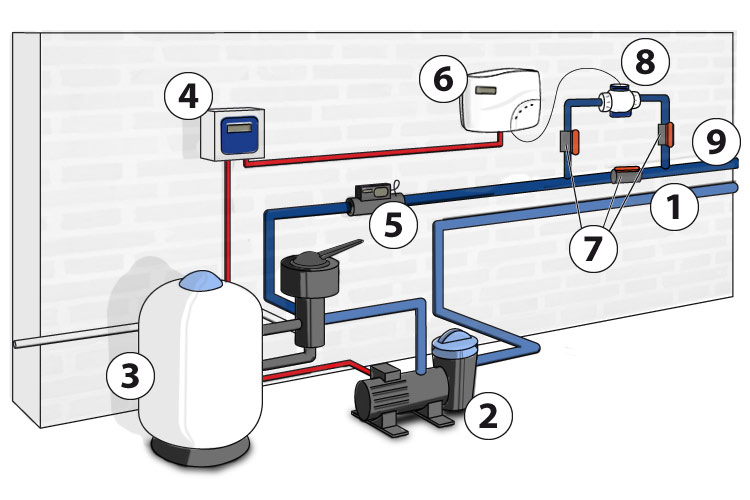

B. By-Pass installation


By pass installation HAYWARD Salt & Swim electrolyser
1. Pool suction
2. Pool pump
3. Pool filter
4. Electrical box
5. Heating unit (optional)
6. Salt & Swim command module
7. By-pass valves
8. Salt & Swim electrolytic cell
9. Discharge


Water pH should be between 7 and 7,4. Salt electrolysis heightens the pH level contained in water. For maximum confort, we advise you to associate a Regul EZ pH dosing pump to automatically regulate your pH level.

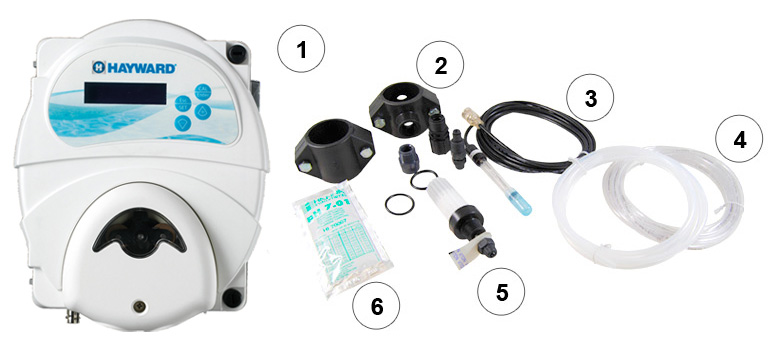

Contents of Regul EZ pH pack


HAYWARD Salt & Swim electrolyser pack
1. Regul EZ pH dosing pump
2. Paddle clamp collars
3. pH sensor
4. Injection and suction tubes
5. Suction seive
6. Buffering solution for pH sensor

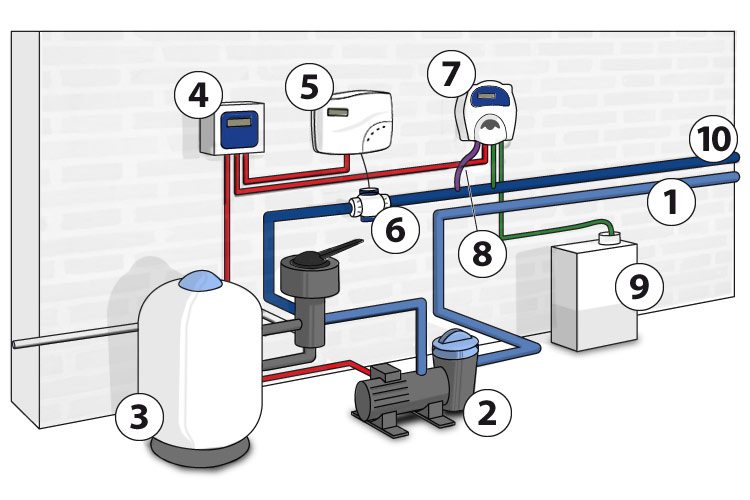

Operation of the Regul EZ pH regulator


Regul EZ pH installation
1. Pool suction
2. Filtration pump
3. Filter
4. Electrical box
5. Salt & Swim command module
6. Salt & Swim electrolytic cell
7. Regul EZ pH dosing pump
8. pH sensor
9. pH corrector storage
10.Pool discharge


Technical charateristics


Operation
pH + and pH - correction
Pump flow
From 1,5 to 5l/h
pH range
From 0 to 14
Measurement precision
0,1
Calibration
Automatic
Power supply
220V/50Hz single phase
Consumption
18w
Back pressure
1,5 bars
Dimensions of unit housing
W162 x H234 x D108mm
Weight of unit
1kg
Suction cane
Supplied
pH measure sensor
Supplied
Paddle clamp sensor
Diameter 50mm
Buffering kit solution
pH + and pH -

Reccomendations


- Check your filtration pump is compatible with a salt electrolyser

-If you do not already use a Pool Terre we reccoment that you install one to evacuate residual currents that can deteriorate metallic parts if in contact with pool water.

Warranty

2 years
