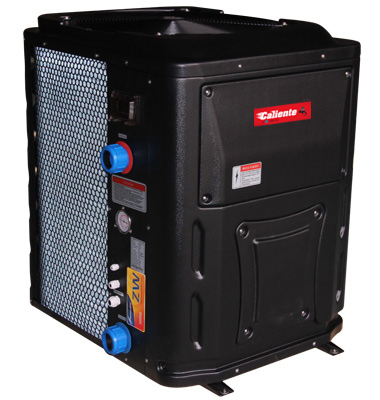

Heat pump CALIENTE 210 BLACK EDITION 4SV ABS vertical - 21kw single-phase for pools 90-120m3
Discover the heat pumps Caliente 4SV for pools up to 220m³,
Compact with very low noise level when in operation,
Operational during the 4 seasons up to -10°c,
Compatible with salt treatment, COPELAND Scroll™ compressor,
By-pass" kit and winter cover included
In stock
Heat pump CALIENTE 210 BLACK EDITION 4SV ABS vertical - 21kw single-phase for pools 90-120m3
Ref. 017521
EUR 3590
3690
3590 €
Order Free quote
Heat pump CALIENTE 210 BLACK EDITION 4SV ABS vertical - 21kw three-phase for pools 90-120m3
Ref. 017522
EUR 3690
3690 €
Order Free quote
Heat pump CALIENTE 240 BLACK EDITION 4SV ABS vertical - 24kw three-phase for pools 90-130m3
Ref. 017555
EUR 3990
3990 €
Order Free quote
Heat pump CALIENTE 280 BLACK EDITION 4SV ABS vertical-26kw single-phase for pools 90-150m3
Ref. 017261
EUR 4740
4740 €
Order Free quote
Heat pump CALIENTE 280 BLACK EDITION 4SV ABS vertical-26kw three-phase for pools 90-150m3
Ref. 017262
EUR 4740
4740 €
Order Free quote
Heat pump CALIENTE 340 BLACK EDITION 4SV ABS vertical-34kw three-phase for pools 100-220m3
Ref. 017263
EUR 5490
5490 €
Order Free quote
It is imperative to install these heat pumps outdoors.
The heat pump CALIENTE BLACK EDITION 4SV features an over dimensioned evaporator and fan specifically designed to heat economically pools of a large volume.
For pools with a very large volume, it is possible to associate several heat pumps.

The automatic defrost system that functions via the inversion of warm gas heating water up to -10°C outdoor temperature. This allows you to prolong your swimming season or heat your pool all year round.
The titanium exchanger makes these pumps compatible with all water treatments, including salt.

The heat pumps CALIENTE BLACK EDITION 4SV are equipped with a COPELAND Scroll™ compressor, renowned for their performance, dependability, economic consumption and extremely low noise level.

In response to environmental constraints, the cooling gas
R 410A is used.

The intuitive digital control panel allows a full range of settings for your heat pump.

Simple hydraulic by-pass connectors on the filters circuit (positioned after the filter).
Heat pump caliente 4SV

How does it work?


The heat pump transforms the calories present in the outside ambient air into heat for your pool.
The gas R 410A circulates into the evaporator and absorbs the calories present in the ambient air, the flow of air is generated by a powerful fan.
The gas is then compressed (using the COPELAND Scroll™ compressor), rises in temperature, passes through the titanium heat exchanger, transferring the created heat to the pool water. The gas then cools and returns to the evaporator.

Operation heat pump

Advantages


A heat pump is economic and ecologic. Even though electricity is used to run the pump, the energy rendered is 4 to over 5 times superior to the energy used.

The heat pump CALIENTE BLACK EDITION 4SV allows you to economise up to 80% of energy compared to an electrical heating system.

The heat pump CALIENTE BLACK EDITION 4SV in detail


The heat pump CALIENTE BLACK EDITION 4SV is simple to use throughout the year: Just adjust the settings to the desired temperature, the rest of the system is completely automatic.

These heat pumps feature ABS fairing, extremely resistant complete with an anti-UV treatment. Anti-vibration mounts (shock absorbers) reduce the noise level whilst absorbing vibration.

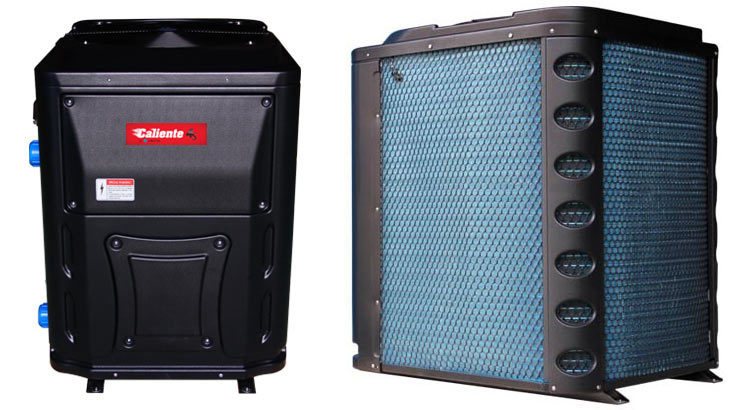

Heat pump caliente 4SV 4 saisons

COPELAND Scroll™Compressor

.

The heat pump CALIENTE BLACK EDITION 4SV is equipped with COPELAND Scroll™ compressors, renowned for their performance and dependability, giving a very economic and quiet running mode.

How does a Scroll™ compressor work?

A Copeland Scroll™ compressor works with a « scroll », or spiral that can raise the temperature of the pressure of the fluid in which the calories are captured till the desired discharge pressure is reached.

Contrary to rotary compressors, Scroll technology uses less moving components, consuming less energy and therefore, making important economies.

A very feeble noise level gives a better user comfort. This pumps dependability is unequalled and its maintenance is simplified.

The motors for Copeland Scroll™ compressors are high performance, using less electricity than standard motors to produce the same nominal power. This allows you to make economies with your power provider.
Logo compresseur copeland scroll

Titanium exchanger


The heat exchanger allows the transfer of heat produced by the heat pump compressor to the pool water. The titanium exchanger is compatible with all types of water treatments including salt.

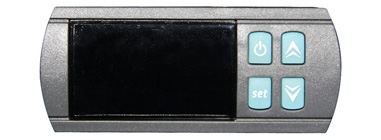

Control panel


Each heat pump CALIENTE 4SV is equipped with an easy to use digital control panel that shows the water's temperature, instructions and alerts.

Automatic defrost system

Remote control Caliente

Depending on the outside temperature and relative humidity (the rate of humidity contained in outdoor ambient air), a heat pump evaporator can cover itself with frost, preventing its correct operation.
To solve this problem, the heat pumps CALIENTE BLACK EDITION 4SV are equipped with an automatic defrosting cycle running on inverted gas. At regular intervals, some of the hot gases produced by the compressor are reinjected towards the evaporator, raising in temperature, therefore removing frost.

This quick process rapidly optimises the heating time of the pump contrary to most other models on the market that have a defrost cycle that functions by stopping the compressor and forcing the fan to circulate air.
This indicates the heat pumps CALIENTE BLACK EDITION 4SV are operational up to negative temperatures of -10°C.

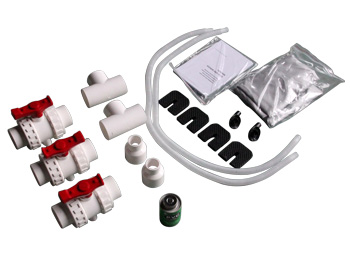

Included accessories


- 1 By-pass connection kit,
- 1 condensation outlet pipe with clip connector,
- 4 vibration mounts (that absorb the vibrations produced when the heat pump is functioning)

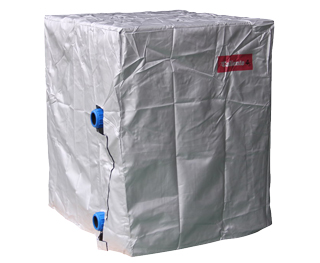

- 1 winter cover
- 1 simple instruction booklet, 1 detailed instruction booklet

Accessories caliente 4sv


Spacer20By-pass connection kit, outlet pipe, vibration mounts and instruction booklets
Winter cover Caliente 4SV


winter cover

The Coefficient of Performance (C.O.P)


Picto cop
Spacer20
The COP or Coefficient of Performance represents the energetic performance of a heat pump operational in heat mode, reflecting the relationship between output energy used for heating and input energy used to run the pump.

Example: A heat pump that has a COP of 5 uses 1KW of electricity and produces 5kw of heat. This unit will produce 5 times more energy than it uses.

This indicates that the higher the C.O.P, the better the machines performance and your electricity bill will be lower in comparison to a classic heating system.

Heating capacity


Information : The figures contained in the below table suppose the use of a thermal cover (ie bubble blanket). If your pool is not equipped with one please contact our team of advisors who will help you select the model adapted to your specific configuration and needs.

Heating capacity temperature of air 27°C, température of water 27°C

ModelCaliente 210 Black Edition 4S Verticale single-phaseCaliente 210 Black Edition 4S Vertical three-phaseCaliente 240 Black Edition 4S Vertical three-phaseCaliente 280 Black Edition 4S Vertical single-phaseCaliente 280 Black Edition 4S Vertical three-phaseCaliente 340 Black Edition 4S Vertical three-phase
Output energy (KW)21,421,423,827,827,834,7
Input energy (KW)3,153,153,443,703,705,32
COP (coefficient of performance)6,796,796,936,976,976,52

Heating capacity temperature of air 15°C, temperature of water 27°C

ModelCaliente 210 Black Edition 4S Vertical single-phaseCaliente 210 Black Edition 4S Vertical three-phaseCaliente 240 Black Edition 4S Vertical tri-phaseCaliente 280 Black Edition 4S Vertical single-phaseCaliente 280 Black Edition 4S Vertical three-phaseCaliente 340 Black Edition 4S Vertical three-phase
Output energy (KW)14,214,215,917,617,624,3
Input energy (KW)2,912,913,313,563,565,15
COP (coefficient of performance)4,884,884,804,944,944,72

Heating capacity temperature of air -10°C, temperature of water 26°C

ModelCaliente 210 Black Edition 4S Vertical single-phaseCaliente 210 Black Edition 4S Vertical three-phaseCaliente 240 Black Edition 4S Vertical three-phaseCaliente 280 Black Edition 4S Vertical single-phaseCaliente 280 Black Edition 4S Vertical three-phaseCaliente 340 Black Edition 4S Vertical three-phase
Output energy (KW)7,97,99,49,89,813,6
Input energy (KW)2,912,913,453,563,565,04
COP (coefficient of performance)2,712,712,722,752,752,70

Technical features


ModelCaliente 210 Black Edition 4S Vertical single-phaseCaliente 210 Black Edition 4S Vertical three-phaseCaliente 240 Black Edition 4S Vertical three-phaseCaliente 280 Black Edition 4S Vertical single-phaseCaliente 280 Black Edition 4S Vertical three-phaseCaliente 340 Black Edition 4S Vertical three-phase
Recommended volume of pool*90 to 120 m³90 to 120 m³90 to 130 m³90 to 150 m³90 to 150 m³100 to 220 m³
Voltage (V) / Frequence Hz220-240/50380-415/50380-415/50220-240/50380-415/50380-415/50
Amperage (A)1466,816,47,110,1
Recomended fuse402525502530
Volume of pool (m³)90 to 12090 to 12090 to 13090 to 15090 to 150100 to 220
Recommended water flow (m³/h)5,6-11,25,6-11,26,2-127,1-147,1-148-17
Piping diameter (mm)505050505050
CompressorCOPELAND Scroll™COPELAND Scroll™COPELAND Scroll™COPELAND Scroll™COPELAND Scroll™COPELAND Scroll™
Air outletVerticalVerticalVerticalVerticalVerticalVertical
ExchangerTitanium - body PVCTitanium - body PVCTitanium - body PVCTitanium - body PVCTitanium - body PVCTitanium - body PVC
Noise level at 10m (dbA)505050505050
Noise level at 1m (dbA)595959595959
Liquid cooling fluid R410A recharge(Kg)1,41,42,22,833,6
Fan speed (rotation per min)830-870830-870830-870830-870830-870830-870
Dimensions of heat pump (L x w x h in mm)910 x 707 x 940910 x 707 x 940910 x 707 x 940910 x 707 x 940910 x 707 x 940910 x 707 x 940
Net weight heat pump (Kg)100100118120120130
Packed dimensions (L x b x h in mm)935 x 900 x 975935 x 900 x 975935 x 900 x 975935 x 900 x 975935 x 900 x 975935 x 900 x 975
Packed weight (Kg)120120138140140150


*Estimated average nominal figures for a private pool equipped with an isotherm cover from 15 May to 15 September.

Where should I install my heat pump?


Choosing the right place


- Choose an outdoor space.

- The area should have a good air circulation with no obstacles.

- The heat pump needs to be on a flat, stable surface. A concrete surface is ideal.

- The heat pump produces condensation that is evacuated by the supplied pipe featuring a clip connecting system.

- After installation, the equipment should be in a vertical position with no inclination.

- The equipment should not be installed in proximity to pollution, corrosive gases, dust or dry leaves.

- Respect the distance between the equipment and surrounding objects as shown in the schema to the right.

Free space needed surrounding equipment (in mm)

Installation concept

A. Air inlet, B. Air outlet.

Schema caliente vertical installation

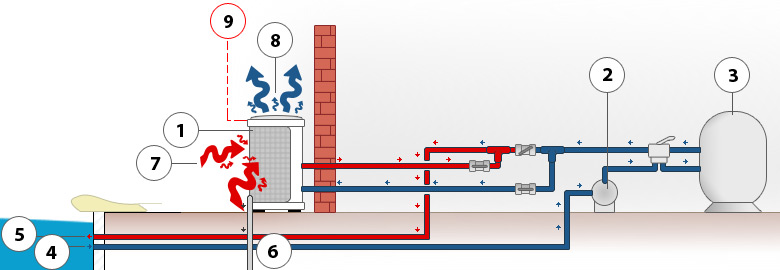

Installation of heat pump

Schema vertical heat pump

1. Heat pump CALIENTE BLACK EDITION 4S Vertical
2. Pool pump
3. Pool filter
4. Suction
5. Inlet to pool
6. Condensation outlet
7. Inlet hot air
8. Outlet cold air
9. Power 220-240V/50Hz or 380-400V/50Hz


ON OPTION: HEAT PUMP CONNECTION KIT U-CONNECT


U connect option
Schema u connect


The Poolex Universal U-Connect connection kit for heat pumps allows you to link your heat pump directly to your pool without labor or tools. This quick and easy installation does not require a supplementary power supply and avoids the need of a by-pass. Just connect the two provided pipes to your Heat pump Caliente Black Edition 4 SV Vertical ABS and link them to the portable U-Connect unit. Self-priming, the system U-connect stay independent from your filtering system. You can have hot water, faster, without losing heat through the piping system as often is the case in a traditional configuration.

Warranty

7 years for compressor and exchanger 2 years on all other parts

Photos non-contractual
Price incl. VAT

Ask for a free quote heat pump caliente black edition 4sv vertical abs

Other product : Heat pump CALIENTE BLACK EDITION 4SV Vertical ABS
Starting from 3590 eur Including VAT.

Please fill in this form carefully. Our commercial service will handle your request promptly.


UK freephone hotline

Monday Friday 9.00 19.00, Saturday 10.00 18.00




Spare parts order

You are looking for a spare part for «Heat pump CALIENTE BLACK EDITION 4SV Vertical ABS» ?

Please click the button below. Our commercial service will handle your request promptly.
