LIPSI
Recommended retail price 2024 starting from :
10990 €
Our Price starting from :
10990 € Including VAT
Ref. Abatik 014117
Ref. Provider GALA
LIPSI polyester shell pool
Ref. Provider GALA
LIPSI polyester shell pool

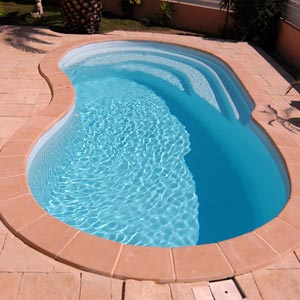

Kidney shaped pool 7,38 x 3,36 x 1,50, flat floor, integrated stairs, coping, filtration system and sealing parts.
LIPSI polyester shell pool
Ref. Abatik 014117 Ref. Provider GALA
Ref. Abatik 014117 Ref. Provider GALA
10990 €
BEIGE coping for LIPSI polyester shell pool
Ref. Abatik 014148 Ref. Provider GALA-BEIGE
Ref. Abatik 014148 Ref. Provider GALA-BEIGE
1634 €
WHITE coping for LIPSI polyester shell pool
Ref. Abatik 014150 Ref. Provider GALA-BLANC
Ref. Abatik 014150 Ref. Provider GALA-BLANC
2444 €
The LIPSI pool perfectly harmonises reduced curves and dimensions to integrate perfectly into your outdoor area.
Supplied ready to install, you can very quickly fully enjoy your pool.
Resistant and easy to install, the LIPSI is economical, easy to maintain pool.
Its wide bench and integrated stairs conjugate easy access and fun times with the LIPSI pool.
The manufacturing materials used for the LIPSI offer perfect resistance, sealing and flexibility.
Monobloc pool moulded from a polyester resin reinforced with glass fibres. A gel coat (a synthetic resin which gives a "gloss" finish) is then applied.
Because of its monobloc structure and quality materials used, the pool shell is perfectly watertight.
This type of pool proves to be highly resistant to an aggressive environment (UV, weather conditions, chemical water treatment ...).
Filtration schema for LIPSIpool
Installation schema for LIPSI pool
The LIPSI is delivered with a sand filter system including :
ESPA SILEN 75 3/4HP pump dimensions
* Maintenance kit supplied : wall brush, telescopic handle, floating tube, net, analysis pouch, brush for manual vacuum.
- Coping
- Free choice of colour (using RAL code)
- Thermal cover
- Pool floor projector
- Electrical box
- Automatic salt treatment system
- pH regulation
Supplied ready to install, you can very quickly fully enjoy your pool.
Resistant and easy to install, the LIPSI is economical, easy to maintain pool.
Its wide bench and integrated stairs conjugate easy access and fun times with the LIPSI pool.
The manufacturing materials used for the LIPSI offer perfect resistance, sealing and flexibility.
Monobloc pool moulded from a polyester resin reinforced with glass fibres. A gel coat (a synthetic resin which gives a "gloss" finish) is then applied.
Because of its monobloc structure and quality materials used, the pool shell is perfectly watertight.
This type of pool proves to be highly resistant to an aggressive environment (UV, weather conditions, chemical water treatment ...).
Filtration schema for LIPSIpool
Model
LIPSI
Dimensions
7,38 x 3,36 x 1,50
Standard colour
Blue
Pump
0,75 HP
Filter diameter
500mm
Installation schema for LIPSI pool
Description
Sealing parts
1
Discharge nozzle
2
Brush adaptor
3
Main drain
4
Prevention drain
5
Projector (on option)
6
Skimmer
Dimensions
Filtration
The LIPSI is delivered with a sand filter system including :
- Pump ESPA SILEN 75 3/4HP
The SILEN impeller centrifugal pump is self-priming, compact and compatible with salt water treatments and has been designed for the filtration of residential pools.
Supplied with 50 mm union connections on the pump's inlet and outlet, a purge cap, large capacity pre-filter complete with a transparent lid featuring an anti-blocking system.
The SILEN also features internal thermal protection.
The body, floor and diffuser of the pump are made from polypropylene reinforced with glass fibre. Its rotor is made from Noryl® reinforced with glass fibres. Supports are made from polyamide reinforced by glass fibre. The motors axis is made from AISI 420. O-rings from NBR. Mechanical seals made from graphite-alumina. L-2521 aluminium motor body. Bobbin impregnated with epoxy varnish.
Supplied with 50 mm union connections on the pump's inlet and outlet, a purge cap, large capacity pre-filter complete with a transparent lid featuring an anti-blocking system.
The SILEN also features internal thermal protection.
The body, floor and diffuser of the pump are made from polypropylene reinforced with glass fibre. Its rotor is made from Noryl® reinforced with glass fibres. Supports are made from polyamide reinforced by glass fibre. The motors axis is made from AISI 420. O-rings from NBR. Mechanical seals made from graphite-alumina. L-2521 aluminium motor body. Bobbin impregnated with epoxy varnish.
ESPA SILEN 75 3/4HP pump dimensions
- ASTRAL VESUBIO 500 sand filter
• Filters constructed using the simultaneous projection of glass fibres and resin.
• Equipped with collectors and diffusers made from inalterable PVC.
• Manometer, air and water purge supplied.
• 6-way valve to effectuate filtration, wash, rinse, recirculate, purge and close.
• Maximum working pressure 2kg/cm².
• Service pressure 3kg/cm².
Dimensions ASTRAL VESUBIO 500 filter
• Equipped with collectors and diffusers made from inalterable PVC.
• Manometer, air and water purge supplied.
• 6-way valve to effectuate filtration, wash, rinse, recirculate, purge and close.
• Maximum working pressure 2kg/cm².
• Service pressure 3kg/cm².
Diameter filter F (in mm)
500
A (in mm)
305
B (in mm)
125
C (in mm)
765
D (in mm)
400
T (in mm)
200
Connections
1 ½"
Filtering recharge (in kg)
95
Dimensions ASTRAL VESUBIO 500 filter
Included equipment
* Skimmer
* Discharge nozzles
* Main drain
* Discharge nozzles
* Main drain
* Brush adaptor
* Filter
* Pump
* Filter
* Pump
* Maintenance kit supplied : wall brush, telescopic handle, floating tube, net, analysis pouch, brush for manual vacuum.
Available options :
- Coping
- Free choice of colour (using RAL code)
- Thermal cover
- Pool floor projector
- Electrical box
- Automatic salt treatment system
- pH regulation
Warranty
10 years on watertightness
2 years on other parts
Photos non-contractual
Price incl. VAT
