OLBIA

Olbia polyester shell pool
Recommended retail price 2017 starting from :
10990 €
Our Price starting from :
10990 € Including VAT
Ref. 010124
Olbia 5.25x3.25 polyester shell pool with sand filter
Rectangular polyester pool shell with gently sloped floor,
Roman stairs and hydromassage bench (depending on model)
In stock
Olbia 5.25x3.25 polyester shell pool with sand filter
Ref. 010124
EUR 10990
10990 €
Order Free quote
Olbia 6.15x3.25 polyester shell pool with sand filter
Ref. 010128
EUR 11490
11490 €
Order Free quote
Olbia 6.30x3.25 polyester shell pool
Ref. 010132
EUR 11990
11990 €
Order Free quote
Olbia 7.20x3.25 polyester shell pool with sand filter
Ref. 010136
EUR 12490
12490 €
Order Free quote
White coping for Olbia 5.25x3.25 polyester shell pool
Ref. 010123
EUR 810
810 €
Order Free quote
White coping for Olbia 6.15x3.25 polyester shell pool
Ref. 010127
EUR 1090
1090 €
Order Free quote
White coping for Olbia 6.30x3.25 polyester shell pool
Ref. 019314
EUR 1090
1090 €
Order Free quote
White coping for Olbia 7.20x3.25 polyester shell pool
Ref. 010135
EUR 1290
1290 €
Order Free quote
Beige coping for Olbia 5.25x3.25 polyester shell pools
Ref. 019310
EUR 810
810 €
Order Free quote
Beiges coping for Olbia 6.15x3.25 polyester shell pools
Ref. 019313
EUR 1090
1090 €
Order Free quote
Beige coping for Olbia 6.30x3.25 polyester shell pools
Ref. 010131
EUR 1090
1090 €
Order Free quote
Beige coping for Olbia 7.20x3.25 polyester shell pool
Ref. 019315
EUR 1290
1290 €
Order Free quote

The range of OLBIA pools


The range of OLBIA pools is composed of 4 models of rectangular pools, varying in size between 5 x 3 m to 7 x 3 m.
2 models feature stairs and hydromassage areas, dimensioned for use by 2 to 4 persons.

Each model is factory moulded as a monobloc with a quality finish. The manufacturing materials used offer perfect resistance, sealing and flexibility.
The OLBIA is available with sand or cartridge filtration depending on your preference and volume of pool water.

Monobloc pool moulded from a polyester resin reinforced with glass fibres. A gel coat (a synthetic resin which gives a "gloss" finish) is then applied.

Because of its monobloc structure and quality materials used, the pool shell is perfectly watertight.
This type of pool proves to be highly resistant to an aggressive environment (UV, weather conditions, chemical water treatment ...).


.

Different types of pools


OLBIA 530


The smallest version, perfect for installation in a smaller area or terrace.

Olbia 530 polyester shell pool
OLBIA 530
Dimensions Olbia 530 polyester shell pool
Dimensions in mm

OLBIA 615


A perfect combination of the classic model incorporating a hydromassage area in the featured stairs.

Olbia 615 polyester shell pool
OLBIA 615
Dimensions Olbia 615 polyester shell pool
Dimensions in mm

OLBIA 630


The perfect balance between straight line design and rounded angles optimising the available inner pool space without stairs.

Olbia 630 polyester shell pool

OLBIA 630
Dimensions Olbia 630 polyester shell pool
Dimensions in mm

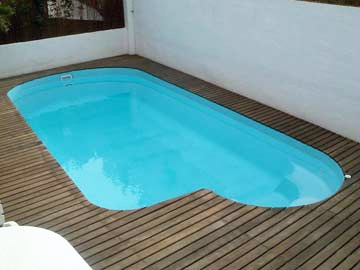

OLBIA 720


As the OLBIA 630, complemented by stairs and hydromassage bench.

Olbia 720 polyester shell pool
OLBIA 720
Dimensions Olbia 720 polyester shell pool
Dimensions in mm

Features


Shell modelOLBIA 530OLBIA 615OLBIA 630OLBIA 720
Dimensions5 x 3 x 1,18-1,60 m5,90 x 3 x 1,07-1,60 m6,10 x 3 x 1,18-1,70 m7,00 x 3 x 1,07-1,70
Volume21 m³24,7 m³26,2 m³27,5 m³
Gradient8,4%8,4%8,5%8,5%
Weight in Kg345510410460
Pump0,75 HP0,75 HP0,75 HP0,75 HP
Diameter of filter500500500500

Filtration


The range of OLBIA pools are supplied with a sand filtration system including :

ESPA SILEN 75 3/4 HP pump


ESPA SILEN  pump
The SILEN impeller centrifugal pump is self-priming, compact and compatible with salt water treatments and has been designed for the filtration of residential pools.
Supplied with 50 mm union connections on the pump's inlet and outlet, a purge cap, large capacity pre-filter complete with a transparent lid featuring an anti-blocking system.
The SILEN also features internal thermal protection.
The body, floor and diffuser of the pump are made from polypropylene reinforced with glass fibre. Its rotor is made from Noryl® reinforced with glass fibres. Supports are made from polyamide reinforced by glass fibre. The motors axis is made from AISI 420. O-rings from NBR. Mechanical seals made from graphite-alumina. L-2521 aluminium motor body. Bobbin impregnated with epoxy varnish.

ESPA SILEN 75 3/4Hp pump capacity
Dimensions ESPA SILEN 75 3/4 HP pump

ASTRAL VESUBIO 500 sand filter


ASTRAL VESUBIO 450 sand filter
Dimensions ASTRAL VESUBIO 450 side sand filter
• Filters constructed using the simultaneous projection of glass fibres and resin.
• Equipped with collectors and diffusers made from inalterable PVC.
• Manometer, air and water purge supplied.
• 6-way valve to effectuate filtration, wash, rinse, recirculate, purge and close.
• Maximum working pressure 2kg/cm².
• Service pressure 3kg/cm².

Diameter filter F (in mm)
500
A (in mm)
305
B (in mm)
125
C (in mm)
765
D (in mm)
400
T (in mm)
200
Connections
1 ½"
Filtering medium (in kg)
95

Dimensions ASTRAL VESUBIO 500 sand filter

Included equipment


* Skimmer
* Discharge nozzles
* Main drain
* Brush adaptor
* Trusses
* Filter
* Pump

General schema of polyester shell pool


Installation schema Fuerteventura polyester shell pool

Manufacturing process


Our pools are manufactured with the greatest care to ensure the long lifespan and high-quality of your pool.
The gel-coat is resistant to weather conditions and UV rays, constituting a performant finishing coat for your pool. Watertight and resistant, the gel-coat is easy to maintain, its smooth surface can help to avoid the development of algae on pool walls.

Gel coat application
Application of gel coat
Polyester shell mould
Moulding

Positioning of reinforcing trusses on polyester shell
Positioning of reinforcing trusses
Unmolding of polyester shell pool
Unmolding of shell


Delivery


To ensure optimal installation conditions, follow the below installation process

Excavation of pool cavity.
Excavaition
Gravel bed for polyester shell pool
Gravel bed

Positioning of polyester shell pool
Delivery of pool
Backfill around polyester shell pool
Backfill

Reinforcing concrete belt
Reinforcing concrete belt installed around pool
Installation of pool coping
Installation of coping

Available colours


Available colours
1- Blue
2- White
3- Pale grey
4- Beige
5- Green
6- White blue
7- White green
8- Mottled blue
9- Mottled white

Available options


- Coping
- Balneotherapy
- Bubble cover
- Countercurrent unit
- Pool floor lighting
- Salt water treatment

Warranty

10 years on sealing
2 years on other parts

Photos non-contractual
