PERSEO SOLAR above ground pool shutter

Perseo solar
Recommended retail price 2017 :
3990 €
Our Price :
2340 € Including VAT
Ref. 017577
PERSEO Solar motorised pool shutter with limit management
EUR 2340.00
Automatic shutter for pools up to 11 x 5m,
Powered by solar power,
Motor stored in the axis featuring limit management system and switchable mechanics
Fast and easy installation
  • Complies with standard NF P90-308
In stock
The Perseo Solar shutter ensures a secure pool without undertaking extensive installation labour. Ideal for existing pools, using a motor powered by the sun's energy. This simplifies the installation requirements as no cables are needed to provide the shutters power supply.

This security shutter is compatible to rectangular pools with inner dimensions of 11 x 5m (not including stairs).

The Perseo solar allows the conservation of water temperature, therefore, lengthening the swimming season.
Pool water evaporation is reduced and time spent cleaning the pool is shortened. Your pool water remains cleaner for longer and less water chemical treatment is required.
Opaque slats reduce photosynthesis, the main cause of algae development and proliferation.


Perseo solar shutter

Inner dimensions of pool
Including VAT*
3m x 3m
2340 € incl VAT
6m x 3m
2730 € incl VAT
7m x 3,5m
2980 € incl VAT
8m x 4m
3260 € incl VAT
9m x 4,5m
3570 € incl VAT
10m x 5m
3890 € incl VAT
11m x 5m
4080 € incl VAT

* This price includes : departure from manufacturer, with white slats and solar power.

If your pool dimensions are not repersented in the above table, contact us today to get your individual quote : International number + 33 475 802 962 or our freephone lines France : 0800 800 099,
Belgium : 0800 14 044, Switzerland : 0800 001 941, UK : 0808 238 60 75, Italy : 800 986 375 or Spain : 800 300 103

Operation


The motor is powered using two batteries which are charged by a high-performance photovoltaic panel.

When fully charged, the battery can provide approximately 60 opening / closing cycles of the shutter. (for a pool measuring 8 × 4m with stairs).

Advantages of the Perseo solar


This automatic shutter powered by the sun's energy allows you to cover your pool without undertaking extensive installation labour. By means of its photovoltaic panel, this shutter operates in a totally independent manner.

Opening and closing can be effectuated by one person alone by means of the key connector situated on the leg of the shutter. A maximum of three minutes is sufficient (depending on your pool size) to roll or unroll your shutter.

Limit management allows the shutter to open and close automatically (by maintaining the key connector active conform to the norm NF P90-308).

The shutters locking device is ensured by the anti-lifting system, offering optimal security.
In the case of electrical failure, the axis of the shutter is switchable, so your can secure your pool.

The Perseo solar is delivered with all the equipment needed to install the shutter and put into use:
- 2 300/100th aluminium white lacquered legs, photovoltaic panel and 3 position key contact.
- Leg fixations (Coach bolts and screws with plugs)
- 1 rolling axis made from anodised aluminium
Depth 2,2mm, Ø126,4mm for pools lesser than 4,5m in width
Depth 4mm, Ø130mm for pools greater than 4,5 in width
- 2 drive bearings made from high-density Polyethylene, equalising the carrying weight of the shutter cover on the leg terminals as not to force the shutters motor needlessly.
- 1 adjusting ring
- 1 12V electric motor contained in the axis of the shutter with adjustable limit management mechanics.
- 2 12V Lithium batteries (5-year lifespan)
- 1 220v/12v battery charger with luminous signal
- 1 shutter cover composed of buoyant, white slats (beige or grey available on option) featuring 25mm finishing fins.
- Axis / cover liaison straps
- 1 anti-lifting system with ABS flanges + straps + and wall plates to anchor to pool wall (or pool surround)
- 1 instruction booklet
- 1 packaging.
Spacer20
Spacer20

Perseo solar panel

The leg terminal of the Perseo solar shutter


This shutter features two white lacquered aluminium 300/100th leg terminals with a photovoltaic panel and a 3 position connector key.

The inclination of the shutters legs is adjustable by screws and avoids the need of surfacing a shaped or non-level pool surround (1).

Two drive bearings are fixed to the leg terminals of the shutter, supporting the axe of the shutter. The weight of the axis and shutter cover does not force on the axis of the motor, lengthening its lifespan. (2).

In warm weather conditions, the axis of the shutter can dilate and increase in volume. To avoid friction, an adjustment ring is positioned on the drive bearing on the free side of the axis to compensate the effects of dilation. (3).
Spacer20

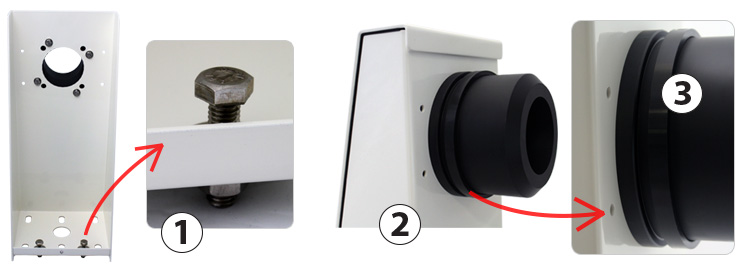

Detail of Perseo solar leg terminals

Details Perso solar

Leg terminals
Aluminium 300/100th
Colour
White
Adjustment of panel
Using screws
Dimensions L x w x H
182 x 147 x 425mm
Outer panel
Removable in white lacquered aluminium

Details of slats Perseo solar


The slats of the shutter conform to the norm NF P90-308.

The opacity of the slats reduces the phenomenon of photosynthesis and avoids the apparition of algae.

Each slat is composed of compartments filled with air to ensure buoyancy and limit the loss of pool water heat.

Caps are firmly stuck to the extremity of each slat to guarantee sealing and buoyancy.

Standard removable fins, measuring 25mm (Standard size) ensure the finish of each slat and can be replaced by fins of different sizes : 15mm (Small) or 35mm (XL).

This exclusive, patented system allows an assembly of slats by sliding easily to facilitate installation and maintenance or the shutters cover.
Detail perseo slats
Caps perseo

Slats
PVC Calcium/zinc
Treatment
Anti-stain and anti-UV
Width of slats
69mm
Depth of slats
13mm
Available colours
White. Sand or grey on option.
Guarantee
3 years
Stair option
On quote, Systematic finish
Spacer20
Available colours perseo solar

Assembly of shutter cover slats


The assembly of the shutter cover is completed by either :

- using a clicking method

To click one slat to the other, commence by engaging the lower hook to the "male"side of the right-hand slat into the "female" side of the left-hand slat (fig.1 et fig.2).

- Create a to and fro movement till the two slats "click" together completely (fig.3 and fig.4).

Assembly method slats

- Using a sliding method

To slide one slat into the other, simply remove the caps and slide the slats together.

Sliding assembly method

Patented assembly system
- Creating fast and easy assembly essentially for long slat lengths
- Limits tedious manipulations
- Facilitates the removal of a damaged slat.

When ordering, ask for every third cap not to be fitted. This gains time during assembly.

Stair cuts (optional)


When the shutter is in position on the width of the pool, it can be adapted to various stair shapes : rectangular, (1), trapeze (2), roman (3), semi-circular(4) or free form (5) (after consultation with us)

Available stair cuts

Stair cuts are optional.

Shutter skis


Positioned on the final two slats, the skis assist the shutters orientation and ensure correct operation in-situ, on the pool water.

The holes for the ski are pre-drilled by the manufacturer.
Shutter skis

Installation of shutter


The surface on which the shutter legs will be installed must have 182 x 147mm of available space on each side of the pool to fit the coach bolts.

The surround cut


On existing pools that have a pool surround a cut of 35cm needs to be completed to allow the passage of the shutter.

The shutters axis


The shutters axis must be in a level position perpendicular to the pool.

The axis is :
In line to the edge of the pool surround for sharply angled pools (a).
at the end of a RADIUS on pools with rounded angles(b).
Pool surround cut
Axis Perseo manual

The two shutter legs must be anchored in a level, horizontal position against the shutters axis. If needed, the legs can be inclined by using the supplied bolts.

To compensate for the effects of dilatation on the axis a margin of 5mm should remain after adjustment.
- between the adjusting ring and the drive bearing on the free side of the axis (1),
- between the adjusting ring and the axis on the free side (1),
- between the axis and the drive bearing on the motor side (2).

We recommend that you do not proceed with the floor fixations till you have totally unrolled the shutter to check its position and adjust.
Adjustable ring

The motorisation of the shutter is switchable allowing manual operation of the shutter. If this is the case, the limit management system must be adjusted when normal operation is put back into use.

Limit management


The mechanical limit management system is adjusted using the supplied specific key .

Arrows indicate the shutters direction of movement.

By turning -
+ You add to the surface area programmed to be covered by the shutter
- You reduce to the surface area programmed to be covered by the shutter
Limit management system

Spacer20Adjusting the limit management system of the Perseo solar

The shutters power source


Cabling for Perseo Solar
The power source for the motor is provided by two batteries powered by the photovoltaic panel.

Direct exposition to the sun is required for at least 2 hours per day.

The Perseo solar is pre-cabled. Once the motor wires are cabled only the dominos need to be connected.

1. Motor cable
2. Batteries
3. 3 position key contact
4. Photvoltaic panel
5. Dominos

Security system


The Perseo solar is equiped with an anti lifting device conform to norm NF P90-308. This system is composed of ABS flanges + Straps + wall anchoring brackets.

The number of anti-lifting devices needed depends on the width of the pool.

Width of pool
Number of anti-lifting devices
Up to 3 metres
4
3 to 5 metres
6

Available colours


Three colours are available : White (beige or grey available on option).

Pushlock colours
Spacer20
Wall anchoring brackets
Three models are available, depending on the pool structure :

Fixed on pool wall with screw plugs for concrete, concrete blocks, fibreglass (with concrete belt) or any other type of pool with a minimum thickness of 8mm.
Screw version
Sealed on pool wall (on option) for concrete pools under construction.
Sealed pushlock
Cavalier version (on option) for concrete, galvanised panel, polyethene panels and fibreglass pools.
Caviler pushlock


Locking system Perseo

When you close the shutter, the trigger clips into the support.
Unlocking system

To open, just push the button, lifting the trigger simultaneously to free the shutter before rolling it on its axis.

Users precautions


This shutter can be used during all seasons. Warning, do not manipulate in case of frost.

For an optimal operation of the shutter, we advise you to conserve the water level of the pool water 10cm lower than the pool border.

During the winterizing period, we advise you to keep the water at the same level.

Packing and transport


To ensure a delivery in the best possible conditions, our transport service will contact you to arrange a delivery time.

It is essential to have 2 persons to reception your pool shutter.
Perseo packing

Warranty

2 years on mechanics
3 years on slats
2 years on photvoltaic panel
1 year on batteries

Photos non-contractual
