PORTO CERVO

PORTO CERVO polyester shell pool
Recommended retail price 2017 starting from :
10990 €
Our Price starting from :
10990 € Including VAT
Ref. 010112
Porto Cervo 6x3.80 polyester shell pool with sand filter
Oval polyester shell with hydromassage area,
Semi-circle interior and stairs, gently sloped floor
Length ranges from 6m to 9,5m
In stock
Porto Cervo 6x3.80 polyester shell pool with sand filter
Ref. 010112
EUR 10990
10990 €
Order Free quote
Porto Cervo 7.75x3.90 polyester shell pool with sand filter
Ref. 010114
EUR 12990
12990 €
Order Free quote
Porto Cervo 9.50x4.05 polyester shell pool with sand filter
Ref. 010116
EUR 15990
15990 €
Order Free quote
White pool coping for Porto Cervo 6x3.80 polyester shell pool
Ref. 010106
EUR 1490
1490 €
Order Free quote
White pool coping for Porto Cervo 7.75x3.90 polyester shell pool
Ref. 010107
EUR 1890
1890 €
Order Free quote
White pool coping for Porto Cervo 9.50x4.05 polyester shell pool
Ref. 010108
EUR 1990
1990 €
Order Free quote
Beige coping for Porto Cervo 6x3.80 polyester shell pool
Ref. 019316
EUR 1490
1490 €
Order Free quote
Beige coping for Porto Cervo 7.75x3.90 polyester shell pool
Ref. 019317
EUR 1890
1890 €
Order Free quote
Beige coping for Porto Cervo 9.50x4.05 polyester shell pool
Ref. 019318
EUR 1990
1990 €
Order Free quote

The PORTO CERVO pool


The PORTO CERVO 600, 775 and 950 models combine elegance and comfort. The pool's semi-circular design features rounded curves and an integrated hydrotherapy area to its bench (depending on model).

The inner semi-circular shape allows you to prolong your pool surround or to integrate a small landscaped area.
The monobloc structure coupled with the quality of manufacturing material guarantees perfect watertightness, flexibility and resistance.
Each model is available with sand or cartridge filtration depending on your preference and pool water volume.

Monobloc pool moulded from a polyester resin reinforced with glass fibres. A gel coat (a synthetic resin which gives a "gloss" finish) is then applied.
Because of its monobloc structure and quality materials used, the pool shell is perfectly watertight.
This type of pool proves to be highly resistant to an aggressive environment (UV, weather conditions, chemical water treatment ...).


.

Pool types


PORTO CERVO 600


Delightful compact free-form pool, ideal for embellishing a small landscaped area, creating a calming environment.
Optimised, integrated stairs to the pool structure ensure that no swimming space is lost.
Dimensions of 5,70 x 3,60m with gentle slope (6%), and depth of 1,15m to 1,50m.

PORTO CERVO 600 polyester shell pool
PORTO CERVO 600
Dimensions PORTO CERVO polyester shell pool
Spacer20
Dimensions in mm

PORTO CERVO 775


Pool with standard dimensions featuring aquatic bench to enjoy the sun whilst in your pool water! A balneo unit can be integrated into the pool shell relaxation area.
Dimensions 7,50 x 3,85m with gentle slope (5%), depth 1,20m to 1,60m

PORTO CERVO 775 polyester shell pool
PORTO CERVO 775
Dimensions PORTO CERVO 775 polyester shell pool
Spacer20
Dimensions in mm

PORTO CERVO 950


The largest version in the PORTO CERVO range, offering hydromassage to the whole family. A balneo unit is integrated to the relaxation area.
Dimensions 9,20 x 3,60mwith gentle slope (6%), depth 1,15m to 1,71m.

PORTO CERVO 950 polyester shell pool
PORTO CERVO 950

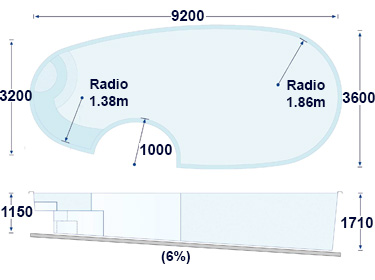

Dimensions PORTO CERVO 950 polyester shell pool
Spacer20
Dimensions in mm

Features of the PORTO CERVO pool


Shell modelPORTO CERVO 600PORTO CERVO 775PORTOCERVO 950
Dimensions5,70 x 3,60 x 1,15-1,50 m7,50 x 3,85 x 1,20-1,60 m9,20 x 3,20-3,60 x 1,15-1,71 m
Volume27,1 m³38 m³47 m³
Gradient6%5%6%
Weight in Kg433766904
Pump0,75 HP0,75 HP1 HP
Diameter of filter500500600

Filtration for PORTO CERVO models 600 and 775


PORTO CERVO 600 and 775 pools are supplied with a sand filtration system including :

ESPA SILEN 75 3/4HP pump


ESPA SILEN  pump
The SILEN impeller centrifugal pump is self-priming, compact and compatible with salt water treatments and has been designed for the filtration of residential pools.
Supplied with 50 mm union connections on the pump's inlet and outlet, a purge cap, large capacity pre-filter complete with a transparent lid featuring an anti-blocking system.
The SILEN also features internal thermal protection.
The body, floor and diffuser of the pump are made from polypropylene reinforced with glass fibre. Its rotor is made from Noryl® reinforced with glass fibres. Supports are made from polyamide reinforced by glass fibre. The motors axis is made from AISI 420. O-rings from NBR. Mechanical seals made from graphite-alumina. L-2521 aluminium motor body. Bobbin impregnated with epoxy varnish.

ESPA SILEN 75 3/4Hp pump capacity
Dimensions ESPA SILEN 75 3/4 HP

ASTRAL VESUBIO 500 sand filter


ASTRAL VESUBIO 450 sand filter
ASTRAL VESUBIO 500 sand filter dimensions
• Filters constructed using the simultaneous projection of glass fibres and resin.
• Equipped with collectors and diffusers made from inalterable PVC.
• Manometer, air and water purge supplied.
• 6-way valve to effectuate filtration, wash, rinse, recirculate, purge and close.
• Maximum working pressure 2kg/cm².
• Service pressure 3kg/cm².
Spacer20
F Diameter filter (in mm)
500
A (in mm)
305
B (in mm)
125
C (in mm)
765
D (in mm)
400
T (in mm)
200
Connections
1 ½"
Filtering recharge (in kg)
95

ASTRAL VESUBIO 500 sand filter dimensions

PORTO CERVO 950 filtration system


The PORTO CERVO 950 is delivered with a sand filtration system that includes :

ESPA SILEN 100 1HP pump


ESPA SILEN  pump
The SILEN impeller centrifugal pump is self-priming, compact and compatible with salt water treatments and has been designed for the filtration of residential pools.
Supplied with 50 mm union connections on the pump's inlet and outlet, a purge cap, large capacity pre-filter complete with a transparent lid featuring an anti-blocking system.
The SILEN also features internal thermal protection.
The body, floor and diffuser of the pump are made from polypropylene reinforced with glass fibre. Its rotor is made from Noryl® reinforced with glass fibres. Supports are made from polyamide reinforced by glass fibre. The motors axis is made from AISI 420. O-rings from NBR. Mechanical seals made from graphite-alumina. L-2521 aluminium motor body. Bobbin impregnated with epoxy varnish.

Dimensions ESPA SILEN 100 1HP
Dimensions ESPA SILEN 100 1HP pump

ASTRAL VESUBIO 600 sand filter


ASTRAL VESUBIO 450 sand filter
Dimensions ASTRAL VESUBIO 450 side sand filter
• Filters constructed using the simultaneous projection of glass fibres and resin.
• Equipped with collectors and diffusers made from inalterable PVC.
• Manometer, air and water purge supplied.
• 6-way valve to effectuate filtration, wash, rinse, recirculate, purge and close.
• Maximum working pressure 2kg/cm².
• Service pressure 3kg/cm².

Spacer20
F Diameter filter (in mm)
600
A (in mm)
325
B (in mm)
125
C (in mm)
865
D (in mm)
400
T (in mm)
200
Connections
1 ½"
Filtering medium (in kg)
148

Dimensions ASTRAL VESUBIO 600 filter


Included equipment


* Skimmer
* Discharge nozzles
* Main drain
* Brush adaptor
* Reinforcing trusses
* Filter
* Pump

General schema


Installation schema Fuerteventura polyester shell pool

Manufacturing process


Our pools are manufactured with the greatest care to ensure the long lifespan and high-quality.
The gel-coat is resistant to weather conditions and UV rays, constituting a performant finishing coat for your pool. Watertight and resistant, the gel-coat is easy to maintain, its smooth surface can help to avoid the development of algae on pool walls.

Gel coat application
Application of gel coat
Polyester shell mould
Moulding

Positioning of reinforcing trusses on polyester shell
Positioning of reinforcing trusses
Unmolding of polyester shell pool
Unmolding

Delivery


To ensure optimal installation conditions, follow the below installation process

Excavation of pool cavity.
Excavaition
Gravel bed for polyester shell pool
Gravel bed

Positioning of polyester shell pool
Delivery of pool
Backfill around polyester shell pool
Backfill

Reinforcing concrete belt
Reinforcing concrete belt installed around pool
Installation of pool coping
Installation of coping

Available colours


Available colours
1- Blue
2- White
3- Pale grey
4- Beige
5- Green
6- White blue
7- White green
8- Mottled blue
9- Mottled white

Available options


- Coping
- Balneotherapy
- Bubble cover
- Countercurrent unit
- Pool floor lighting
- Salt water treatment

Warranty

10 years on watertightness
2 years on other parts
