Pump+sand filter pack Caliente for in-ground pool

filter and pump Caliente
Recommended retail price 2017 starting from :
558.20 €
Our Price starting from :
409 € Including VAT
Ref. 019243
Caliente filtration pack pump trend 3/4hp single-phase + filter skypool Top 9m3/hour
Pack including pump and sand filter SKYPOOL 9 m3/h and 14m3/h for pools with a maximum volume of 60m3
  • Delivery
Caliente pump and filter pack Pump trend 3/4 hp single phase + skypool Side filter 9m3/hour
Ref. 019244
EUR 409
409 €
Order Free quote
Caliente filtration pack pump trend 3/4hp single-phase + filter skypool Top 9m3/hour
Ref. 019243
EUR 409
409 €
Order Free quote
Caliente filtration pack pump trend 1 hp single-phase + filter skypool Top 14m3/hour
Ref. 019245
EUR 429
429 €
Order Free quote
Caliente filtration pack pump trend 1 hp single-phase + filter Skypool Side 14m3/hour
Ref. 019246
EUR 429
429 €
Order Free quote
Caliente pump + filter pack
Caliente TOP


The pack includes:

Pump CALIENTE TREND


The pump Caliente Trend is self-priming and compatible with all water treatments, (salt, chlorine, bromine, UV, ozone...). Very resistant, they are entirely made from glass fiber reinforced polypropylene.
They have a pre-filter with large capacity. The transparent lid gives a clear view to assess the clogging level of the basket.
A raised base with 4 pre-drilled holes facilitates floor anchoring.
The CALIENTE pumps have a very low noise level in operation. Their motor is positioned on a stainless steel shaft AISI-420, assuring a good resistance to corrosion and a longer lifespan.
The suction and discharge connections measure 1½" (50mm) in diameter.
Pump Caliente Trend<br />

Lid Caliente TREND

Spacer20Spacer20Spacer20Transparent lid
Pre filter basket Caliente TREND

Spacer20Removable pre-filter basket
Threaded connector<br />

Spacer20Spacer20Spacer20Spacer20 Threaded connector 1½"

Technical features


Shared technical features


Type of pump
Self-priming
Motor
2 pole, Asynchronous motor
Motor rotation speed
2850 rpm
IP protection index of motor
IP 55
Insulation classification
F
Motor shaft
stainless steel AISI-420
Connections
threaded connector Ø1"½ (50mm)

Features


Model0,75hp single-phase1hp single-phase1cv three-phase
Capacity0,75hp / 0,55kW1hp / 0,75kW1hp / 0,75kW
SupplySingle-phaseSingle-phaseThree-phase
Water flow11,5m³/h14m³/h14m³/h
Net weight9,3kg10,4kg10,4kg

Dimensions


Dimensions pump Caliente TREND

ABCDEFGHIJKL
550238160345225262170330Ø1½" (50mm)Ø1½" (50mm)Ø10205


Dimensions in mm.

Output curve chart


Pump output curve chart Caliente TREND

Views filtration pump Caliente TREND

Delivered with threaded connectors.

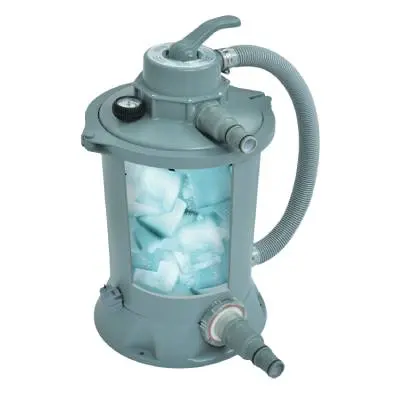

Sand filters SKYPOOL Top & Side



Filters SKYPOOL Side in detail


• Body of filter made from non-malleable plastic, resistant to chemical treatment, seasonal and atmospheric variations.

• New generation valve allows you to select from the following operational modes: Wash, rinse, filter, recirculate, purge, close and winterize (fast connectors 1.1 / 2")

• Transparant lid gives a clear view to the filter, easily assessing the clogging level of the basket.

• High-quality internal diffuser, optimising the distribution of water on the sand surface.

• Internal connectors, 1.1/2" giving a better performance.

• Manual air purge valve for the air filter.

• Manual air purge valve integrated into the body of the filter facilitating purge and limiting sand loss.

• The multi-arm collector guarantees regular water circulation and an efficient wash cycle.

• Manometer

Three union connections are included in the pack
Pack filtre skypool side


SKYPOOL Top filters in detail


• Body of filter made from non-malleable plastic, resistant to chemical treatment, seasonal and atmospheric variations.

• "TOP", (situated on top of filter) 6-way valve, with fast connectors, 1 1/2" and selection handle to select from the from the following operational modes: Wash, rinse, filter, recirculate, purge, close and winterize

• Sight glass allows easy assessment of the waters cleanliness (Skypool Top).

• 1.1/2" internal connectors giving better performance.

• Manual air purge valve for air filter

• Manual air purge valve integrated into the body of the filter facilitating purge and limiting sand loss

• The multi-arm collector guarantees a regular water circulation and an efficient wash cycle.

• Manometer

Three union connections are included in the pack
Pack filtre skypool TOP
Technical features SKYPOOL Top & Side filters

ModelSkyPool Top 9 m³/hSkyPool Side 9 m³/hSkyPool Top 14 m³/hSkyPool Side 14 m³/h
Pool volumeUp to 40m³Up to 40m³Up to 60m³Up to 60m³
Diameter500mm500mm600mm600mm
Net weight13kg13kg14kg14kg
Water flow9m³/h9m³/h14m³/h14m³/h
Maximum pressure2 bar2 bar2 bar2 bar
Connections1.1/2"1.1/2"1.1/2"1.1/2"
Filter recharge100kg100kg150kg150kg


Water is sucked by the pool's main drain and skimmers.
It is necessary to wash the filter regularly as the sand is embedded with impurities that hinder the correct circulation of water. When the filter pressure is above 1,3 kg/cm2, it is necessary to wash the sand recharge in the filter tank.

Warranty

pump 2 years
Filter 2 years

Photos non-contractual
