Complete sealing part kit for liner pools

Sealing parts - complete kit
Recommended retail price 2017 starting from :
385.20 €
Our Price starting from :
319 € Including VAT
Ref. 022249
Sealing part kit for liner pools 7m x 3m
In stock
Sealing part kit for liner pools 7m x 3m
Ref. 022249
EUR 319
319 €
Order Free quote
Sealing part lit for liner pools 8m x 4m
Ref. 022250
EUR 369
369 €
Order Free quote
Sealing part kit for Liner pools 10m x 5m
Ref. 022251
EUR 559
559 €
Order Free quote
Complete kits including all essential sealing parts for pools. Made from non-regenerated ABS with anti-UV treatment. For pools with liner.

What is included in the kit?


Rectangular skimmer with large opening


Easy to install and fitted from the exterior without using glue.

Featuring a screw on lid cover and an overflow outlet (to be drilled out).

Including studs on which to place a spirit level.

The skimmer inlet is at a higher level, allowing a waterline closer to the pool border.

Equally equipped with a noise-reducing shutter with under water clapping system.

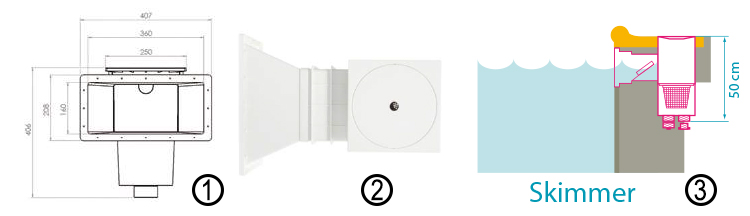

Dimensions of skimmer (in mm)
Large inlet skimmer

Schema skimmer
Front view (1), Over view (2), Installation schema skimmer (3).

Discharge nozzle


The supplied discharge nozzles feature an inner mechanism that facilitates screwing and unscrewing. Particularly esthetic, the discharge nozzles have no visible screws.

Discharge nozzle schema

Dimensions in mm (1), Installation schema of discharge nozzle (2).

Brush adaptor



Brush adaptor schema

Dimensions in mm (1), Installation schema of brush adaptor (2).

Main drain


The main drain is easy to install and features a fitting system that accommodates iron rods. Delivered with a 63/50 reducer.

No screws are visible. Clip locks facilitate installation.

The main drain has a practical design that does not include high edges. This allows the pool cleaner to operate without difficulty.

Dimensions of the main drain (in mm)
Main drain kit

Schema main drain

LED projector


The LED projector is distinguished by its flat front plate and features an ultra flexible cable of 2,10m (2 x 4mm²) used and designed for constant immersion (class AD8).
The junction box liaison uses flexible Glanaflex stuck cable tubing and internal water tightness is ensured by the supplied cable gland.

Dimensions of projector
Dimensions lighting projector
300w lighting projector


LED bulb characteristics

SeaMAID bulbs diffuse an intense beam that valorises your pool whilst making economies

The bulb's standard dimensions indicate the SeaMAID lamp can be installed without any particular manual work in any standard PAR56 alcove to replace a classic, 300w incandescent pool bulb.

SeaMAID uses a renowned, active Research & Development department that is equipped with a unique testing lab : A subaquatic measurement device designed in collaboration CSTB, Nantes, France and the National Testing Laboratory (Laboratoire National d'Essais -LNE). Using this device, SeaMAID can precisely measure the true lumen of its lighting systems in their operational environment as requested in the European regulation 1194.

The test results are incontestable and correspond to the reality of operational lighting in an aquatic environment.
Seamaid LED pool projector

PAR56 Lamp, 30 LED



Colour temperatureRa (IRC*)Difussion angleNominal beamFuntional beam (angled at 120°)
Cold white 75000K88120°1430 lumens1170 lumens


*CRI : Colour Rendering Index.

Junction box


The junction box has two cable exits, one being a press cover that you can open only if you choose to. Easy to install using a fitting system that accommodates iron rods.

The inner sealing and water protection is ensured by the supplied cable gland. Connections are made using the supplied 16mm2 domino.

The lid is sealed by the use of an o-ring.

The liaison to the junction box is provided by a flexible Glanaflex cable duct.

Junction box

Dimensions in mm

Wall feed through


The wall feed through can be sectioned depending on the thickness of the pool wall.

Inlet 50mm to be glued or 2" to be screwed.

Dimensions in mm
Feed through

Number of parts depending on pool dimensions


Dimensions of pool7 x 3m8 x 4m10 x 5m
Skimmer122
Discharge nozzles224
Brush adaptor111
Main drain111
LED projector112
Junction box112
Wall feed through335

Operational schema of technical shelter


Schema technical house

Skimmer (1), Main drain (2), Brush adaptor (3), Filtration pump (4), Filter (5), Booster pump (optionnel) (6), Discharge nozzles (7), Projector (8).

Photos non-contractual
