STA-RITE 5P6R
Recommended retail price 2024 starting from :
938 €
Our Price starting from :
728 € Including VAT
Ref. Abatik 000386
Ref. Provider 48560
STA RITE 5P6RD-1, 3/4HP pump, 14m³/h, single-phase, soft water
Ref. Provider 48560
STA RITE 5P6RD-1, 3/4HP pump, 14m³/h, single-phase, soft water
Self-priming pump,
Connector 63 mm in diameter,
1/4 turn lid
High water flow
Connector 63 mm in diameter,
1/4 turn lid
High water flow
- Single-phase
- Three-phase
In stock
STA RITE 5P6RD-1, 3/4HP pump, 14m³/h, single-phase, soft water
Ref. Abatik 000386 Ref. Provider 48560
Ref. Abatik 000386 Ref. Provider 48560
728 €
STA RITE 5P6RD-3, 3/4HP pump, 14m³/h, three-phase, soft water
Ref. Abatik 000387 Ref. Provider 48564
Ref. Abatik 000387 Ref. Provider 48564
699 €
STA RITE 5P6RE-3, 1HP pump 17m³/h, three-phase, soft water
Ref. Abatik 000389 Ref. Provider 1414976
Ref. Abatik 000389 Ref. Provider 1414976
519 €
STA RITE 5P6RF-1, 1.5HP pump, 22m³/h, single-phase, soft water
Ref. Abatik 000390 Ref. Provider 48562
Ref. Abatik 000390 Ref. Provider 48562
619 €
STA RITE 5P6RF-3, 1.5HP pump, 22m³/h, three-phase, soft water
Ref. Abatik 000170 Ref. Provider 48566
Ref. Abatik 000170 Ref. Provider 48566
859 €
STA RITE 5P6RG-1, 2HP pump, 26m³/h, Single-phase, soft water
Ref. Abatik 000391 Ref. Provider 48563
Ref. Abatik 000391 Ref. Provider 48563
619 €
STA RITE 5P6RG-3, 2HP pump, 26m³/h, three-phase, soft water
Ref. Abatik 000392 Ref. Provider 48567
Ref. Abatik 000392 Ref. Provider 48567
699 €
STA RITE SW5P6RD-1, 3/4HP pump 14m³/h, single-phase, salt water
Ref. Abatik 000888 Ref. Provider 48570
Ref. Abatik 000888 Ref. Provider 48570
645 €
STA RITE 5P6RH-3, 3HP pump, 31m³/h, three-phase, soft water
Ref. Abatik 000393 Ref. Provider 48568
Ref. Abatik 000393 Ref. Provider 48568
1133 €
STA RITE SW5P6RE-1, 1HP pump, 17m³/h, single-phase, salt water
Ref. Abatik 000889 Ref. Provider SST101
Ref. Abatik 000889 Ref. Provider SST101
749 €
STA RITE SW5P6RD-3, 3/4 HP pump, 14m³/h, Three-phase, compatible with salt water
Ref. Abatik 007868 Ref. Provider 48574
Ref. Abatik 007868 Ref. Provider 48574
899 €
STA RITE SW5P6RF-1, 1.5HP pump 22m³/h, Single-phase, salt water
Ref. Abatik 000890 Ref. Provider 48572
Ref. Abatik 000890 Ref. Provider 48572
719 €
STA RITE SW5P6RE-3, 1HP pump 17m³/h, three-phase, salt water
Ref. Abatik 006963 Ref. Provider 48575
Ref. Abatik 006963 Ref. Provider 48575
790 €
STA RITE SW5P6RG-1, 2HP pump, 26m³/h, single-phase, salt water
Ref. Abatik 000892 Ref. Provider 48573
Ref. Abatik 000892 Ref. Provider 48573
899 €
STA RITE SW5P6RF-3, 1.5HP pump 22m³/h, three-phase, salt water
Ref. Abatik 000891 Ref. Provider 48576
Ref. Abatik 000891 Ref. Provider 48576
960 €
STA RITE SW5P6RG-3, 2HP pump, 26m³/h, three-phase salt water
Ref. Abatik 000893 Ref. Provider 48577
Ref. Abatik 000893 Ref. Provider 48577
930 €
STA RITE SW5P6RH-3, 3HP pump, 31m³/h, three-phase, salt water
Ref. Abatik 000894 Ref. Provider 48578
Ref. Abatik 000894 Ref. Provider 48578
1349 €
STA RITE 5P6RE-1, 1HP pump 17m³/h, single-phase, soft water
Ref. Abatik 000388 Ref. Provider 48561
Ref. Abatik 000388 Ref. Provider 48561
820 €

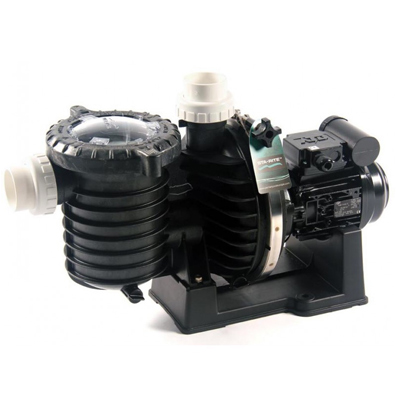

The range of STA-RITE 5P6R self-priming pumps is designed using glass fibre reinforced high-pressure thermoplastic, Quick-lock lid and 63 mm union connections to be stuck in place.
Conversion inches/mm : 2" is the equivilent to 63 mm
Design :
The STA-RITE 5P6R pumps are equipped with European motors that conform to the protection norm IP55.
By using high-pressure moulding, the turbine features an electrical sleeve which isolates the axis of the motor from passing water (offering high electrical security). The pumps turbine has been designed to deliver a high water column. These pumps finish and dynamic balancing ensure a low noise level in operation, offering excellent performance. The motor axis extremity is threaded to ensure perfect alinement with the turbine.
The main body of the pump into which the pre-filter is incorporated is made using high-pressure moulding. The connection orifices measure 2" (63mm). A large pre-filter (Ø6") is closed by means of a transparent polycarbonate lid that permit a clear view when assessing basket clogging. The sealing ring of the pre-filter is a new conception that reduces friction and eases the opening of the lid. Purge valves are manually tightened, making winterizing easy.
The pump has a raised base made from high-density polyethylene and is anchored by 2 fixation holes to the ground surface. The motor is not anchored to ease maintenance operations.
The materials used for the manufacture of the pump and pre-filter allow high working pressure ; perfectly resistant to heat and eliminating all risk of corrosion. Put to the test for several years, this material is incomparable and resists even to severe temperature variations.
STA-RITE 5P6R single phase, compatible with soft water
STA-RITE 5P6R three phase, compatible with soft water
STA-RITE SW5P6R single phase, compatible with salt water
STA-RITE SW5P6R three-phase, compatible with salt water
Conversion inches/mm : 2" is the equivilent to 63 mm
Charateristics of the STA-RITE 5P6R
Main advantages :
The range of STA-RITE 5P6R pumps are a new concept and designed mainly for residential and public pools. They ensure high-performance, fast self-priming action and benefit from incomparable maintenance facility with high water flow, well adapted to the pools needs.
The STA-RITE 5P6R pumps are light in weight and resistant, using construction materials sourced from glass-fibre-reinforced synthetic materials. This range of pumps is particularly resistant to corrosion and weather conditions.
The fact that these pumps are self-priming means they benefit from an easy start and feature a stainless steel collar with tightening handle simplifying maintenance interventions to the pump. All internal components are accessible without needing to dissociate the pump from the plumbing system.
The pump diffuser ensures optimal efficiency allowing fast priming action coupled with its stainless steel wear ring giving a long lifespan to the components, reducing friction and allowing perfect turbine rotation.
The range of STA-RITE 5P6R pumps are a new concept and designed mainly for residential and public pools. They ensure high-performance, fast self-priming action and benefit from incomparable maintenance facility with high water flow, well adapted to the pools needs.
The STA-RITE 5P6R pumps are light in weight and resistant, using construction materials sourced from glass-fibre-reinforced synthetic materials. This range of pumps is particularly resistant to corrosion and weather conditions.
The fact that these pumps are self-priming means they benefit from an easy start and feature a stainless steel collar with tightening handle simplifying maintenance interventions to the pump. All internal components are accessible without needing to dissociate the pump from the plumbing system.
The pump diffuser ensures optimal efficiency allowing fast priming action coupled with its stainless steel wear ring giving a long lifespan to the components, reducing friction and allowing perfect turbine rotation.
Design :
The STA-RITE 5P6R pumps are equipped with European motors that conform to the protection norm IP55.
By using high-pressure moulding, the turbine features an electrical sleeve which isolates the axis of the motor from passing water (offering high electrical security). The pumps turbine has been designed to deliver a high water column. These pumps finish and dynamic balancing ensure a low noise level in operation, offering excellent performance. The motor axis extremity is threaded to ensure perfect alinement with the turbine.
The main body of the pump into which the pre-filter is incorporated is made using high-pressure moulding. The connection orifices measure 2" (63mm). A large pre-filter (Ø6") is closed by means of a transparent polycarbonate lid that permit a clear view when assessing basket clogging. The sealing ring of the pre-filter is a new conception that reduces friction and eases the opening of the lid. Purge valves are manually tightened, making winterizing easy.
The pump has a raised base made from high-density polyethylene and is anchored by 2 fixation holes to the ground surface. The motor is not anchored to ease maintenance operations.
The materials used for the manufacture of the pump and pre-filter allow high working pressure ; perfectly resistant to heat and eliminating all risk of corrosion. Put to the test for several years, this material is incomparable and resists even to severe temperature variations.
Technical characteristics
Common features between the STA-RITE 5P6R and SW5P6R
Type of pump
Self priming pump operational up to 5m above water level
Corrosion resistance
Chemical or salt water resistant, depending on model
Motor rotation speed
2850trs/min
Motor protection
IP55
Insulation class
F
pH range
4 - 9
Maximum air temperature
50°C
Maximum water temperature
52°C
Anchoring holes
2
Pre-filter diameter
6"
Diameter of connection orifices
2" (63mm)
Resistant to salt up to
3-4% (model SW5P6R)
Dimensions
Characteristics of different STA-RITE pumps
STA-RITE 5P6R single phase, compatible with soft water
| Pump | 5P6RD-1 | 5P6RE-1 | 5P6RF-1 | 5P6RG-1 |
| Capacity | 3/4HP / 0,55kW | 1HP / 0,75kW | 1,5HP / 1,1kW | 2HP / 1,5kW |
| Power supply | Single phase (220V) | Single phase (220V) | Single phase (220V) | Single phase (220V) |
| Water flow m³/h | 14 | 17 | 22 | 26 |
| Weight in kg | 12 | 17 | 14,9 | 24 |
STA-RITE 5P6R three phase, compatible with soft water
| Pump | 5P6RD-3 | 5P6RE-3 | 5P6RF-3 | 5P6RG-3 | 5P6RH-3 |
| Capacity | 3/4HP/ 0,55kW | 1HP / 0,75kW | 1,5HP / 1,1kW | 2HP / 1,5kW | 3HP / 2,2kW |
| Power supply | Three-phase (380V) | Three-phase (380V) | Three-phase (380V) | Three-phase (380V) | Three-phase (380V) |
| Water flow m³/h | 14 | 17 | 22 | 26 | 31 |
| Weight in kg | 12 | 17 | 14,9 | 24 | 24,5 |
STA-RITE SW5P6R single phase, compatible with salt water
| Pump | SW5P6RD-1 | SW5P6RE-1 | SW5P6RF-1 | SW5P6RG-1 |
| Capacity | 3/4HP / 0,55kW | 1HP/ 0,75kW | 1,5HP / 1,1kW | 2HP / 1,5kW |
| Power supply | Single-phase (220V) | Single-phase (220V) | Single-phase (220V) | Single-phase (220V) |
| Water flow m³/h | 14 | 17 | 22 | 26 |
| Weight in kg | 12 | 17 | 14,9 | 24 |
STA-RITE SW5P6R three-phase, compatible with salt water
| Pump | SW5P6RD-3 | SW5P6RE-3 | SW5P6RF-3 | SW5P6RG-3 | SW5P6RH-3 |
| Capacity | 3/4HP / 0,55kW | 1HP / 0,75kW | 1,5HP/ 1,1kW | 2HP / 1,5kW | 3HP/ 2,2kW |
| Power supply | Three-phase (380V) | Three-phase (380V) | Three-phase (380V) | Three-phase (380V) | Three-phase (380V) |
| Water flow m³/h | 14 | 17 | 22 | 26 | 31 |
| Weight in | 12 | 17 | 14,9 | 24 | 24,5 |
Performance chart
Warranty
2 years
