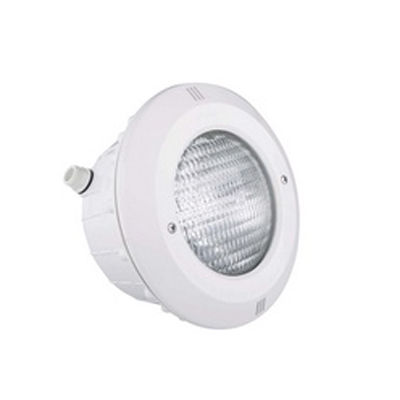

Stella WPM40 pool projector

Stella WPM40 pool projector
Recommended retail price 2024 :
237 €
Our Price :
199 € Including VAT
Ref. Abatik 014501
Ref. Provider PF10R411
Stella WPM40 equipped projector flush to wall
EUR 199.00
9 LED pool projector
Easy to install with wall support
2100lm lighting flow
42w energy consumption
White light
In stock
The Stella WPM40 prolongs your swimming time after nightfall.

9 LED's diffuse a clear and powerful light whilst guaranteeing a reduced energy consumption compared to a filament bulb.

LED technology guarantees a better lifespan and creates less heat than a classic bulb.

Adapted to all pool types, the outer casing of this projector can be installed to various types of pool finishes : concrete/ceramic, concrete/liner, panel/liner and wood.
Stella WPM40 pool projector in position

Technical details


When installing, the WPM40 is locked into place using a bayonette system in the mural support, fixed into the pool wall. Depending on the type of construction, several solutions are possible:
Concrete wall crossing
Plastered concrete/tiles
Concrete/liner wall crossing
Concrete/liner
Polyester shell wall crossing
Polyester shell
Steel panel / liner wall crossing
Steel panels with liner
Wooden wall crossing
Wooden pools


The transformers power



The transformer on which the LED WPM40 is connected should have a secondary power output of 12v.

Its power must be adequate to the requirements of the projectors to which it is connected.

The below table indicates the number of projectors that the transformer can power, depending on its capacity.

Transformer power
Maximum number of WPM40 projectors
50VA
1
100VA
2
300VA
7


When effectuating connection, an independent protection must be installed for each projector. 5A fuses or trip switches can be used.
Varied views of the Stella WPM40 pool projector

Technical characteristics


Supply power
12V AC 50Hz/60Hz
Consumed power
42W
Lumens
2100lm
Type of LED
LED Power
Number of LEDs
9
Colour
White
Dimensions
ø255mm x 91mm
Fixation
Wall support
Weight of projector
1,2kg
Proctection index
IP-68

contents of package


- 1 Stella WPM40 projector
- 1 wall support
- 3 fixation plugs
- 3 fixation screws
- 1 o-ring kit
- 1 instruction sheet]

Warranty

2 years

Photos non-contractual
Price incl. VAT
