Climexel 23kW heat pump

Climexel 18kW
Recommended retail price 2017 :
9370 €
Our Price :
9370 € Including VAT
Ref. 001707
Climexel 23 kW heat pump
EUR 9370.00
Three-phase model
Defrosting function, operational up to -15°C,
Titanium plate exchanger,
For pools up to 160²m
  • Installation/maintenance package
  • Maximum pool volume 160 m3
  • Three-phase
In stock
- Heat pump specifically designed for swimming pools.
- Operational up to -15° C outdoor temperature.
- For pools up to 160 m³ maxi.
- TITANIUM plate exchanger allowing a better performance.

Climexel, part of the Procopi group have designed a complete range of heat pumps renowned for the reliability and performance. Equipped with an evaporator, treated with the anti-corrosion "Goldfin" system, the CLIMEXEL range is resistant in a maritime atmosphere. Producing an excellent COP (Coefficient of performance = Output in relation to input), Featuring a Titanium plate exchanger, creating a better performance than competing models.

The connection of Climexel heat pumps is made by a multifunctional plug featuring a phase inversion detector pour three-phased models. No connections are required in the heat pump's electrical distribution box

- Titanium plate exchanger
- "Goldfin" treated evaporator
- Conforms to EU regulations
- R407C cooling liquid (non-polluting).
- COPELAND SCROLL rotary compressor - very quiet in operation.

Contact us for all advice and information concerning your installation taking into account your pool configuration.
International phone contact

Evaporator
Evaporator
The Climexel heat pump range is equipped with an extra large, anti-corrosive, evaporator.
Titanium plate exchanger
Titanium plate exchanger

The Titanium plate exchanger creates a better performance.

Climexel exchanger
Heat exchanger plates are nestled in the exchanger
Multifunctional plug
Multi functional plug
Using this feature, your heat pump has the possibility to detect a phase-inversion, you no longer need to make connections in the heat pump's distribution box. Installation is simplified and no internal manipulation is required.


Ventilation surface
The larger ventilation area contained in Climexel heat pumps indicate a quiet running operation and high performance

Digital control box
Control panel CLIMEXEL 7kw
Using its digital control box (situated on the side of the heat pump) you can regulate your pool water at any desired temperature : the system looks after the rest.

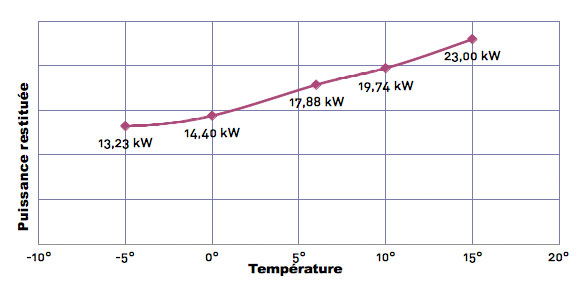

Manufacturers performance curve chart
COP Climexel 23kw
Schema Climexel 18kW
Length (1) :
90,5 cm
Width (2) :
40,5 cm
Height (3) :
127 cm
Weight :
143 kg
Capacity* :
23 Kw
Maximum consumption :
5.2 kW
COP** :
4.81
Defrosting function :
manufactured series, operational up to -15°c
Decibels :
46 dB
Power supply :
400 V
Cable section :
4/2,5 mm²
Circuit breaker :
25/16 A
Maximum volume of pool :
160 m3
Union connections supplied (50)
Yes


Operational parts
a : Start / stop button
b : Control box
c : Water inlet
d : Water outlet
e : Multifunctional plug
f : Double vertical ventilation area
Evaporator positioned on the back surface of the unit.


* Residential pool with cover, May to September, air 15° C,
** Coefficient of performance = Power output / Power input



Installation schema Optipac 30D
Installation schema for heat pump

ON OPTION: U-CONNECT CONNECTION KIT


U connect
Schema U connect


The U-Connect connection kit allows you to link your heat pump to your pool without plumbing or tools. This fast installation requires no additional electrical installation and avoids the need for a by-pass. Just connect the two supplied pipes to your Climexel 23 kW heat pump, and connect your portable U-Connect control box. Self-priming, the U-Connect system remains independent from your filtration circuit. You get warm water, faster, without losing heat through piping as is often the case in a classic configuration.

Warranty

3 years

Photos non-contractual
Price incl. VAT
