Climexel 91 kW heat pump

Climexel 39kW heat pump
Our Price :
Consult us
Ref. 000247
CLIMEXEL 91kW heat pump
EUR 3.00
For pools up to 580m³ maximum,
Three-phase,
operational up to -15°C,
Titanium plate exchanger
  • Maximum pool volume 580 m3
  • Defrosting function
  • Three-phase
In stock
- Heat pump specifically designed for swimming pools. Installation outdoors or in technical shelter.
- Operational up to -15° C outdoor temperature.
- For pools up to 120 m³ maxi.
- TITANIUM plate exchanger allowing a better performance.

Climexel, part of the Procopi group have designed a complete range of heat pumps renowned for the reliability and performance. Equipped with an evaporator, treated with the anti-corrosion "Goldfin" system, the CLIMEXEL range is resistant in a maritime atmosphere. Producing an excellent COP (Coefficient of performance = Output in relation to input), Featuring a Titanium plate exchanger, creating a better performance than competing models.

The connection of Climexel heat pumps is made by a multifunctional plug featuring a phase inversion detector pour three-phased models. No connections are required in the heat pump's electrical distribution box

- Titanium plate exchanger
- "Goldfin" treated evaporator
- Conforms to EU regulations
- R407C cooling liquid (non-polluting).
- COPELAND SCROLL rotary compressor - very quiet in operation.

Contact us for all advice and information concerning your installation taking into account your pool configuration.
International phone contact

Titanium plate exchanger
Titanium plate exchanger

The Titanium plate exchanger creates a better performance.
Climexel exchanger
Heat exchanger plates are nestled in the exchanger
Multifunctional plug
Multi functional plug
Using this feature, your heat pump has the possibility to detect a phase-inversion, you no longer need to make connections in the heat pump's distribution box. Installation is simplified and no internal manipulation is required.


Ventilation surface
The larger ventilation area contained in Climexel heat pumps indicate a quiet running operation and high performance

Digital control box
Control panel CLIMEXEL 7kw
Using its digital control box (situated on the side of the heat pump) you can regulate your pool water at any desired temperature : the system looks after the rest.

;
Defrosting function :
manufactured series, operational up to -15°c
Output*:
91 kW
Input:
22,3 kW
COP** :
4.42
Amperage:
2 x 19,1A
Power supply :
400 V
Decibels :
48 dB
Weight:
563kg
Union connections supplied (50)
Yes
Exchanger :
Titanium plate - high performance
Compressor :
Copeland scroll
Cooling liquid
Conform to norm R407 C


* Residential pool with cover, May to September, air 15° C,
** Coefficient of performance = Power output / Power input

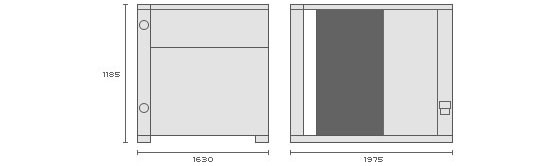

Dimensions Climexel 91
Dimensions

Installation schema Optipac 30D
Installation schema for heat pump

ON OPTION: U-CONNECT CONNECTION KIT


U connect
Schema U connect


The U-Connect connection kit allows you to link your heat pump to your pool without plumbing or tools. This fast installation requires no additional electrical installation and avoids the need of a by-pass. Just connect the two supplied pipes to your Climexel 91kW heat pump, and connect your portable U-Connect control box. Self-priming, the U-Connect system remains independent from your filtration circuit. You get warm water, faster, without losing heat through piping as is often the case in a classic configuration.

Warranty

3 years

Photos non-contractual
Price incl. VAT
