Tradipool inground concrete PPP pool

Tradipool inground concrete PPP pool kit
Recommended retail price 2017 starting from :
6513.72 €
Our Price starting from :
6513.72 € Including VAT
Ref. 022162
TRADIPOOL PPP 6x3m H1.20m concrete pool kit
Inground concrete kit,
Fast and easy construction, meets your needs,
8 available dimensions,
Depth : 1.20 or 1.45,
Rectangular shape,
Supplied with filtration system:
Pump, electrical box, sand filter,
Supplied with required sealing parts:
1 or 2 skimmer(s), discharge nozzles, main drain, projector, brush adaptor,
Made in France
In stock
TRADIPOOL PPP 6x3m H1.20m concrete pool kit
Ref. 022162
EUR 6513.72
6513.72 €
Order Free quote
TRADIPOOL PPP 6x3m H1.45m concrete pool kit
Ref. 022163
EUR 7034.09
7034.09 €
Order Free quote
TRADIPOOL PPP 6x4m H1.20m concrete pool kit
Ref. 022164
EUR 6951.02
6951.02 €
Order Free quote
TRADIPOOL PPP 6x4m H1.45m concrete pool kit
Ref. 022165
EUR 7516.84
7516.84 €
Order Free quote
TRADIPOOL PPP 7x3.50m H1.20m concrete pool kit
Ref. 022166
EUR 7254.70
7254.70 €
Order Free quote
TRADIPOOL PPP 7x3.50m H1.45m concrete pool kit
Ref. 022167
EUR 7841.30
7841.30 €
Order Free quote
TRADIPOOL PPP 8x4m H1.20m concrete pool kit
Ref. 022168
EUR 8485.01
8485.01 €
Order Free quote
TRADIPOOL PPP 8x4m H1.45m concrete pool kit
Ref. 022169
EUR 9159.86
9159.86 €
Order Free quote
TRADIPOOL PPP 9x4m H1.20m concrete pool kit
Ref. 022170
EUR 9037.87
9037.87 €
Order Free quote
TRADIPOOL PPP 9x4m H1.45m concrete pool kit
Ref. 022171
EUR 9758.40
9758.40 €
Order Free quote
TRADIPOOL PPP 10x5m H1.20m concrete pool kit
Ref. 022172
EUR 9917.78
9917.78 €
Order Free quote
TRADIPOOL PPP 10x5m H1.45m concrete pool kit
Ref. 022173
EUR 10727.62
10727.62 €
Order Free quote
TRADIPOOL PPP 11x5m H1.20m conceret pool kit
Ref. 022174
EUR 10509.58
10509.58 €
Order Free quote
TRADIPOOL PPP 11x5m H1.45m concrete pool kit
Ref. 022175
EUR 11389.49
11389.49 €
Order Free quote
TRADIPOOL PPP 12x6m H1.20m concrete pool kit
Ref. 022176
EUR 12277.18
12277.18 €
Order Free quote
TRADIPOOL PPP 12x6m H1.45m concrete pool kit
Ref. 022177
EUR 13270
13270 €
Order Free quote
The Tradipool PPP inground concrete pool range compose a range of self-assembly pools. Tradipool PPP is the result of a dependable, breveted system : Polypropylene panels are filled with concrete, to create a real, in-ground pool - fast, easy and economical. PPP panels use the principle of a framework. Light and simple to handle, the panels are easily assembled, simplifying your pool build.

This building method creates a monobloc, reinforced, concrete structure which is rot proof and built to last: resistant to inner hydraulic pressure and outer pressure due to landfilling.

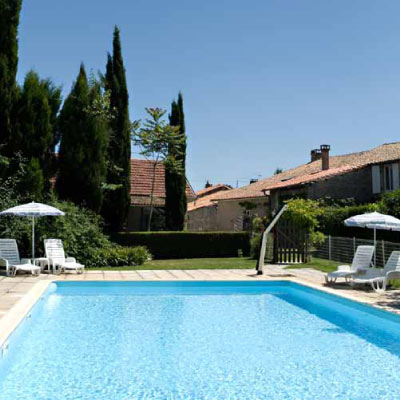

Tradipool inground concrete PPP pool kit

Tradipool PPP kit: a real pool, built to last

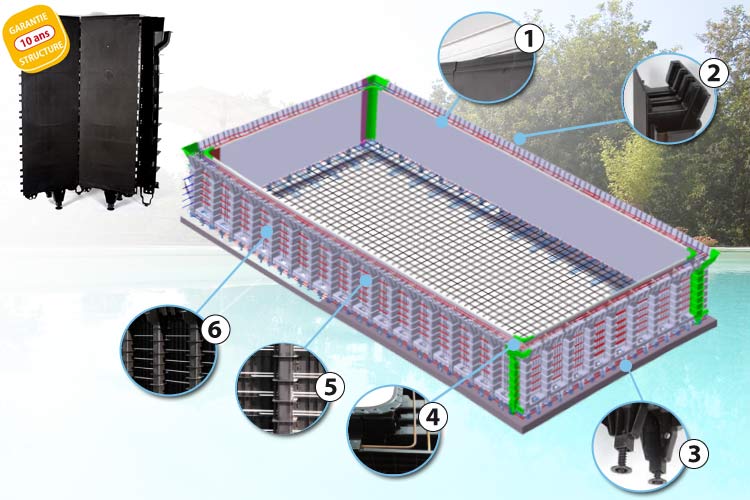

Installation schema for Tradipool inground concrete PPP pool kit
1)
Liner: Panel and angle designed for use with a standard liner profile.
2)
Builders rod housing profile is integrated into panel profile.
3)
Integrated adjustable legs on each panel for easy height modification using an Allen key.
4)
High-quality finished angles: locked by 1/4 turn key, ogee edges positioned behind the liner, rounded profile bar.
5)
Installation without tools: assembly of angles and panels by simple clip/rotate system. Structural solidity is ensured by fibreglass rods that pass through the panels.
6)
Pillar every 50 cm, using a simple and patented system


Tradipool PPP concrete kit in 6 easy steps

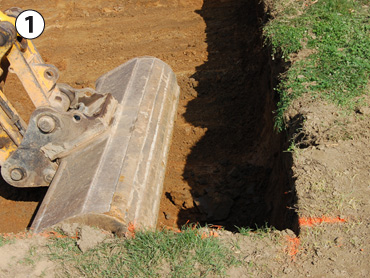

Excavation of pool cavity
Excavation of pool cavity
Panel assembly Tradipool inground concrete PPP pool kit
Panel assembly

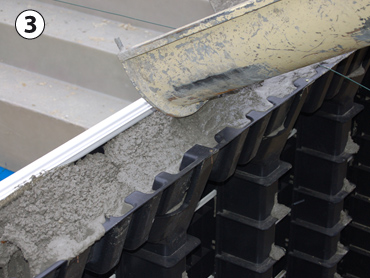

Application of concrete
Application of concrete to screed and walls simultaneously

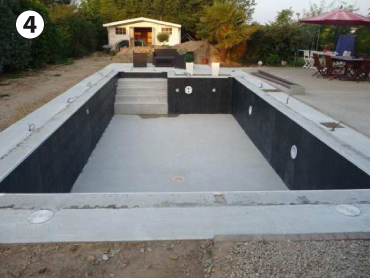

Positioning of sealing parts Tradipool inground concrete PPP pool kit
Installation of sealing parts, filtration connection

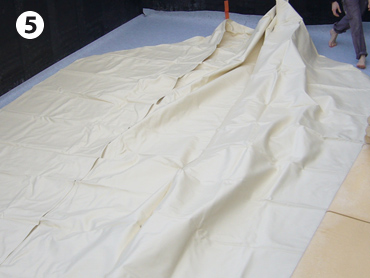

Position liner Tradipool inground concrete PPP pool kit
Installation of liner

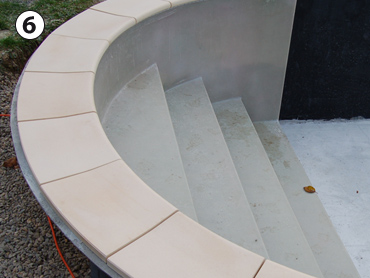

Installation of pool coping
Installation of coping


Technical advantages of Tradipool PPP kits



- Simplicity : Easy to handle, polypropylene panels that allow a fast pool build : reduced drying time is required, no plastering is required.
- Practical : The panels are precut, ready for the sealing parts to be fitted.
- Key in hand solution : All required pool equipment is supplied : High-quality 75/100th, ensuring water tightness, sealing parts (skimmer, discharge nozzles, main drain, projector), filtration system (pump, filter, electrical box) or outboard filtrating monobloc.
- Certified robustness and lifespan : Concept certified by CSTB (centre scientifique technique du bâtiment - French body specialising in development and research of building techniques) and conform to the calculation method of BAEL (Béton Armé aux Etats Limités - reinforced concrete consultancy), 10-year Manufacturer's guarantee.
Guarantee TRADIPOOL

Material supplied with Tradipool PPP


Sealed parts


- 1 or 2 skimmer(s) depending on the dimensions of the pool selected
- 1 or 2 white or coloured projectors
- 3 discharge nozzles
- 1 brush adaptor
- 1 main drain

Filtration system :


STANDARD Traditional filtration system (requires a technical shelter)

- 1 self-priming pump MJB EVO
- 1 sand filter with a 6-way valve, blown or bobbin wound, depending on the dimensions of the chosen pool.
- 1 electrical box

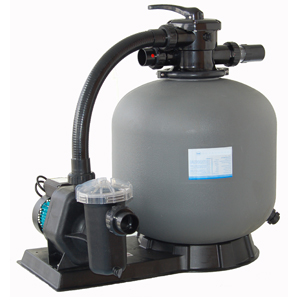

Standard traditional filtration for Tradipool
Traditional filtration (Standard)


Optional equipment for the Tradipool


ON OPTION Outboard filtration monobloc (does not require technical shelter)
The MX18 filtration monobloc manages all of your pool filtration. Adapted to all pools up to a maximum of 80m³. Its inground section houses the pump, filter and optional equipment.
The units Sand colour integrates perfectly into your pool environment. The installation and start-up of the MX18 is very simple. The pump is primed automatically.
Filtrinov MX18
Filtration monobloc (on option)


ON OPTION

Liner 75/100 made to measure POOL 75


The liner is made to measure depending on the shape and dimensions required by the Client. Resistant, yet flexible, facilitating installation and designed to last.

Thickness
75/100th
Treatments
anti-UV, colourfast, anti-stain, chemical treatment product resistant
Installation system
"Hung"
Guarantee
10 years, digressive concerning soldering


ON OPTION

Tradipool peripheral plumbing pack


Tradipool plumbing packs are designed to connect sealing parts to the technical shelter. Including PVC PN-16 piping, elbow connections to be stuck and flexible piping.
Plumbing elements Tradipool pool kit

ON OPTION

Tradipool plumbing elements to equip technical shelter :


Constitutes the hydraulic circuit for the technical shelter for all available pool dimensions:

- PVC collector, Ø50 mm (1)
- 5 PVC PN-16 Ø50 mm valves (2)
- 3 connecting valves at the collector's inlets
- 1 discharge valve
- 1 outlet valve for soiled water, positioned at the filter outlet
- 5 union connections Ø50 mm to screw or stick (3)
- 3 PVC T's to stick (4)
- 15 PVC 90° elbow connections to stick Ø50 mm (5)
- 5 PVC 45° to stick Ø50 mm (6)
- 1 pot of PVC glue (7)
- 4 rolls of Teflon (8)
- 2.5 m of rigid PVC piping to be stuck PN-16 Ø 50 mm (9)
Plumbing kit for Tradipool

ON OPTION

Pool access


The Tradipool ladder and maintenance pack includes a ladder with 3 stainless steel steps and a full kit that completes your pool maintenance. All you need to clean your pool and conserve water quality: pH analysis, cleaning pool floor and walls, collecting debris and dust.

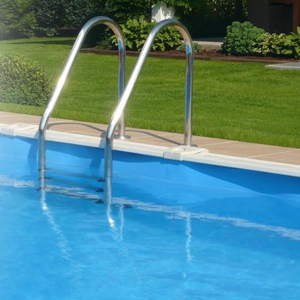

Tradipool ladder
Ladder

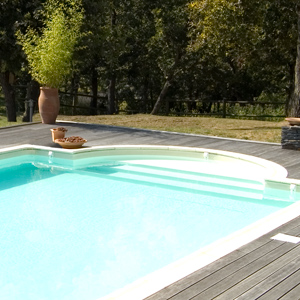

Tradipool stairs
Stairs


To facilitate access to your pool, 4 types of stairs are proposed on option :

- Angled stairs, 3 steps for pools 1.20 m in depth
- Angled stairs, 4 steps for pools 1.45 m in depth
- Whole width stairs 3 steps for pools 1.20 m in depth
- Whole width stairs 4 steps for pools 1.45 m in depth

PPP kit in images



Tradipool inground concrete PPP pool kit

Tradipool inground concrete PPP pool kit

Integrated equipment depending on the dimensions of pool (applicable for both depths: 1.20 /1.45)



-6 X 3 m6 X 4 m7 X 3.50 m8 X 4 m9 X 4 m10 X 5 m11 X 5 m12 X 6 m
Height1.20 ou 1.451.20 ou 1.451.20 ou 1.451.20 ou 1.451.20 ou 1.451.20 ou 1.451.20 ou 1.451.20 ou 1.45
Skimmer(s)11122222
Projector(s)11122222
Discharge nozzles33333333
Electrical box managing filtering and projector11111111
Underfelt (400g/m²)6 X 4 m6 X 4 m8 X 4 m8 X 4 m10 X 5 m10 X 5 m12 X 6 m12 X 6 m
Wall covering foam, 1.45 m in height, 3mm thick10 lm20 lm24 lm24 lm30 lm30 lm36 lm36 lm
PEHD blown filter, 6-way side valve8 m³/h10 m³/h10 m³/h15 m³/h15 m³/h15 m³/h15 m³/h-
Bobbin wound filter, 6-way side valve-------30 m³/h
MJB EVO pump, self-priming0.50 HP0.75 HP0.75 HP1 HP1 HP1 HP1 HP2.50 HP
Outboard filtering block (on option)Filtrinov MX18Filtrinov MX18Filtrinov MX18Filtrinov MX18Filtrinov MX18Filtrinov MX18Filtrinov MX25Filtrinov MX25

Warranty

10 years on structure :
Conform to guidelines outlined in technical specifications (hidden defect, conception, manufacture).
2 years on filtration :
This guarantee concerns the conformity and bon operation of the pump and filter in the context of normal use, respecting recommendations for use
10 years on liner soldering :
Digressive guarantee of 10% per year on the actual market price

Photos non-contractual
Price incl. VAT
