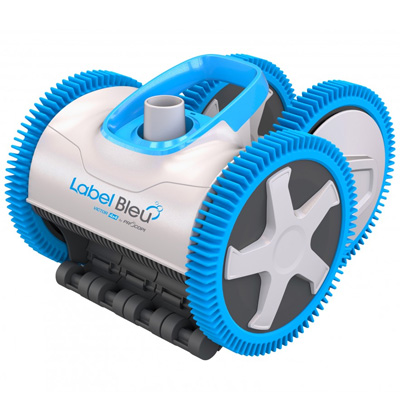

Victor 4x4

Victor 4x4 hydraulic pool cleaner
Recommended retail price 2017 starting from :
836 €
Our Price starting from :
753 € Including VAT
Ref. 000718
Victor 4x4 pool cleaner for concrete liner polyester pool finish
Hydraulic 4x4 pool cleaner,
4 wheel drive,
Connection to brush adaptor or skimmer,
Ideal for large pools up to 12x6m
In stock
Victor 4x4 pool cleaner for ceramic floor
Ref. 000719
EUR 791
791 €
Order Free quote
Victor 4x4 pool cleaner for concrete liner polyester pool finish
Ref. 000718
EUR 753
753 €
Order Free quote
Impurities, leaves, gravel... The Victor 4x4 hydraulic pool cleaner eliminates impurities on your pool floor, without letting any escape... even in the corners!

Using large, ribbed wheels, this cleaner can get anywhere without becoming blocked. Automatically changing direction and negotiating vigorously even the steepest climb without losing its working path.

The Victor's movement is powered by a turbine that drives its wheels. The turbine's clever design coupled with quality manufacturing ensures a quiet operation of the unit, even at full power.

For further mobility, this hydraulic cleaner is linked by a free turn connection.

To facilitate maintenance and lifespan, the Victor is entirely mechanical.

The Victor 4x4 is ideal for large pools equipped with powerful pumps.

A security pressure regulation kit is positioned at the front of the unit : In the case of accidental obstruction (branch, large stone etc...)a valve automatically opens to create a secondary suction path.
The Victor 4x4 :
- Simply connects to a suction point.
- The Victor is operational with a low powered pump (5m3/h minimum).
- Is fitted in a few moments
- Using its programme, the Victor does not require any adjustment settings.
- Automatic change of direction.
- Pipe 12 x 1m specific for large pools

The Victor 4x4 exists 2 versions :

- Version "C" for pools with a ceramic finish,
- Version "P" for pools with Liner, fiberglass or painted concrete finishes.

Technical features


System
Hydraulic suction
Installation
Brush adaptor or skimmer
Filter capacity
5m3/hour
Trajectory
Random
Use
3h30 to 4h/day
Programmation
None
Type of compatible debris
Dust, sand, gravel, leaves
Connection
Brush adaptor or skimmer
Maximum dimensions of pool
12 x 6m
Standard piping
12m
Garantee
2 years

The Victor 4x4 in detail


Inside view Victor
Spacer20
The Victor pool cleaner is driven by a mobile finned turbine ensuring excellent trajectory and very quiet operation.

Every 20 to 30 seconds, the inbuilt programme of the Victor pool cleaner inverses the direction of its wheel rotation, so the unit never stays blocked in one spot.

The Victor needs no adjustment, just a minimal capacity of 5m3/hour on the filtration pump.

The Victor pool cleaner in detail

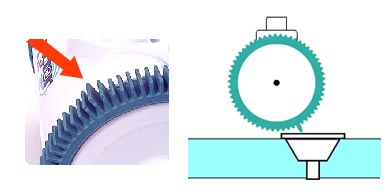

Spiked wheel

A ribbed casing is fitted on each wheel. This allows the cleaner to get out of difficult situations.
Wheel Victor

Large, rubberized wheels mean the cleaner can easily complete its trajectory throughout any pool finish.

Independent openings

With independent cleaning shutters, the Victor perfectly adapts to any pool shape.
Free turn connection

To facilitate the cleaners freedom of movement and avoid twisted pipes, the pipes connector is "free turn".

Installation schema



Installation schema

Discharge nozzle (possible to connect to cleaner) (1), Brush adaptor (2), Main drain (3), Skimmer (4), Pool pump (5), Filter (6).
