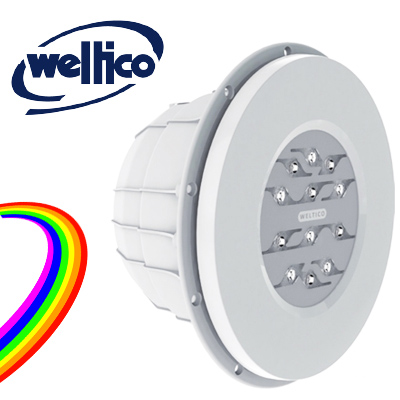

Weltico Rainbow Power Design LED projector

LED Weltico Rainbow Power Design projector
Recommended retail price 2017 starting from :
526.40 €
Our Price starting from :
299 € Including VAT
Ref. 016018
RAINBOW POWER DESIGN12 LED COLOURED LIGHTING PROJECTOR (RGB)- panel
12 LED pool projector with alcove,
Easy installation and removal of bulb,
Powerful focus beam,
Low energetic energy consumption,
Multicoloured lighting
In stock
RAINBOW POWER DESIGN12 LED COLOURED LIGHTING PROJECTOR (RGB)- panel
Ref. 016018
EUR 299
299 €
Order Free quote
RAINBOW POWER DESIGN 12 LED COLOURED LIGHTING PROJECTOR (RGB)-concrete liner
Ref. 016016
EUR 269
269 €
Order Free quote
Remote control + regulating box pack for WELTICO Rainbow Power LED bulb
Ref. 009292
EUR 89
89 €
Order Free quote
The Weltico Rainbow Power Design LED projectors offer quality whilst guaranteeing low energy consumption compared to a filament bulb - LED technology also guarantees a longer lifespan and less overheating.

The projectors are delivered with their specific alcove, chosen to correspond to the pool type (sheeted panels, concrete-liner...).

Main advantages


- Multicoloured lamp equipped with 12 LED's.

- Compact alcove (135mm).

- Installation and removal of the bulb without the use of tools.

- Available for sheeted panel and concrete/liner pools.

- Available colour for outer casing - white.
Focus Weltico Rainbow Power Design LED projector without alcove


Consumption Weltico Rainbow Power Design LED projector without alcove

Electrical consumption



• Excellent lighting quality that can make up to 80% energy economies.

• Lifespan 50 to 100 times more than a filament bulb.

Technical details


Diffusion of light



Each LED bulb features a polycarbonate focus, optimising diffusion in width and depth.

Water tightness



LED bulbs and their focus are sealed in resin to guarantee absolute water tightness.

Colour composition



The projector colours are obtained by mixing the 3 primary colours - red, green and blue.

Operation


This projector is independent and offers the choice of 5 modes : 10 static colours and 5 automatic sequences to change colour so you can evolve your lighting atmosphere by the simple press of a button.

A radio remote control is equally available on option with a regulating control box.
Focus Weltico Rainbow Power Design LED projector without alcove


Remote control and regulating control box (option)


The projector features an integrated RF (Radio Frequence) receptor that can respond to a signal up to 50m away on clear ground. Its specific frequency ensures there is no interruption with the other household appliances.

Remote control

The remote control commands the regulating control box for colour change and start/stop of the projector.

5 buttons :
- 1 stop button.
- 2 buttons for colour projection.
- 2 buttons for sequenced projection.

Regulating control box

The regulating control box is connected to the supply cable of the projectors after the transformer.
This offers command of up to 4 coloured projectors on a 25m maximum length of cable.

The signal is sent via the projector power cable.
Weltico Rainbow Power Design LED projector without alcove remote control and CPL box

Electrical connections


The transformer


The transformer on which the LED is connected must have a secondary distribution voltage of 12v.

The power supply should be adequate to the requirements of the projectors to be connected. The supply should be 10% greater than the power consumed by the projector.

The below table indicates the number of projectors that a transformer, depending on its capacity.

Capacity of transformer
Maximum number of projectors
50VA
1
100VA
2
300VA
6

Cabeling


The cable section must be adapted to the distance between the transformer and projector to avoid all risk of overheating or loss of power.
Required sections for connection

Distance
Appropriate cable section
9m
2 x 2,5mm²
13m
2 x 4mm²
30m
2 x 6mm²
32m
2 x 10mm²


Technical characteristic


ProjectorRainbow Power Design 12 LED liner-concreteRainbow Power Design 12 LED panel
Power supply12V AC 50Hz/60Hz12V AC 50Hz/60Hz
Power consumed28W28W
Liminosity810lm810lm
Number of LEDs1212
ColourMulticolouredMulticoloured
ProtectionIP68IP68
Made inFranceFrance


Dimensions


Dimensions LED Weltico Rainbow Power Design projector
SideRainbow Design Concerete/linerProjecteur Rainbow Design sheeted panel
AØ 265 mmØ265 mm
B265 mm265 mm
C265 mm265 mm
D135 mm135 mm
E16 mm16 mm
FØ 232 mmØ 262 mm
GØ 211Ø 248.5 mm
HØ 6mmØ6 mm
I36°36°

Contents of package


- 1 LED lamp
- 1 alcove
- 1 outer casing
- 1 connector with cable gland
- O-rings and flange
- 1 packet of screws
- 1 duct + electrical cable
- 1 technical sheet

Warranty

2 years

Photos non-contractual
Price incl. VAT
