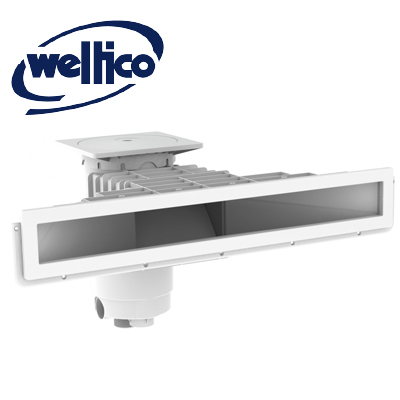

Weltico skimmer Elegance A800 in ABS

Weltico skimmer Elegance A800 in ABS
Recommended retail price 2017 starting from :
329 €
Our Price starting from :
199 € Including VAT
Ref. 017653
WELTICO Skimmer elegance A800 white, concrete, liner, shell
Ideal for pools under construction or renovation,
Compatible with all types of pool finish,
Easy installation, fixation accessories supplied,
Lateral outlets to connect water level regulator and overflow,
Anti-UV ABS
In stock
WELTICO Skimmer elegance A800 white, concrete, liner, shell
Ref. 017653
EUR 199
199 €
Order Free quote
WELTICO Skimmer elegance A800 white, panel
Ref. 017654
EUR 209
209 €
Order Free quote
WELTICO Skimmer elegance A800 Blue, concrete, liner, shell
Ref. 021747
EUR 219
219 €
Order Free quote
WELTICO Skimmer elegance A800 Blue, panel
Ref. 021751
EUR 219
219 €
Order Free quote
WELTICO Skimmer elegance A800 Sand, concrete, liner, shell
Ref. 021748
EUR 219
219 €
Order Free quote
WELTICO Skimmer elegance A800 Sand, panel
Ref. 021752
EUR 239
239 €
Order Free quote
WELTICO skimmer elegance A800 Grey, concrete, liner, shell
Ref. 021749
EUR 219
219 €
Order Free quote
WELTICO Skimmer elegance A800 grey, panel
Ref. 021753
EUR 249
249 €
Order Free quote
WELTICO Skimmer elegance A800 Anthracite, concrete, liner, shell
Ref. 021750
EUR 219
219 €
Order Free quote
WELTICO Skimmer elegance A800 Anthracite, panel
Ref. 021754
EUR 249
249 €
Order Free quote
Water level regulator for WELTICO skimmer elegance A800
Ref. 021755
EUR 109
109 €
Order Free quote
The ABS Weltico skimmer Elegance is distinguished by its extra wide mouth. Efficiently suctioning impurities from the water surface, avoiding deposits on the pool floor.
When using a regular skimmer, the waterline of the pool is generally between 10 to 20 cm under pool coping.
Less high and wider, than a classic model, the ABS Weltico skimmer Elegance allows a waterline 5cm under pool coping, creating the effect of a "mirror" pool.
Pool edges become less visible, giving the impression of a bigger pool that blends perfectly into its surroundings.
Weltico skimmer Elegance A800 in ABS


Made from ultra-resistant ABS that features an anti-UV treatment, the Weltico skimmer Elegance is ideal in the context of pool construction or renovation of your pool. Available in two models :

- Skimmer Elegance A800 specific for concrete, liner and shell
- Skimmer Elegance A800 specific for panels

To facilitate installation, the Weltico skimmer Elegance is delivered in two parts. The skimmer and its mouth are distinct. ABS glue and fixation tweezers are supplied to link the two elements quickly and easily.
Weltico skimmer Elegance A800 in ABS
Colour range Weltico skimmer Elegance A800 in ABS
The range of WELTICO A800 mirror skimmers are available in 4 colours:
1 - Blue
2 - Sand
3 - Grey
4 - Anthracite grey

Water level regulation and overflow


The skimmer Elegance A800 ABS features two moulded-in connections to pipe in :

Water regulation Weltico skimmer Elegance A800 in ABS
- A water level regulator to avoid a lack of pool water that can cause your pump to un-prime and overheat.
- An overflow that limits the risk of pool water spill-off in the case of heavy rain

You wish to install an overflow for your pool? Contact us today to check compatibility with your pool configuration.


Description of skimmer Elegance A800 in ABS



Components
SKIMMER
1)
Lid
2)
Basket
3)
Floating weir
4)
Flat sealing washer
5)
Flange
6)
Liner screw
7)
Screw caps
8)
Liner kit


Key :
Installation of skimmer Elegance A800 for concrete, liner and shell pools.

Concrete pools do not require the use of a flange, flat sealing washer, screw caps or liner kit when the skimmer is installed.
Schema Weltico skimmer Elegance A800 in ABS


Installation



The installation of skimmer elegance A800 ABS from Weltico is easy. The installation process differs depending on the material on which it is installed:

Weltico skimmer Elegance A800 in ABS for shell, liner and concrete
Installation of skimmer Elegance A800 on concrete, shell and liner pools
Weltico skimmer Elegance A800 in ABS for panel pool
Installation of skimmer Elegance A800 on Steel panel pools


Installation concrete, shell and liner pools



Join the skimmer and mouth in the appropriate position. Interlock and position the skimmer against the mouth and slide the four supplied spacers to maintain contact between the two components.

Installation on steel panel pools


Cut your panel to the dimensions of the skimmer and screw together using the supplied hardware. Position the flat washer on the mouth and fix the liner hook above the pool wall. Once the liner has been installed, fix the second flat washer on the flange and screw in place. cut and remove the liner inside the mouth. Clip on the screw cap.

Dimensions



Dimensions of Skimmer Elegance Weltico A800 ABS for concrete, liner and shell


Weltico skimmer Elegance A800 in ABS dimension for concrete, liner or shell pools

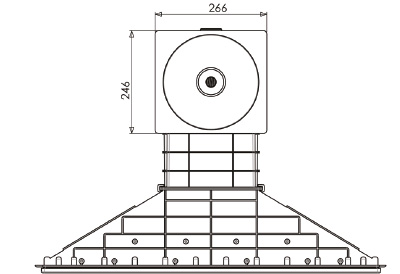

Dimensions Skimmer Elegance Weltico A800 ABS for panels


Weltico skimmer Elegance A800 in ABS dimensions for panel pools
Segment A reading on above dimension schemas

Length A Skimmer Elegance A800 concrete
321.5 / 310.5 mm
Length A Skimmer Elegance A800 shell/concrete/liner
319.5 / 309.5 mm
Length A Skimmer Elegance A800 panels/liner
315.5 / 305.5
Weltico skimmer Elegance A800 in ABS segment A dimensions

Characteristics

Material
anti UV ABS
Diameter of mouth
50 mm
Diameter of overflow
50 mm
Inner threading
1"1/2
Outer threading
2"
Water regulation connection
Yes


Photos non-contractual
