Heat pump CALIENTE Inverpool R®
Recommended retail price 2019 starting from :
2548 €
Our Price starting from :
1999 € Including VAT
Ref. 020640
CALIENTE INVERPOOL heat pump R 9 kw single phase for pool up to 65m3
CALIENTE INVERPOOL heat pump R 9 kw single phase for pool up to 65m3
Heat pump operational during the 4 seasons to a maximum negative temperature of -10°C,
Inverter compressor with variable speed : making economies of up to 30% of energy,
Reversible : heats or cools the pool water,
Compatible with all water treatments,
very low noise level
Latest product in our Caliente range
Inverter compressor with variable speed : making economies of up to 30% of energy,
Reversible : heats or cools the pool water,
Compatible with all water treatments,
very low noise level
Latest product in our Caliente range
- New
In stock
CALIENTE INVERPOOL heat pump R 9 kw single phase for pool up to 65m3
Ref. 020640
Ref. 020640
1999 €
CALIENTE INVERPOOL heat pump R 12 kw single phase for pool up to 80m3
Ref. 020641
Ref. 020641
2499 €
CALIENTE INVERPOOL heat pump R 15 kw single phase for pool up to 100m3
Ref. 020642
Ref. 020642
3369 €
CALIENTE INVERPOOL heat pump R 20 kw single phase for pool up to 140m3
Ref. 020643
Ref. 020643
4899 €
CALIENTE INVERPOOL heat pump R 20 kw three phase for pool up to 140m3
Ref. 020644
Ref. 020644
4899 €
CALIENTE INVERPOOL heat pump R 25 kw single phase for pool up to 170m3
Ref. 020645
Ref. 020645
5099 €
BY-PASS Kit diameter 50 mm
Ref. 009094
Ref. 009094
65 €
CALIENTE INVERPOOL heat pump R 25 kw three phase for pool up to 170m3
Ref. 020646
Ref. 020646
5099 €
The heat pump Caliente Inverpool R® is the latest product in the range Inverpool. Using innovating technology, this heat pump can efficiently heat the pool and equally cool the water during a period of extreme temperature.
Program the desired temperature with the easy to use control panel and select one of the 3 modes : Boost (maximum power), Eco (economic setting) and Quiet (very low noise level). The integrated Inverpool® technology coupled with its Inverter compressor adapts its power output and electrical consumption. This can make an economy of up to 30% in consumed energy.
Performant and economic, the power of this pump heats 4 to 6 times more than its electrical consumption. Featuring an defrost function, this all year round pump is operational up to -10°, so swimming is possible even during winter. Compact, discreet and very quiet, perfectly adapted to the poolside environment.
Heat pump CALIENTE Inverpool R®
Information: the below performance table supposes the use of a thermal cover (ie bubble blanket). If your pool is not equipped with one, please contact our team of advisors to select the model adapted to your specific configuration and wishes
Heating capacity with an outdoor ambient temperature of 26°C, water temperature 26°C
Heating capacity with an ambient air temperature of 15°C, water temperature 26°C
Heating capacity with an ambient air temperature of -10°C, water temperature 24°C
Cooling capacity with an ambient air temperature of 35°C, water temperature 27°C, Humidity 80%
The exchanger and compressor of the heat pump Caliente Inverpool R® is protected by a layer of foam padding, creating a sonar and thermic insulation.
The heat exchanger (or condenser) transfers the heat produced by the heat pump compressor to the pool water.
The body of the exchanger is made from a reinforced composite resin, the exchanger itself is constructed from titanium and therefore, is compatible with all water treatments including salt.
The evaporator captures the calories present in outdoor ambient air. It is important that the cooling liquid running through the circuit has a large area of exchange with air.
The greater the surface area of exchange, the better the performance of the heat pump reducing the consumption of input energy, reducing running costs.
The evaporator of the heat pump CALIENTE Inverpool R® is equipped with a 3-rang circuit, creating a large surface of exchange with ambient air.
Covered with a "plate fin" treatment, the heat pump CALIENTE Inverpool R® is compatible with maritime climates containing salt residue.
Depending on the outside temperature and relative humidity (the rate of humidity contained in outdoor ambient air), a heat pump evaporator can cover itself with frost, preventing their correct operation.
To solve this problem, the heat pumps CALIENTE Inverpool R® are equipped with an automatic defrosting cycle running on inverted gas:
At regular intervals, an injector brings hot gas into the evaporator, raising its temperature and defrosting the ice.
This quick process optimises the heating time of the heat pump contrarily to most other models on the market that defrost by stopping their compressor and forcing the fan to blow ambient air.
With this process heat pumps CALIENTE Inverpool R® can function up to a negative temperature of -10°C

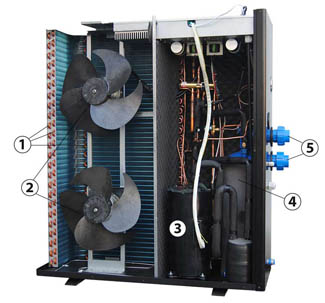

3-rang evaporator (1), Fan (1 or 2 depending on model) (2), Compressor DC inverter (3), Titanium exchanger (4), Water inlet and outlet (5).
- Place the heat pump in the desired area.
- There should be a good circulation of air with no surrounding obstacles.
- The heat pump should be placed on a stable, flat surface. A concrete floor is ideal.
- Following installation, the heat pump should stay in a vertical position with no inclination.
- The equipment should not be placed near a source of pollution, corrosive gases, dust or dead leaves.
The U-connect connection kit for heat pump allows you to link your heat pump to your pool with no plumbing or tools. This fast installation does not require a supplementary power supply and avoids the need of a by-pass. You simply connect the two supplied pipes to your heat pump Caliente Inverpool R, and join them to the portable U-Connect unit. Complete with self-priming action, the U-Connect unit remains independent from your pool filtering system. You can enjoy hot water, faster without loosing heat through a piping system which is often the case in a classic configuration.
Program the desired temperature with the easy to use control panel and select one of the 3 modes : Boost (maximum power), Eco (economic setting) and Quiet (very low noise level). The integrated Inverpool® technology coupled with its Inverter compressor adapts its power output and electrical consumption. This can make an economy of up to 30% in consumed energy.
Performant and economic, the power of this pump heats 4 to 6 times more than its electrical consumption. Featuring an defrost function, this all year round pump is operational up to -10°, so swimming is possible even during winter. Compact, discreet and very quiet, perfectly adapted to the poolside environment.
Economise energy with Inverpool® technology
The heat pump Caliente Inverpool R®intergrates Inverpool® technology, making important economies in terms of energy use. Intelligently balancing output power and electrical consumption via its Inverter compressor (Hitachi or Panasonic, depending on model), running at a variable speed. A choice of three operational modes allows an adaptation of consumed energy depending on your specific needs.
ECO mode : Using the inverter compressor , the power of the heat pump Caliente Inverpool R® varies in coherence with the climate and desired temperature. Automatically adapting the optimal power of its compressor and fan makes an economy of up to 30% of consumed energy, therefore, the heat pump Caliente Inverpool R® prolongs the lifespan of its components. It's progressive start function does not have a peak of intensity, and so reduces required input energy.
BOOST mode : To heat a large volume quickly, the compressor and fan operate at maximum speed. The heat pump Inverpool R® giving heat rapidly. This mode also functions with a progressive start, limiting the units consumed power.
QUIET mode : this mode heats the pool water with a lower power capacity and the lowest noise level of the pump.
ECO mode : Using the inverter compressor , the power of the heat pump Caliente Inverpool R® varies in coherence with the climate and desired temperature. Automatically adapting the optimal power of its compressor and fan makes an economy of up to 30% of consumed energy, therefore, the heat pump Caliente Inverpool R® prolongs the lifespan of its components. It's progressive start function does not have a peak of intensity, and so reduces required input energy.
BOOST mode : To heat a large volume quickly, the compressor and fan operate at maximum speed. The heat pump Inverpool R® giving heat rapidly. This mode also functions with a progressive start, limiting the units consumed power.
QUIET mode : this mode heats the pool water with a lower power capacity and the lowest noise level of the pump.

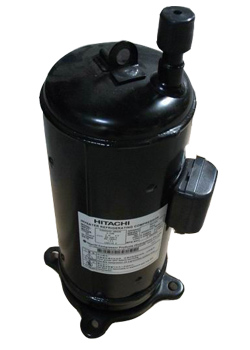

Heat pump CALIENTE Inverpool R®The compressor featuring variable speed system diminishes the use of your electrical supply and protects your electrical installation from climatically caused electrical trips. With Inverpool® technology the intensity of the compressor avoids the need to adapt your electrical installation from single-phase to three-phase (on the condition that the available power adapts to the criteria for the good working order of the heat pump.).
The heat pump CALIENTE Inverpool R® is placed exclusively outdoors.
The heat pump CALIENTE Inverpool R® is placed exclusively outdoors.
Advantages of l'Inverpool®
- 3 operational modes : 30% more economic than a standard heat pump.
- More reliable and sustainable
- Very quiet while in operation
- Less demand of the electrical supply
Heating capacity
Information: the below performance table supposes the use of a thermal cover (ie bubble blanket). If your pool is not equipped with one, please contact our team of advisors to select the model adapted to your specific configuration and wishes
Heating capacity with an outdoor ambient temperature of 26°C, water temperature 26°C
| Model | CALIENTE Inverpool R 9 | CALIENTE Inverpool R 12 | CALIENTE Inverpool R 15 | CALIENTE Inverpool R 20 (single/three-phase) | CALIENTE Inverpool R 25 (single/three-phase) |
| Output energy (KW) (Eco mode) | 9.1 | 12.4 | 15.1 | 18.9 | 23.9 |
| Input energy (KW) (Eco mode) | 1.19 | 1.63 | 2.06 | 2.49 | 3.14 |
| COP (coefficient of performance) | 7.6 | 7.6 | 7.4 | 7.6 | 7.6 |
Heating capacity with an ambient air temperature of 15°C, water temperature 26°C
| Model | CALIENTE Inverpool R 9 | CALIENTE Inverpool R 12 | CALIENTE Inverpool R 15 | CALIENTE Inverpool R 20 (single/three-phase) | CALIENTE Inverpool R 25 (single/three-phase) |
| Output energy (KW) (Mode Eco) | 6.8 | 9 | 11.3 | 15 | 18.7 |
| Input energy (KW) (Mode Eco) | 1.21 | 1.61 | 2.02 | 2.67 | 3.34 |
| COP (coefficient de performance) | 5.6 | 5.6 | 5.6 | 5.6 | 5.6 |
Heating capacity with an ambient air temperature of -10°C, water temperature 24°C
| Model | CALIENTE Inverpool R 9 | CALIENTE Inverpool R 12 | CALIENTE Inverpool R 15 | CALIENTE Inverpool R 20 (single/three-phase) | CALIENTE Inverpool R 25 (single/three-phase) |
| Output energy (KW) (Mode Eco) | 5 | 6.5 | 8 | 10.7 | 13.3 |
| Input energy (KW) (Mode Eco) | 1.13 | 1.5 | 1.91 | 2.53 | 3.16 |
| COP (coefficient de performance) | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 |
Cooling capacity with an ambient air temperature of 35°C, water temperature 27°C, Humidity 80%
| Model | CALIENTE Inverpool R 9 | CALIENTE Inverpool R 12 | CALIENTE Inverpool R 15 | CALIENTE Inverpool R 20 (single/three-phase) | CALIENTE Inverpool R 25 (single/three-phase) |
| Cooling power (KW) (Eco mode) | 6.8 | 9.8 | 11.5 | 15.6 | 19.5 |
| Input energy (KW) (Eco mode) | 1.36 | 1.97 | 2.42 | 3.09/3.08 | 3.97 |
| EER (Energy efficiency ratio) | 3.3 | 3.3 | 3.3 | 3.4 | 3.4 |

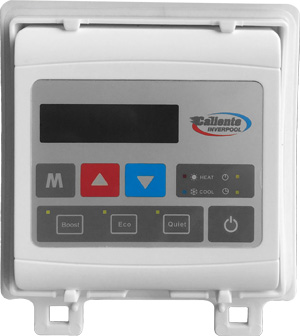

Control panel
The heat pumps CALIENTE Inverpool R® are equipped with an easy to use LED digital display screen showing the water temperature, instructions and operational mode.
The Caliente Inverpool R® control panel has 3 operational modes :
"Boost" mode : The heat pump Caliente Inverpool R® is operational at maximum power.
"Eco" mode : The compressor adjusts its strength to its electrical consumption in relation to the desired temperature of water and climatical conditions.
"Quiet" mode : Very quiet in operation.
The control panel equally allows you to easily define the operational time slots.
It is possible to pre-select the delay start of the heat pump to meet your needs (to benefit from off-peak rate, for example).
The heat pump Caliente Inverpool R® is supplied with a 10m cable so you can place your control panel to suit your convenience.
The Caliente Inverpool R® control panel has 3 operational modes :
"Boost" mode : The heat pump Caliente Inverpool R® is operational at maximum power.
"Eco" mode : The compressor adjusts its strength to its electrical consumption in relation to the desired temperature of water and climatical conditions.
"Quiet" mode : Very quiet in operation.
The control panel equally allows you to easily define the operational time slots.
It is possible to pre-select the delay start of the heat pump to meet your needs (to benefit from off-peak rate, for example).
The heat pump Caliente Inverpool R® is supplied with a 10m cable so you can place your control panel to suit your convenience.

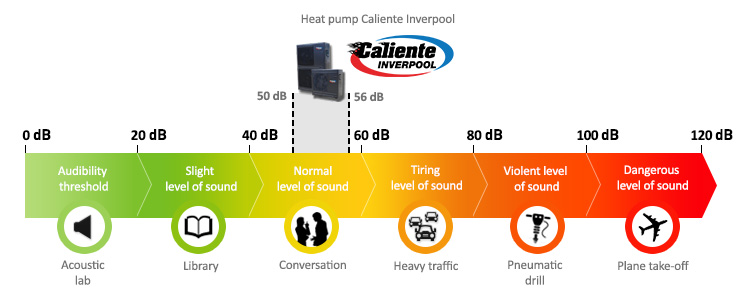

Maximum sound levels with the CALIENTE Inverpool® range
Sound and heat insulation
The exchanger and compressor of the heat pump Caliente Inverpool R® is protected by a layer of foam padding, creating a sonar and thermic insulation.
Titanium exchanger
The heat exchanger (or condenser) transfers the heat produced by the heat pump compressor to the pool water.
The body of the exchanger is made from a reinforced composite resin, the exchanger itself is constructed from titanium and therefore, is compatible with all water treatments including salt.
3-rang evaporator
The evaporator captures the calories present in outdoor ambient air. It is important that the cooling liquid running through the circuit has a large area of exchange with air.
The greater the surface area of exchange, the better the performance of the heat pump reducing the consumption of input energy, reducing running costs.
The evaporator of the heat pump CALIENTE Inverpool R® is equipped with a 3-rang circuit, creating a large surface of exchange with ambient air.
Covered with a "plate fin" treatment, the heat pump CALIENTE Inverpool R® is compatible with maritime climates containing salt residue.
Automatic defrosting system
Depending on the outside temperature and relative humidity (the rate of humidity contained in outdoor ambient air), a heat pump evaporator can cover itself with frost, preventing their correct operation.
To solve this problem, the heat pumps CALIENTE Inverpool R® are equipped with an automatic defrosting cycle running on inverted gas:
At regular intervals, an injector brings hot gas into the evaporator, raising its temperature and defrosting the ice.
This quick process optimises the heating time of the heat pump contrarily to most other models on the market that defrost by stopping their compressor and forcing the fan to blow ambient air.
With this process heat pumps CALIENTE Inverpool R® can function up to a negative temperature of -10°C
Technical features
| Model CALIENTE Inverpool® | 9Kw single-phase | 12Kw single-phase | 15Kw single-phase | 20Kw single-phase | 20Kw three-phase | 25Kw single-phase | 25Kw three-phase |
| Recomended volume of pool* | 65m³ | 80m³ | 100m³ | 140m³ | 140m³ | 170m³ | 170m³ |
| Electrical supply | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 220-240V/50Hz | 380V/50Hz | 220-240VV/50Hz | 380V/50Hz |
| Standard nominal imput | 5.4A | 7.2A | 9A | 11.9A | 5.1A | 14.9A | 6.4A |
| Circuit breaker | 16A | 24A | 32A | 40A | 16A | 40A | 16A |
| Exchanger | Titanium | Titanium | Titanium | Titanium | Titanium | Titanium | Titanium |
| Compressor | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary | Rotary |
| Compressor brand | Hitachi | Hitachi | Panasonic | Panasonic | Panasonic | Panasonic | Panasonic |
| Gas | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A | R-410A |
| Number of fans | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Fan | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal | Horizontal |
| Noise level at 1m dB(A) (Boost mode) | 54 | 56 | 56 | 58 | 58 | 60 | 60 |
| Noise level at 1m dB(A) (Quiet mode) | 50 | 50 | 50 | 52 | 52 | 52 | 52 |
| Noise level at 10m dB(A) (Boost mode) | 50 | 50 | 50 | 52 | 52 | 52 | 52 |
| Noise level at 10m dB(A) (Quiet mode) | 46 | 45 | 46 | 47 | 47 | 47 | 47 |
| Hydraulic connections (mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Flow dectector | Incorporated | Incorporated | Incorporated | Incorporated | Incorporated | Incorporated | Incorporated |
| Minimum flow | 3,6m³/h | 5,4m³/h | 6m³/h | 7,8m³/h | 7,8m³/h | 7,8m³/h | 7,8m³/h |
| Defrost | warm gas | warm gas | warm gas | warm gas | warm gas | warm gas | warm gas |
Dimensions and weight
| Model CALIENTE Inverpool® | 9Kw single-phase | 12Kw single-phase | 15Kw single-phase | 20Kw single-phase/three-phase | 25Kw single-phase/three-phase |
| Length x width x Height (mm) | 1045 x 415 x 695 | 1045 x 410 x 855 | 1045 x 410 x 855 | 1050 x 430 x 1215 | 1050 x 430 x 1215 |
| Net weight (kg) | 78 | 88 | 91 | 130 | 145 |

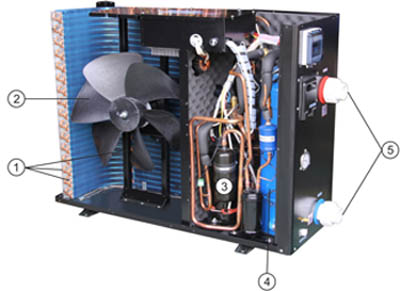

3-rang evaporator (1), Fan (1 or 2 depending on model) (2), Compressor DC inverter (3), Titanium exchanger (4), Water inlet and outlet (5).
Where should I place my heat pump?
Installation
- Place the heat pump in the desired area.
- There should be a good circulation of air with no surrounding obstacles.
- The heat pump should be placed on a stable, flat surface. A concrete floor is ideal.
- Following installation, the heat pump should stay in a vertical position with no inclination.
- The equipment should not be placed near a source of pollution, corrosive gases, dust or dead leaves.
Installation schema
1. Heat pump CALIENTE Inverpool®
2. Pool pump
3. Pool filter
2. Pool pump
3. Pool filter
4. Suction
5. Inlet to pool
6. Condensation outlet
5. Inlet to pool
6. Condensation outlet
7. Inlet hot air
8. Outlet cold air
9. Electrical supply
8. Outlet cold air
9. Electrical supply
ON OPTION: U-CONNECT CONNECTION KIT FOR HEAT PUMP
The U-connect connection kit for heat pump allows you to link your heat pump to your pool with no plumbing or tools. This fast installation does not require a supplementary power supply and avoids the need of a by-pass. You simply connect the two supplied pipes to your heat pump Caliente Inverpool R, and join them to the portable U-Connect unit. Complete with self-priming action, the U-Connect unit remains independent from your pool filtering system. You can enjoy hot water, faster without loosing heat through a piping system which is often the case in a classic configuration.
Warranty
7 year warranty on compressor and exchanger, 2 year warranty on all other parts
