Swimming Pool OnLine>> Hammam equipment and material Steam generators for professional or residential hammams

Steam generators for professional or residential hammams

Discover our full range of steam generators for residential or public hammams

Starting from : 1202

Steam generator for small volumes, Ideal for shower or small hammam, Featuring steam pipe, diffusion nozzle...

Starting from : 1629

Compact models, For hammam volumes between 2 and 28m³, Easy installation, Sperate tactile control panel, Single and three phase supply...

Price : 1707

For hammams up to 5m3 Single or three-phase - electrical capacity 4kW For hammams with a 1 or 2 person capacity

Price : 1808

For hammams up to 12m3 Single or three-phase supply voltage - Electrical capacity 6,8kW For 3 - 6 person capacity hammams* Single-phase

Price : 2132

For hammams up to 19m3 Three-phase - electrical capacity 13.5kW

Price : 2539

For hammams up to 35m3 Three-phase - electrical capacity 23kW

Price : 2980

For hammams up to 50m3 Three-phase - electrical capacity 34kW

Price : 3405

For hammams up to 60m3 Three-phase - electrical capacity 42kW Three-phase

Price : 5239

For hammams from 60 to 70 m³ in volume Three-phase supply voltage 46kW capacity Three-phase

Price : 5940

For hammams with a maximum volume of 100m3 Three-phase - electrical capacity 68kW

Price : 6905

For hammams between 100 and 130m3 Three-phase - electrical capacity 84kW

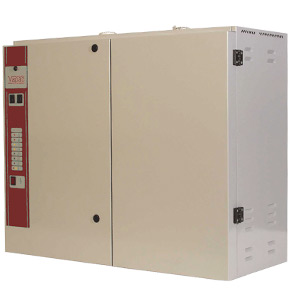

TEDDINGTON steam generators


Using the most recent engineering technology, TEDDINGTON steam generators are available with a capacity of up to 84 kW offering exception value for money at an extremely low running cost.
Made in England and in France.
Conform to TÜV, EU, ISO 9001 and RoHS norms.

ModelLEH05LEH09LEH18LEH30LEH45LEH55 LEH60LEH90LEH110
for Hammam from*1 to 2 persons3 to 6 persons6 to 9 persons9 to 15 persons15 to 21 persons21 to 27 persons27 to 31 persons31 to 43 persons43 to 56 persons
Supply voltage220/400V220/400V400V400V400V400V400V400V400V
Steam production (kg/h)59183045556090110
Capacity (kw)46,8142334422 x 232 x 342 x 42

* The above figures are an estimation and can vary depending on the dimensions of your hammam.

The range of TEDDINGTON steam generators have been designed to operate without water filtration or softening, and require little maintenance.
Managed by a regulator with integrated digital display, each generator automatically adjusts steam production depending on heat requirement, precisely. When the hammam heat level is lower than the desired temperature, a solenoid valve opens and water enters into the steam production cylinder, immediately transforming into steam. The steam is sent, under pressure, to the hammam, ensuring a stable temperature.

Intelligent limescale management offers peace of mind. The generator features an integrated flood pump, situated under the unit, suctioning and evacuating limescale, avoiding heavy maintenance.
The steam generator is automatically purged if the unit is not used for a long period of time to avoid water stagnation. A water level and overflow sensor, as well as integrated electrical protection, ensure maximum security.
These generators must be connected to the mains water supply.

To enhance your feeling of well-being and cleanliness, use the essential oil injection kit, available on option.

Optimal steam flow


Steam production is adapted to the volume of your hammam.

User-friendly settings


You can identify at a glance, the control settings, red, orange or green, clearly indicating the generator status. An easily interpreted lexical pictogram is printed on the unit to ensure clear interpretation.

Temperature regulation


The steam generators are totally automated and managed by the control panel/regulator.

Factory settings regulate a temperature of 40°C that can be modified using the control panel.

The steam generator is equally designed for distance management by means of a distance management switch or timer.

Dry contacts ensure standard remote management or unit operation.

Anti-foam system


VapaNet control system detects the formation of foam and automatically starts a short purge. This also allows steam production with few interruptions.

Frontal hinged door and stainless steel lower casing


Frontal access reduces required installation space and simplifies installation of electrical and components.

Stainless steel lower casing allows easy cleaning and a long lifespan of the unit.

This access point ensures easy maintenance and replacement of steam production cylinders.

Power cable connections


All lower casing of the VAPAC units are equipped with a mobile cable gland plate at the base of the electrical compartment.


Front panel commands :

The steam generator features luminous signals showing the status of the generator and digital display of temperature.

By means of this display you can, in a glance, visualise if the generator has stopped, in operation, paused, requires purge, electrical overload, check water supply, requires maintenance, maintenance in progress or finished.

The user or technican will immediately know the current staus of the steam generator.
LED visual display
Steam generator electrical box

Installation schema


Steam generator installation schema

1. Stop valve
2. Filter
3. Condensation evacuation
4. Cold water
5. TEDDINGTON Steam generator
6. Perfume pump
7. Steam distribution tube (inclined to 10%)
8. Perfume pump resevoir
9. T-junction with stainless steel anti-backflow valve
10. Steam diffusion nozzle (positioned under a bench or in an alcove)
11. Temperature sensor
12. 40mm purge, requires a 1/100 floor surface gradient
Photos non-contractual
