SeaMAID mini pool projector

Seamaid mini projector
Recommended retail price 2017 starting from :
99 €
Our Price starting from :
65 € Including VAT
Ref. 013037
SEAMAID white mini lighting projector 50 mm screw on to discharge nozzle
LED mini pool projector,
Screw-on to 1’ 1/2 discharge nozzle or brush adaptor,
Powerful 400lm max beam,
Low electricity consumption,,
Available in white or coloured light,
To be installed during construction
In stock
SEAMAID white mini lighting projector 50 mm screw on to discharge nozzle
Ref. 013037
EUR 65
65 €
Order Free quote
SEAMAID mini colour screw on discharge nozzle lighting projector 50 mm
Ref. 013064
EUR 79
79 €
Order Free quote
This mini projector has been designed to play with light on specific zones of your pool : valorising an immersed border, a stairway, a ladder, an infinity spa, visually delimit a smaller pool or accentuate the curves of your pool design at nightfall...

This SeaMAID product boasts a very low power consumption, only 4,5w.

Adaptable to any type of pool, this projector has been conceived to screw onto a 1,5" brush adaptor or discharge nozzle. It can equally adapt to an above ground pool. It is recommended to carry out the installation of the projector during pool construction.

There are two versions of this mini-projector :

- The white mini-projector for pools
- The coloured mini-projector for pools


The two versions can be coupled with a SeaMAID 01 radio control module or SeaMAID 04 radio control module (on option) allowing you to command, using a remote control, between 6 and 12 projectors in your pool.

The force SeaMAID



SeaMAID uses a renowned, active Research & Development department that is equipped with a unique testing lab : A subaquatic measurement device designed in collaboration CSTB, Nantes, France and the National Testing Laboratory (Laboratoire National d'Essais -LNE). Using this device, SeaMAID can precisely measure the true lumen of its lighting systems in their operational environment as requested in the European regulation 1194.

The test results are incontestable and correspond to the reality of operational lighting in an aquatic environment.

SeaMAID white mini-projector for pools


Colour temperatureRa (CRI*)Diffusion angleRated Luminous FluxUtilised luminous flux (angle 120°)
Cold white 75000K88120°540 lumens471 lumens


SeaMAID colour mini-projector for pools


Colour temperatureRa (CRI*)Diffusion angleRated Luminous Flux
Red 1000K17.9120°143 lumens
Green 8370K23.7120°148 lumens
Blue 100 000K49.7120°32 lumens


*CRI : Colour Rendering Index

Technical details


Resistance and efficiency


Built with avant-garde techniques and materials, the SeaMAID mini-projector is particularly resistant to shocks, heat and chemical aggression of water treatment products.

To guarantee an intense and pleasant light, the optic or this mini-projector is developed in a way that the diffusion of light is homogeneous and non-glaring in the water for pool users.

Energy economies


With energy provider bills becoming higher and higher, LED technology is quickly overtaking the classic incandescent bulb. SeaMAID LED bulbs use 20 times less power and have a lifespan 50 times superior to a classic incandescent bulb.

Installation


This mini-projector is easy to use. During construction, plan a 1,5" pool brush adaptor or discharge nozzle . Simply screw your mini-projector using the threading positioned behind the unit.

The supplied power cable (2m in length, type H07RNF), passes through the brush adaptor or discharge nozzle and arrives in a waterproof duct which leads to the junction box.

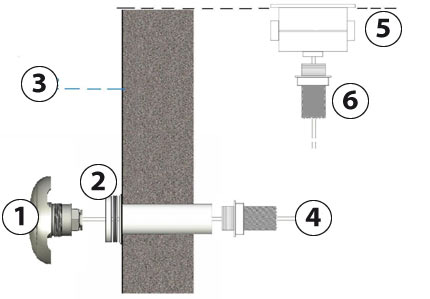

1. Removable lid
2. 1,5' brush adaptor
3. Waterline
4. Cable
5. Junction box
6. Cable duct
Schema installation


SeaMAID mini-projector exists in two models


Mini-projector with white light



Mini projector white

The white mini-projector can define a rayon of 5 meters in a pool, harmoniously, without glare.

You can command this version from you electrical distribution box.

Mini-projector with coloured light



Mini projector colour

Projector designed to create a coloured atmosphere in the pool, valorise immersed borders and stairways using a palate of 11 static colours and 5 automatic flow programs.

This mini-projector is equally commanded from the electrical distribution box of the pool. Select off for 2 seconds to change the program or 10 seconds to reset the projector.

Technical features


Supply voltage
12V AC 50/60Hz
Power input
4,5W +/- 10%
Maximum luminous flux
400 lumens +/- 10%
Number of LED
12 LED Samsung 5630 / 120°
Colour
White 7500K
Program
White static
Control
On/Off Distribution board
LED lifespan*
>30 000 h
Duration of use*
10 000h
European energy classification
A
Anchorage
2 metal brackets screwed into 1.5" brush adaptor

Technical features


Supply voltage
12V AC 50/60Hz
Power input
4,5W +/- 10%
Maximum luminous flux
120 lumens +/- 10%
Number of LED
36
Colour
Multicoloured - 11 static colours
Program
11 static colours / 5 sequences
Control
Distribution board
LED lifespan*
>30 000 h
Duration of use*
15 000h
European energy classification
B
Anchorage
2 metal brackets screwed into 1.5" brush adaptor


*These figures are an indication and can vary depending on use. We can consider a flat projector, used for 4 hours per evening for 6 months of the year has a lifespan of 20 years.

We do not recommend use of the SeaMAID mini-projector on flexible walled pools or self-supporting pools.

remote control option


If you have several mini-projectors, you have the possibility to synchronize colour sequences using the SeaMAID radio control module for pool lighting projectors

Warranty

2 years

Photos non-contractual
