Harvia Kivi electric sauna stove
Recommended retail price 2024 starting from :
1324 €
Our Price starting from :
1074 € Including VAT
Ref. Abatik 014317
Ref. Provider HPIE700400
HARVIA KIVI PI70E electric sauna stove (control unit on option)
Ref. Provider HPIE700400
HARVIA KIVI PI70E electric sauna stove (control unit on option)
Discover the Harvia Kivi stove for saunas between 6 and 14m³
Can be built-in or fitted on floor level,
Compact structure, conic in shape,
Separate control unit
Can be built-in or fitted on floor level,
Compact structure, conic in shape,
Separate control unit
In stock
HARVIA KIVI PI70E electric sauna stove (control unit on option)
Ref. Abatik 014317 Ref. Provider HPIE700400
Ref. Abatik 014317 Ref. Provider HPIE700400
1074 €
HARVIA KIVI PI90E electric sauna stove (control unit on option)
Ref. Abatik 014321 Ref. Provider HPIE900400
Ref. Abatik 014321 Ref. Provider HPIE900400
1196 €
HARVIA KIVI PI70 electric sauna stove
Ref. Abatik 014314 Ref. Provider HPI700400
Ref. Abatik 014314 Ref. Provider HPI700400
1296 €
HARVIA KIVI PI90 electric sauna stove
Ref. Abatik 014315 Ref. Provider HPI900400
Ref. Abatik 014315 Ref. Provider HPI900400
1420 €
Mounting frame
Ref. Abatik 016888 Ref. Provider HPI1
Ref. Abatik 016888 Ref. Provider HPI1
158 €
Security grill
Ref. Abatik 016890 Ref. Provider HPI4
Ref. Abatik 016890 Ref. Provider HPI4
586 €
Stove protection
Ref. Abatik 016892 Ref. Provider SASPI231
Ref. Abatik 016892 Ref. Provider SASPI231
586 €
Stove protection featuring LED lamps
Ref. Abatik 016891 Ref. Provider SASPI230
Ref. Abatik 016891 Ref. Provider SASPI230
875 €
Sauna stones calibrated from 10 to 15cm, 20 Kg box
Ref. Abatik 023214 Ref. Provider AC3020
Ref. Abatik 023214 Ref. Provider AC3020
129 €
Harvia Kivi electric sauna stove in detail
The Harvia Kivi is distinguished by its conic, stainless steel structure. Its large capacity (100kg of stones) is adapted to residential saunas.
Open design from top to bottom, two types of heat can be generated :
- Intense, generated by applying water to the side of the stove.
- Gentle, generated by applying water to the top of the structure.
Compact, the Kivi integrates perfectly to your sauna, optimising available space in your relaxation area.
There are 4 available models :
- PI70 and PI70E with a capacity of 6,9kw
- PI90 and PI90E with a capacity of 9kw
The Kivi PI70 and PI90 stoves feature a supplied separate
control unit that can be installed inside or outside your sauna.
This allows you to :
- pre-heat the sauna (up to 18h in advance)
- control temperature (from +40°C to +110°C)
- program the length of the session (from 2 to 8h)
Open design from top to bottom, two types of heat can be generated :
- Intense, generated by applying water to the side of the stove.
- Gentle, generated by applying water to the top of the structure.
Compact, the Kivi integrates perfectly to your sauna, optimising available space in your relaxation area.
Models
There are 4 available models :
- PI70 and PI70E with a capacity of 6,9kw
- PI90 and PI90E with a capacity of 9kw
Control panel
The Kivi PI70 and PI90 stoves feature a supplied separate
control unit that can be installed inside or outside your sauna.
This allows you to :
- pre-heat the sauna (up to 18h in advance)
- control temperature (from +40°C to +110°C)
- program the length of the session (from 2 to 8h)
The Kivi PI70E and the PI90E are managed by Harvia Classic distance control unit for Sauna or Harvia Griffin distance control unit (available on option).
Offering further features, these units allow you to :
- pre-heat the sauna (up to 18h in advance)
- program the length of the session (from 1 to 12h)
- control temperature (from +40 to +110°C)
- manage sauna lighting and ventilation
Kivi stove equipped with aluminium stove protection and LED lighting, fitted using stainless steel mounting frame
Features
| Model | PI70 | PI70E | PI90 | PI90E |
| Capacity | 6,9kw | 6,9kw | 9kw | 9kw |
| Minimum sauna volume | 6m³ | 6m³ | 8m³ | 8m³ |
| Maximum sauna volume | 10m³ | 10m³ | 14m³ | 14m³ |
| Width | 370mm | 370mm | 370mm | 370mm |
| Height | 1200mm | 1200mm | 1200mm | 1200mm |
| Depth | 370mm | 370mm | 370mm | 370mm |
| Weight | 15kg | 15kg | 15kg | 15kg |
| Maximum volcanic stone capacity | 100kg | 100kg | 100kg | 100kg |
| Command unit | Separate, supplied | Classic C150 or Griffin CG170 (optional) | Separate, supplied | Classic C150 or Griffin CG170 (optional) |
Installation

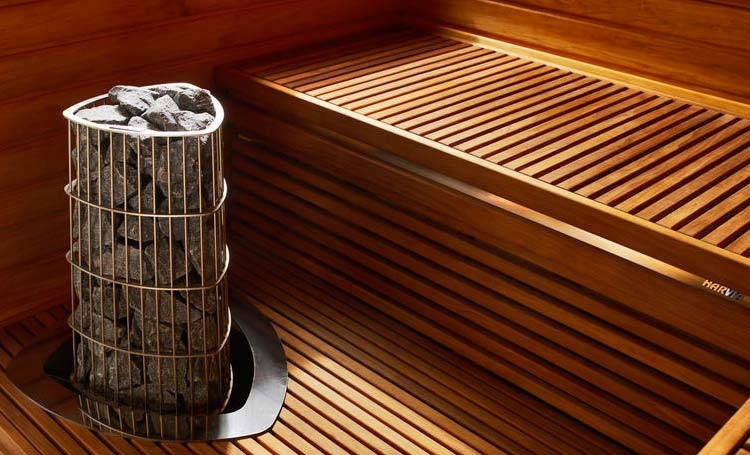

This stove should be installed on floor level, close to benches.
Alternatively, the Kivi can be installed to the lower bench using a stainless steel mounting frame or aluminium stove protection, available on option.
Alternatively, the Kivi can be installed to the lower bench using a stainless steel mounting frame or aluminium stove protection, available on option.
Security distances
| Model | PI70/PI70E | PI90/PI90E |
| Security distance A in relation to side panel | 100mm | 100mm |
| Security distance B in relation to lower bench | 100mm | 100mm |
| Security distance C in relation to ceiling | 680mm | 680mm |
| Security distance D in relation to floor | 30mm | 30mm |
Frontal view (1), Top view (2).
Electrical connection
The Kivi operates with a single or three phase power supply.
| Model | PI70/PI70E | PI90/PI90E |
| 3 phase supply voltage | 400V 3N | 400V 3N |
| Cable sections | 5 x 1,5mm² | 5 x 2,5mm² |
| Fuses | 3 x 10A | 3 x 16A |
| Single-phase supply voltage | 230V 1N | 230V 1N |
| Cable section | 3 x 6mm² | 3 x 10mm² |
| Fuses | 1 x 35A | 1 x 40A |
The kit includes:
- 1 Harvia Kivi stove
- 1 seperate control unit (only applicable to models PI70 and PI90)
- 1 sensor allowing you to control and adjust sauna temperature
- Classic C150 or Griffin CG170 control unit (for models PI70E and PI90E)
- Volcanic stones
- 1 seperate control unit (only applicable to models PI70 and PI90)
- 1 sensor allowing you to control and adjust sauna temperature
Options
- Classic C150 or Griffin CG170 control unit (for models PI70E and PI90E)
- Volcanic stones
Warranty
2 years
