I-Swim mobile chair lift

i-swim mobile chair lift
Recommended retail price 2017 :
8990 €
Our Price :
8990 € Including VAT
Ref. 023618
I-swim mobile chair lift for disabled pool access
EUR 8990.00
Facilitates pool access for the disabled,
Mobile motorised structure, using wheels,
Manoeuvres can be controlled by user (available on option),
Powered by rechargeable battery,
Maximum charge 136kg
In stock

I-swim mobile chair lift in detail


Public pools are now required to ensure disabled access to their aquatic facilities.

The I-swim mobile chair lift replies perfectly to this requirement, ensuring disabled access to pools. Its lifting system featuring an articulated arm allows effortless water entry and exit. Light and ergonomic, this is an ideal solution to offer swimming pleasure to all, in total security.

A maximal weight of 136 kilos can be lifted, its aluminium and stainless steel structure result in an elegant and modern aspect.

It is equally adapted for residential and public use


Water entry using i swim chair lift
Water entry using i swim chair lift for disabled pool access





I swim foot details


Security


The I-Swim should be used by a qualified technician who can globally effectuate manipulation whilst ensuring correct operation: preparation, start-up, adjustment of settings and cleaning. To benefit from further autonomy, it is possible to install an optional control unit on the armrest of the chair lift, featuring raise/lower commands and emergency stop.

I-Swim features several emergency commands: emergency stop, safety belt, folding footrest, brakes for directional wheels, push system, protective pads for wheels and casing.
Anti-tipping patented system is equally installed.
Armrests add to comfort and safety.
I-Swim is considered as a medical device, conform to relative French norms and directives in place at the time of commercialisation.

I swim on pool border

Use


Pool water entry and exit is completed quickly and discreetly in a few seconds, with a noise level which equates to 70 Db, no higher than a normal level of conversation.
It is essential that the I-Swim is used on a perfectly flat and stable surface. If this is not the case, a supporting base is available on option.


Technical charateristics


The lifespan of this product is estimated at approximately 15 000 lifting cycles. Rechargeable batteries can complete approximately 40 cycles. Professional maintenance should be effectuated every 6 months.
The unit is supplied complete and ready for use. The batteries are charged by simple connection to a domestic 220V socket.


Number of wheels
4 (with brake)
Counterweight
65 kg
Empty weight
150 kg
Supply voltage
24 V
Battery capacity
2 * 18 Ah
Charged battery capacity
40 cycles approx
Lifting capacity
136 kg
Lifespan of product
15 000 lifting cycles
Dimensions of chair (in mm)
430 wide X 360 high X 400 deep
Depth of chair immersion in water (in cm)
60

Dimensions (in mm)


Dimensions of i swim chair lift

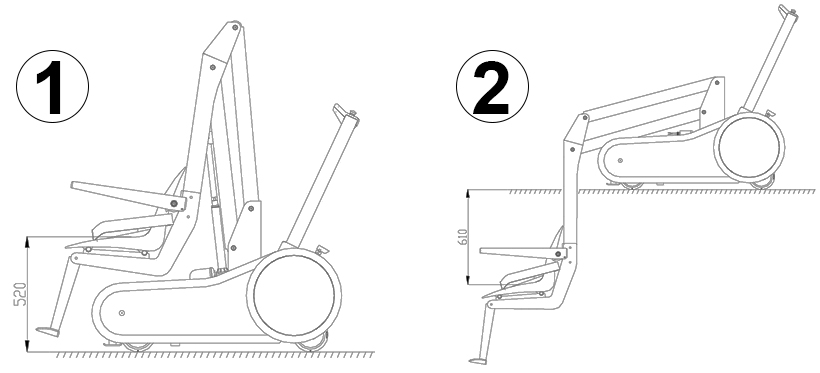

Schema high and low position i swim

1. High position, 2. Low position

I swim maximum range
I swim in position for pool entry

Maximum carrying distance in position

Delivery


Delivery time estimated 3 to 4 weeks

Warranty

2 years

Photos non-contractual
Price incl. VAT
