Filtrinov MX25 filtration monobloc

Filtrinov MX25
Recommended retail price 2017 starting from :
3581 €
Our Price starting from :
2686 € Including VAT
Ref. 013246
Filtration monobloc MX25 Standard evolving
Ensures total pool filtration
Waterflow 25m³/h, for maximum pool volumes of 110m³,
Easy installation on pool coping,
Filtering capacity 25 microns,
Equipped with a white LED lighting feature
  • Single-phase
In stock
Filtration monobloc MX25 Standard evolving
Ref. 013246
EUR 2686
2686 €
Order Free quote
Filtration monobloc MX25 with counter current
Ref. 013224
EUR 3855
3855 €
Order Free quote
Filtration monobloc MX25 with salt electrolysis
Ref. 011683
EUR 3855
3855 €
Order Free quote
Filtration monobloc MX25 with counter current and electrolysis
Ref. 008543
EUR 4699
4699 €
Order Free quote
Filtration monobloc MX25 with salt electrolysis and pH regulator
Ref. 023672
EUR 4245
4245 €
Order Free quote
Filtration monobloc MX25 with salt electrolysis+pH regulator+ by-pass
Ref. 023673
EUR 4472
4472 €
Order Free quote
Filtration monobloc MX25 with counter current + salt electrolysis + pH regulator
Ref. 023674
EUR 5014
5014 €
Order Free quote
Filtration monobloc FB12 without projector or box
Ref. 023675
EUR 1353
1353 €
Order Free quote
Filtration monobloc FB12 without projector or box with by-pass
Ref. 023676
EUR 1640
1640 €
Order Free quote
Filtration monobloc FB12 with white projector + remote control + by-pass
Ref. 023677
EUR 1945
1945 €
Order Free quote
Filtration monobloc FB12 with colour projector + remote control + by-pass
Ref. 023678
EUR 2137
2137 €
Order Free quote
Filtration monobloc MX18 with salt electrolysis + by-pass
Ref. 023665
EUR 3620
3620 €
Order Free quote
Filtration monobloc MX25 awith salt electrolysis and by-pass
Ref. 023671
EUR 4025
4025 €
Order Free quote
Front panel for MX equipped with LED C projector + remote control + rivets + fixation screws
Ref. 023680
EUR 308
308 €
Order Free quote
The Filtrinov MX25 filtration Monobloc replaces underground piping as well as the filter and pump usually stored in the technical shelter as per classic pool installations.

This concept contains in one monobloc two filtering cartridges with a filtering capacity of 25 microns, one 0,5kw pump, two skimmers and one discharge nozzle as well as a LED lighting feature.

The compact filtration monobloc is fitted on the pool border and is partly immersed in the pool water. An ideal product in the case of pool renovation.

The Filtrinov MX25 is designed for pools with a maximum volume of 110m³, features automated self-priming and is easy to install.

With ABS - PMMA beige bodywork the unit merges perfectly into your poolside environment.

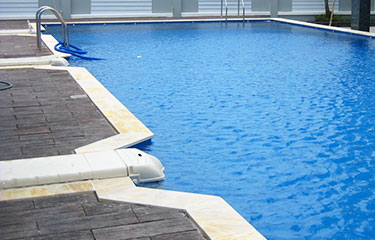

MX25 in situation





MMX25 in situation

Technical features


Maximum volume of pool
110m³
Bodywork
ABS - PMMA anti-UV thermoformed
Filtration pump
Speck
Capacity of filter pump
1,1kW (1,5HP)
Waterflow
25m³/h
Filtering system
2 removable polyester cartridge filters
Filtering area
9m²
Filtering capacity
25 microns
Lighting options
White LED feature (Secure, very low current transformer)
Locking system on lid
Yes
Anchoring system on unit
Yes (Can be fitted without masonry work)
MX25 inside view


Skim vac
The supplied Skim Vac allows you to connect a manual brush or a hydraulic pool cleaner to your filtering monobloc.

Description of elements Filtrinov MX25 Standard filtration monobloc


A. Soundproof removable lid with locking function.

B. Filter (automatic or manual) and lighting feature control box.

C. Inground sector containing the filter pump and optional equipment.

D. Skim Vac allows the connection of a brush or a pool cleaner.

E. Two removable filter cartridges with collector baskets.

F. Balneotherapy (Air regulator knob).

G. Skimmers, two openings creating suction inlet.

H. Adjustable, high debiting, discharge nozzles.

I. LED lighting feature.
Technical features MX25


Optional equipment


The evolving standard model of the MX25 can add on options even several years after installation :

- Salt electrolyser : Using this method the maintenance of your pool water is entirely automated, even during your absence. The electrolyser produces the required amount of chlorine, avoiding manual intervention.

- Automated pH regulation of your pool water.

- By-pass valve (3-way) allowing connection to a heat pump or other heat source.

- Counter current unit boasting a flow of 36m³/h, creating a current for on the spot swimming.

- Colour LED projector + remote control (carrying range 8m) to create varied lighting atmospheres in your pool.

Salt electrolyser option


It is possible to add to the Filtrinov MX25 a salt electrolysis system. This system ensures ecological and economical pool water disinfection by chemical reaction, destroying bacteria present in your pool water by chemical reaction.
Using this system, it is no longer a requirement to add treatment products, such as chlorine, to your pool water.
This procedure leads to automated water treatment, resulting in pure, clear pool water.

This option also offers pool water that will not provoke allergic reactions or irritations and is odourless.
Salt electrolysis option

PH regulator option


Your Filtrinov MX25 can now integrate a pH regulator adjusting the pH level of your pool water automatically.
This equipment ensures that your water is regulated at the desired pH level, controlling the acidity using a probe. A poorly balanced pH level can alter the efficiency of maintenance products and have negative effects on your pool and its equipment.
You can equally opt for the MX25 with integrated pH regulator and salt electrolysis system. Once coupled, these two options offer hassle-free, pool maintenance.
Inside view MX 18

Combination of pH regulator and salt electrolysis - operational schema

Operational schema MX 18

1
Power supply
2
Control box
3
Filter
4
pH sensor
5
Filtration pump
6
pH dosing pump
7
pH correction liquid
8
pH injection liquid
9
Salt electrolysis


By-pass valve (3-way)


You can equally connect your pool to a heating system such as a heat pump, to guarantee an agreeable pool water temperature all year round.

This happens by capturing the calories naturally present in the environment and rendering them into your pool water. This ecological and economical method significantly lengthens your swimming season.

You can cumulate the salt electrolyser and by-pass valve options.
By pass valve option


Counter current option


This option has been designed for recreational family use.
Easily connected to a secondary pump, without modification to your filtration bloc.

Offering a flow of 36 m3/h providing massage and swimming pleasure to adults and children alike.
Counter current option


LED + remote control option


Personalise your pool atmosphere using varied gradients of red, green and blue colour palette is now possible. Easy installation, completed in a few minutes.

The remote control has a carrying range of 8 meters, offering total freedom of movement.

A LED bulb consumes less, requires less maintenance as well as a lifespan superiour to a classic bulb.
Option LED and remote control

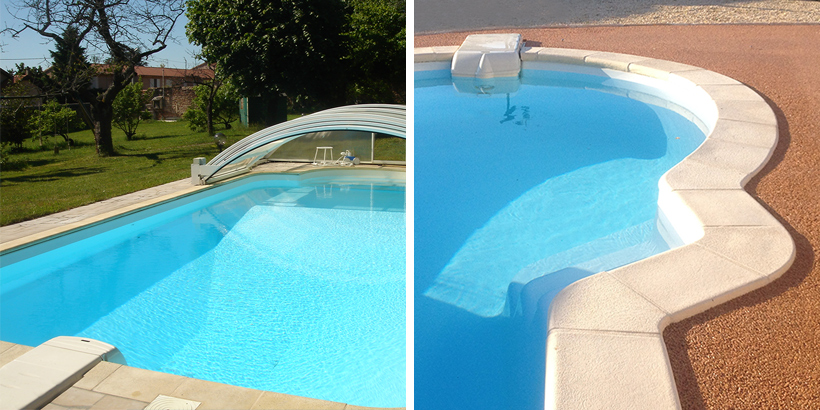

MX25 filtration bloc in situ
MX25 in situ


Dimensions of Filtrinov MX25 filtration monobloc in mm


Dimensions MX25
Waterlevel (A), Gradient 2% (B), Pool structure (C) pool border level (D

Schema Filtrinov MX25 filtration bloc


1 Filtration pump, 2 Black PVC tube, 3 Filter cartridges, 4 Discharge nozzles
MX 25 non evolving filtration monobloc
Filtrivov MX25 standard non evolving filtration monobloc
MX25 evolving filtration monobloc
Filtrivov MX25 standard evolving filtration monobloc

Packaging and transport of the monobloc



Packaging MX25
The Filtrinov MX25 filtration monobloc is delivered in a wooden case, 2 persons can reception the delivery.

All deliveries must be checked in the presence of the transporter.

Warranty

2 years

Photos non-contractual
