Poolex Universal U-Connect connection kit for heat pump

U Connect connection kit
Recommended retail price 2017 :
504 €
Our Price :
399 € Including VAT
Ref. 015389
Poolex Universal U-Connect connection kit for heat pump
EUR 399.00
In stock

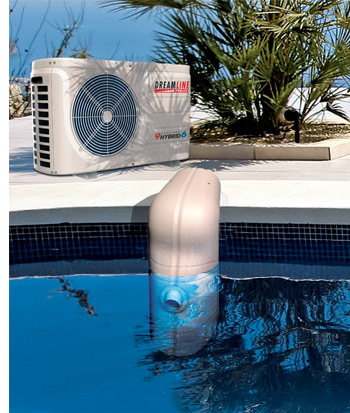

The Poolex Universal U-Connect connection kit for heat pumps allows you to link your heat pump directly to your pool.

Avoiding the need of a by-pass in the plumbing system, a simple, innovative and ultra-fast solution.

Universal kit: compatible with all types of pools and all heat pumps.


In detail


The Poolex Universal U-Connect connection kit is the fastest and easiest way to connect any heat pump to your pool without plumbing or tools.

It is electrically powered by the heat pumps transformer and does not require any supplementary power supply.

The connection kit contains a self-priming pump and is put into use very easily using only the swimming pool water.


1"1/2 male couplings and a 230V/12V transformer are provided with the U-Connect system. This equipment guarantees a universal compatibility.

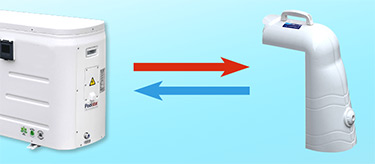

The internal U-Connect system automatically self-primes your swimming pool's water circuit. This allows water to circulate continuously between your pool and your heat pump.


Why choose Poolex Universal U-Connect?


• Labour free.

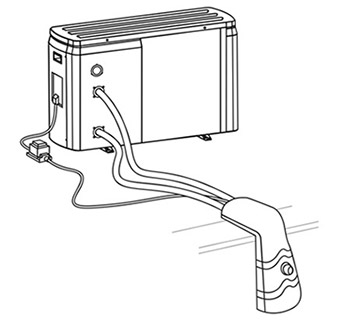

• Simple and fast connection: 2 pipes and a power cable between the heat pump and terminal box.

• Adapts to all pools. Portable terminal box to be positioned on the side of the swimming pool.

• Can be used with any heat pump.

• System is independent to filtering system.

• Self-priming pump for a simple start up.

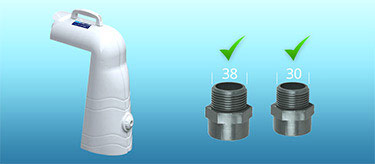

• Complete kit with pipes and fittings adapted to Ø1,5". If the connection diameter of your heat pump is larger, you should order the other adaptors available on option.

• Designed for intensive use.

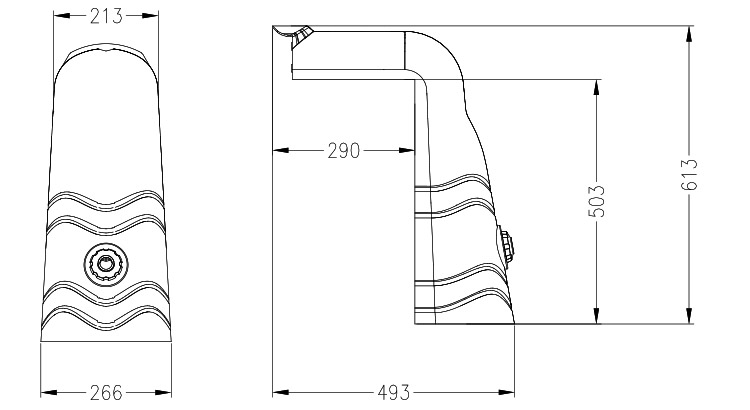

Dimensions in mm



Composition of pack


- 1 unit Universal Poolex U-Connect
- 2 pipes, 6 metres, Ø1,5"
- Transformer 230/12V + Cable 8 m
- 1 power socket
- 1 mounting kit
- 2 connection pipes PAC/UC 6 m
- 2 couplings PAC Ø 30/38 mm
- Hermetic seal washers

Power supply
230 V
Pump motor
12V / 85W
Index of protection and sealing
IPX8
Minimum/maximum flow
3.8m3/h / 5.2 m3/h
Connector
1"1/2

Warranty

2 years

Photos non-contractual
Price incl. VAT
