Heat pump PSA Optipac 10 Tri

Pool heating and dehumidification

Heat pumps for swimming pools

Pool heat pumps ZODIAC

Heat pump PSA Optipac 10 Tri

Printable
Version

Our Price

Consult us

Installation/maintenance package
Maximum pool volume 220 m³
Three-phase

In stock

This product is no more available.

Key functions

Swimming Poolthree-phase heat pump OPTIPAC 10 Tri is an ideal solution for swimming pools with up to 220 m3* water volume. Its efficiency and equipment offer great value for money. You will not feel any presence of the OPTIPAC 10 Tri in your pool environment as they are very silent and compact units. Thanks to the thermostat and water flow manometer you can easily control its functioning and water temperature. As the water flow is controlled automatically, the OPTIPAC 10 Tri heat pump starts and stops by itself enslaved by the filtration pump unit.

Hydraulic Ø 63 PVC plumbing by-pass adjusted to the filtration unit. Two Ø 63 PVC adapters included.

Heating output*

30kW

Energy input*

8kW

COP**

3,75

Maximum pool volume

220m³

Average water flow

15m³/h

Pressure drop (mCE)

1,5

Voltage

400 V / 50 Hz

Absorbed intensity

16,3A

Acoustic power

75dBa

Acoustic pressure at 10m

47dBa

Weight

295kg

TITANIUM exchanger

life warranty against corrosion

Rotary scroll compressor

Yes (very silent)

Temperature regulator

with LCD screen

Water flow controller

Yes

Conform to european standarts

Yes

Body

anti-corrosion

Refrigerant fluid

R410A

** Private pool with insulated cover, from May to September, Air at 15°C.
** Coefficient of performance = Heating output / Energy input.

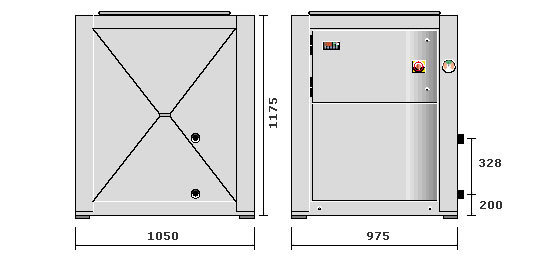

Dimensions de la pompe à chaleur OPTIPAC 10
