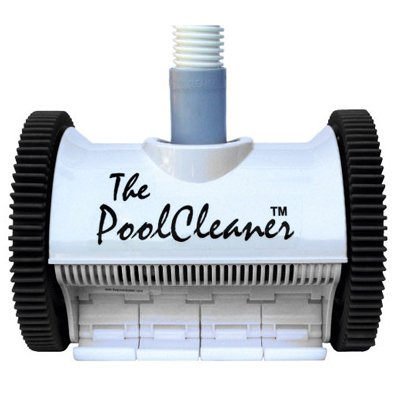

The Pool Cleaner electric pool cleaner
EUR 329.00
Hydraulic pool cleaner,
Simple connection using brush adaptor or skimmer,
Compatible with all pool types, above ground or inground
Supplied with 10 x 1m pipe
In stock
The Pool Cleaner is simply connected to the skimmer or brush adaptor of your pool.

Featuring a blade turbine, The Pool Cleaner can operate even with a low water flow (5m³/h).

Large format suction mouths vacuum bigger debris and dirt.

The Pool Cleaner from Hayward is installed in only a few moments and requires no adjustment.

Technical requirements


System
Hydraulic suction
Installation
Brush adaptor or skimmer
Filtration capacity
5m3/h
Trajectory
Random
Use
3h30 to 4h/day
Programs
None
Dirt and debris
Dust, sand, gravel, leaves
Connection
Brush adaptor or skimmer
Weight
10kg
Maximum dimensions pool
10 x 5m
Standard pipe
10 x 1m
Guarantee
2 years

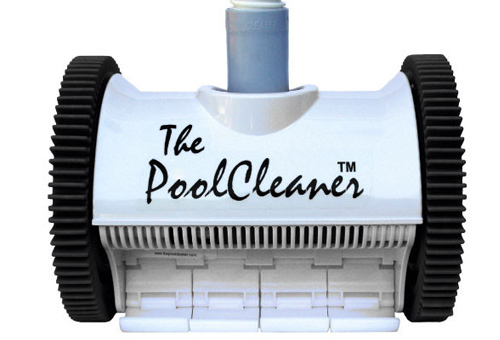

The Pool Cleaner


The pool cleaner uses a pre-programmed command system that directs the unit to a regular left turn, to change trajectory.

3 different programs exist to modify directional angle, allowing 3 to 5m of linear cleaning before a change of direction.
Cogg system The Pool Cleaner
Spacer20
Spacer20


A cog is placed on each wheel of the unit, easing extraction from many types of situations.

Large format rubber wheels allow the unit to move easily over any pool finish.

Because of its independent shutter system, The Pool Cleaner adapts perfectly to any shape of pool.

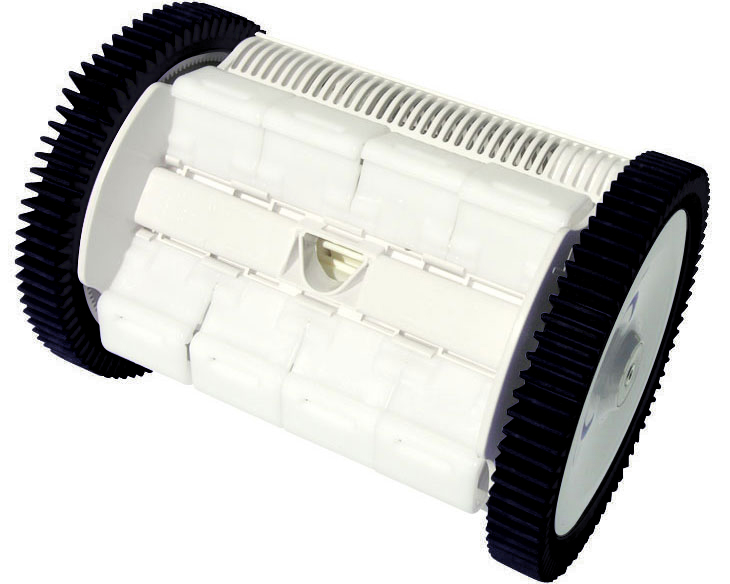

Underview The Pool Cleaner

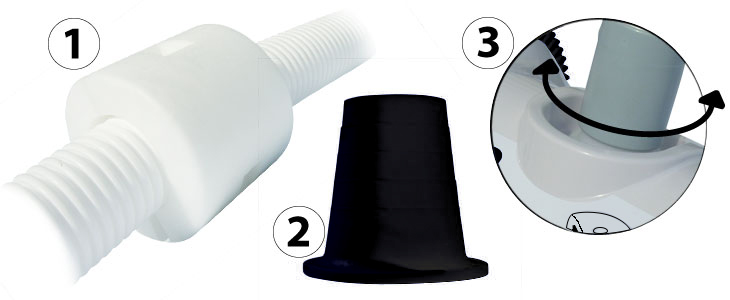

Pipe connections The Pool Cleaner

To facilitate trajectory, the pipe is lined to the unit via a free turn connection (3). In the kit, you will equally find a clip-on counterweight to adjust pipe buoyancy (1) and a connection sleeve for the brush adaptor (2).

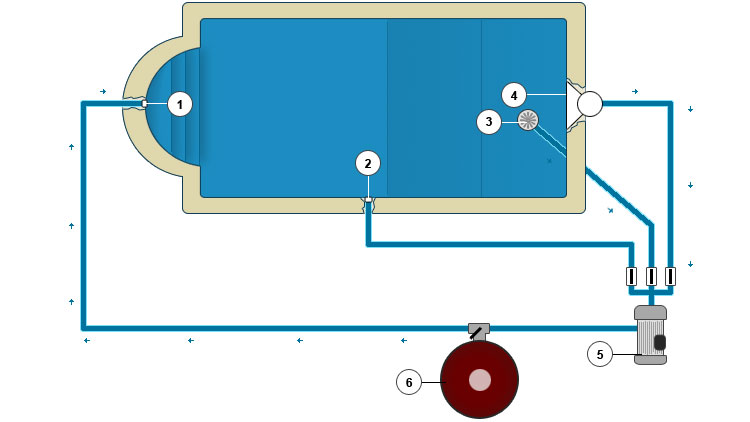

Connection schema


Connection schema The Pool Cleaner

Discharge (connection to cleaning unit possible) (1), Brush adaptor (2), Main drain (3), Skimmer (4), Pool pump (5), Filter (6)]

Warranty

2 years

Photos non-contractual
