REDOXMATIC liquid chlorine or bromine dosing pump

REDOXMATIC liquid chlorine or bromine dosing pump
Recommended retail price 2017 starting from :
828 €
Our Price starting from :
579 € Including VAT
Ref. 017543
Redoxmatic EV with electro valve, without difusser
Regulation by Redox measurement,
Separate control box and dosing pump,
For pools up to 500m3,
Large, backlit LED screen,
Ready to install
Command module factory tested and probe pre-calibrated
In stock
REDOXMATIC PP with dosing pump, flow fixed at 1,5L/h
Ref. 000557
EUR 682
682 €
Order Free quote
REDOXMATIC PP with varied flow dosing pump up to 7L/h
Ref. 012217
EUR 749
749 €
Order Free quote
REDOXMATIC EM electro magnetic dosing pump 5L/Heure
Ref. 006889
EUR 749
749 €
Order Free quote
REDOXMATIC EM electro magnetic dosing pump 10L/H
Ref. 011482
EUR 1019
1019 €
Order Free quote
Redoxmatic EV with electro valve, without difusser
Ref. 017543
EUR 579
579 €
Order Free quote
Redoxmatic EV with elecro valve and diffuser - by pass diam. 50mm
Ref. 009686
EUR 699
699 €
Order Free quote
Redoxmatic EV with electro valve and diffuser - 63mm by pass
Ref. 011485
EUR 709
709 €
Order Free quote
REDOXMATIC with Venturi injection
Ref. 002041
EUR 772
772 €
Order Free quote
Dry run sensor option for dosing pump
Ref. 011477
EUR 199
199 €
Order Free quote
The Redoxmatic dosing pump automatically regulates the liquid chlorine or bromine in all pools up to 500m³.

Using an integrated double regulating system, many injection configurations are possible and adaptable to all pool types, residential or public.

Redoxmatic permanently measures the chlorine or bromine content in your pool water. When the measurement no longer matches the programmed valour, Redoxmatic sends a proportional dose of correcting liquid to the filtration circuit.

Composition of the Redoxmatic


Redoxmatic is 100% automatic and fully equipped. This unit is capable of the analysis and regulation of multi-products. Using a command module and respective pump, you can, without intervention, maintain the desired level of product in your pool water, regardless of volume and pool configuration.

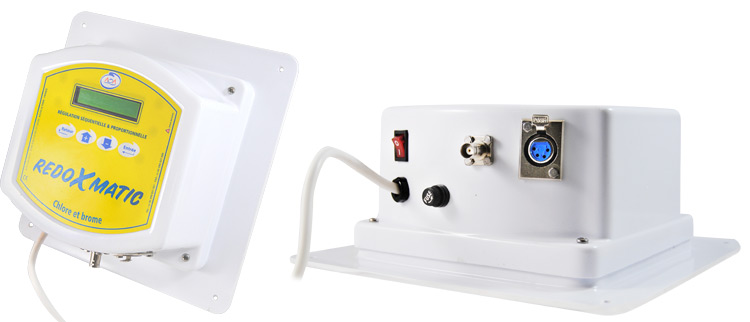

Redoxmatic module


The Redoxmatic module is an automatic regulation unit for liquid chlorine or bromine and allows the control of a dosing pump or electro valve which sends a disinfecting product into your pool water when the programmed level is out of range.
Using a backlit LCD screen, the level of product in the pool water is permanently displayed.

REDOXMATIC liquid chlorine or bromine dosing pump

Dosing pump option


To enable product injection, the Redoxmatic module controls a dosing pump. You can select from several types of dosing pumps the one which is best suited to the volume and needs for your pool :

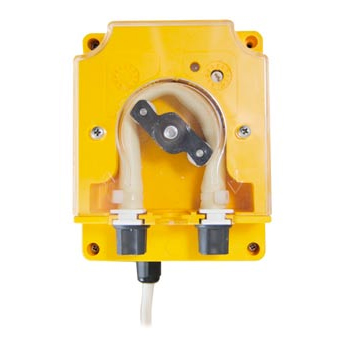

Redoxmatic PP : with peristaltic pump


REDOXMATIC liquid chlorine or bromine peristaltic dosing pump

2 types of peristaltic pumps are available :

Set flow

Flow
Set at 1,5l/h and 1,5 bars
Tube
Santoprene (long life)
Recommended for
Residential pool up to 150m³

Variable flow

Flow
Variable between 0 and 100%, maximum 7l/h at 1,5 bars
Tube
Santoprene (long life)
Recommended for
Residential pool up to 300m³ or public pool up to 250m³

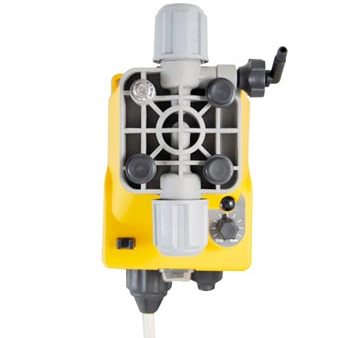

Redoxmatic EM : with electromagnetic pump


REDOXMATIC liquid chlorine or bromine electromagnetic dosing pump

2 possible configurations :

1 pump for a variable flow of 5l/h

Flow
Variable between 0 and 100%, maximum 5l/h at 5 bars
Tube
Santoprene (long life)
Recommended for
Public pools up to 350m³

2 pumps for a variable flow 10l/h

Flow
2 adjustable pumps 2 x 5l/h at 5 bars
Tube
Santoprene (long life)
Recommended for
Public pool up to 500m³


We strongly recommend the use of a dry run sensor.
Redoxmatic EV : with dosing pump option + Electro valve with tablet diffuser

If you opt for water sterilisation using bromine or chlorine tablets, an electro valve will manage your tablet diffusor.
Electrovalve for REDOXMATIC liquid chlorine or bromine dosing pump

Spacer20Spacer20Spacer20Spacer20Spacer20Spacer20Spacer20Electro valve
Tablet diffusion for REDOXMATIC liquid chlorine or bromine dosing pump

Spacer20Spacer20Spacer20Spacer20Spacer20 SPLASH 4kg tablet diffusor


The electro valve is available with or without tablet diffusor.

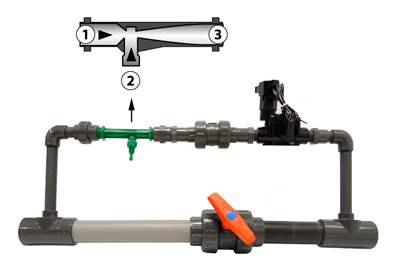

Redoxmatic with Venturi effect

Venturi injection for REDOXMATIC liquid chlorine or bromine dosing pump
Venturi automatic injection system without dosing pump, including 24V electro valve, recommended for residential or public pools and spas.

A Venturi injector is installed using a by pass. The water inlet (1) generates a depression, provoking suction of the water treatment product (2). Water returns to the pool (3).
When the Redoxmatic detects the product is at the correct level the electro valve stops suction.

Installation schema

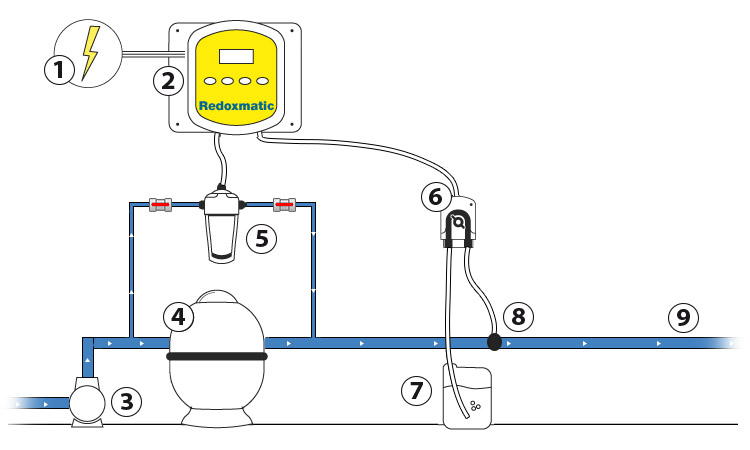

Redoxmatic with dosing pump
REDOXMATIC liquid chlorine or bromine with dosing pump

1. Power supply
2. Redoxmatic module
3. Pool pump
4. Pool filter
5. Redox sensor in analysis chamber (on option)
6. Pump (peristaltic model shown)
7. Chlorine suction
8. Chlorine injection
9. Discharge towards pool

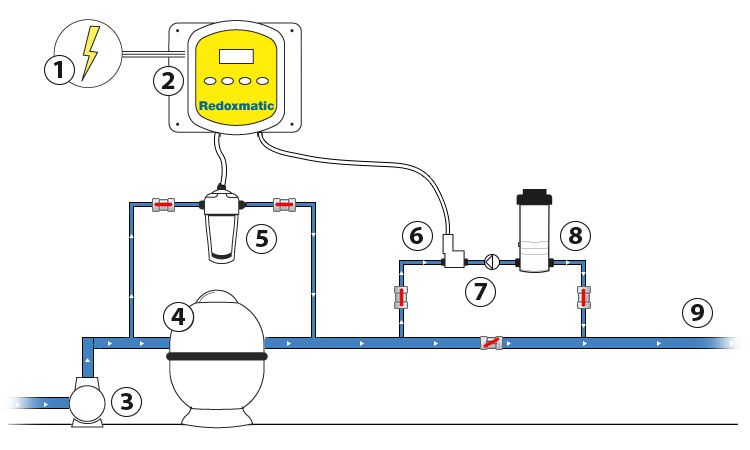

Redoxmatic EV with electro valve and tablet diffusor
REDOXMATIC liquid chlorine or bromine dosing pump with electro valve and tablet diffusion

1. Power supply
2. Redoxmatic module
3. Pool pump
4. Pool filter
5. Redox sensor in analysis chamber (on option)
6. Electro valve
7. Anti-return valve
8. Diffusor
9. Discharge to pool

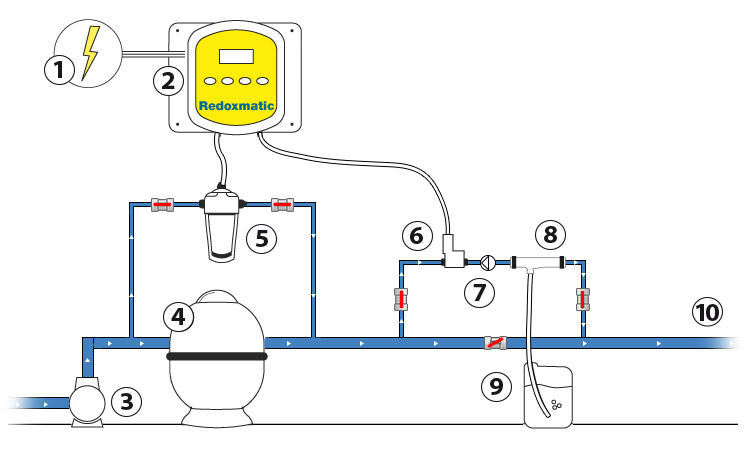

Redoxmatic with electro valve and Venturi effect injection
REDOXMATIC liquid chlorine or bromine dosing pump with venturi effect

1. Power supply
2. Redoxmatic module
3. Pool pump
4. Pool filter
5. Redox sensor in analysis chamber (on option)
6. Electro valve
7. Anti-return valve
8. Venturi effect injection
9. Chlorine
10. Discharge to pool

Technical features


Display
Water information and errors
Norms
IP65 dosing pumps
Kit
Delivered ready to install
Installation
Factory set, installation on all existing systems in a few minutes

The kit includes :


- 1 automated chlorine/bromine with LCD setting screen and error signals
- 1 offset dosing pump (to choose from : peristaltic with a set flow, peristaltic with a variable flow or electro magnetic with a variable flow) or 1 electro valve with or without tablet diffuser or 1 electro valve with injection by venturi effect and anti-return valve.
- 1 redox sensor, pre-calibrated to analyse levels present in the pool water (chlorine or bromine),
- 1 sensor support,
- 1 tube injector and clamp saddles (50 or 63mm) depending on model or to be defined when ordering

Optional accessories


- Analysing chamber

The Analysing chamber and probe holder holds and protects the sensor that analyses your pool water. When using an analysing chamber, the probe is always in an aquatic environment, lengthening its lifespan. A probe kept in an analysing chamber can be used for up to 4 years compared to 1 to 2 years without.

Analysis chamber

- 50 or 63mm connection kit for analysing chamber.
- Dry run sensor compatible with electro magnetic pumps.
Dry run sensor


The Redoxmatic modules and sensors are tested and calibrated at factory settings before being sent to you. You will receive it ready to use.

Warranty

2 years excepting wear and tear parts

Photos non-contractual
Price incl. VAT
