Zodiac POWER FORCE heat pump

Zodiac POWER FORCE
Recommended retail price 2017 starting from :
9948 €
Our Price starting from :
9840 € Including VAT
Ref. 010005
Zodiac POWER FORCE 25 heat pump Three-phase
New range of heat pumps Zodiac PSA,
Models for all seasons, operational up to -12°C,
Lifetime guarantee for exchanger.
  • New
  • Maximum pool volume 200 m3
  • Defrosting function
  • Titanium exchanger lifetime warranty
  • Three-phase
In stock
Zodiac POWER FORCE 25 heat pump Three-phase
Ref. 010005
EUR 9840
9840 €
Order Free quote
Zodiac POWER FORCE heat pump 35 Three-phase
Ref. 010006
EUR 13935.60
13935.60 €
Order Free quote
The most powerful and silent heat pump in the ZODIAC range, for use throughout the seasons.

The Zodiac Power Force heat pump is recommended for pools with a volume between 100 and 200 m3.

Advantages


- High powered: 2 models, 25 and 35 kW
- Three-phase electrical supply (400 V)
- Very quiet: feeble noise level
- High performance
- European construction

Features


Air / water monobloc heat pump.
Outdoor installation.
Anti-corrosive TITANIUM condenser.
High-performance evaporator.
Automatic silence mode.
Digital control with priority for water heating.
Rotary Scroll compressor with soft-start.
Water flow detector with digital control.
Reversible function enabling the pool water to be cooled.
HP and LP security pressure switch.
Portable control module (consult us).
Inverter technology fan: economically and quietly run.
Automatic defrost by cycle inversion.
Frost protection thermostat (stops at -12 °C).
Anti-corrosion treatment on bodywork.
R 410A cooling liquid.
Hydraulic PVC connections Ø 63 to be stuck with solvent cement.
Three-phase electrical supply (400 V / 50Hz)
Zodiac POWER FORCE

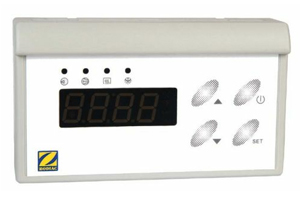

Digital control panel
Portable control module (consult us)

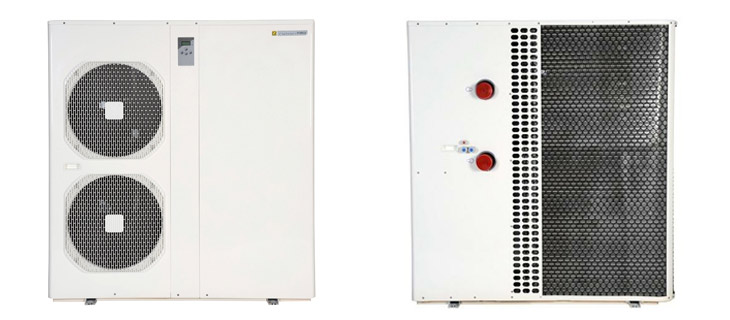

Front and back view Zodiac Power force

Zodiac POWER FORCE heat pump - Front view
Zodiac POWER FORCE heat pump - Back view





ModelPower Force 25 three-phasePower Force 35 three-phase
Reference ZodiacW20PFORCE25TDW20PFORCE35TD

Conditions of use 1: Air at 15ºC/Water 24ºC/ Humidity 70% (Zodiac figures)
ModelPower Force 25 three-phasePower Force 35 three-phase
Power input (kW)5,37,3
Power output (kW)26,536,5
COP55

Conditions of use 2: Air at 28ºC/Water 28ºC/ Humidity 80%
ModelPower Force 25 three-phasePower Force 35 three-phase
Power output (kW)3345,5
COP5,45,3

Conditions of use 3: Cooling
ModelPower Force 25 three-phasePower Force 35 three-phase
Power output (kW) at +7°C2225,5
Power output (kW) at +2°C1621

ModelPower Force 25 three-phasePower Force 35 three-phase
Minimum water flow (m3/h)1010
Volume of pool* (m3)100 to 150150 to 200
Friction loss (mmca)1,31,3
Nominal amperage (A)10,612,9
Maximum amperage (A)14,218,1
Hydraulic connections1/2 threaded PVC connections Ø63 to be used with solvent cement1/2 threaded PVC connections Ø63 to be used with solvent cement
Supply cable section (mm2)**5 x 45 x 4
Protection ratingIP 24IP 24
Net weight (kg)205205

*Residential pool with thermal cover, between 15 May and 15 September. Air temperature 15 º C
** For a maximum length of 20 metres.

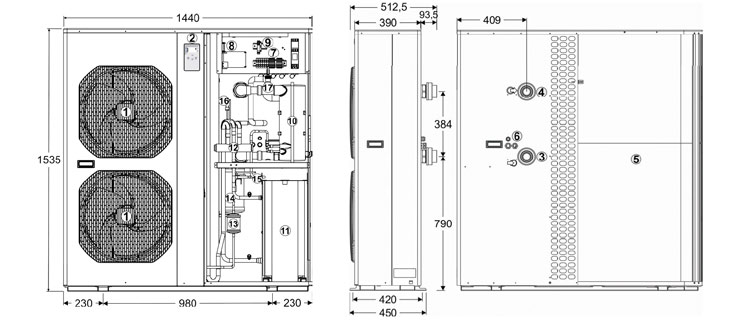

Description and dimensions (in mm)


Dimensions and description Zodiac power force


1 - Grill
2 - Display
3 - Pool water inlet Ø63
4 - Pool water outlet Ø63
5 - Evaporator
6 - Cable gland
7 - Power terminal block
8 - E-card
9 - Fuse
10 - Condenser
11 - Compressor
12 - 4-way valve
13 - Dehydrator
14 - Cooling liquid (R 410A)
15 - HP security pressure switch
16 - BP security pressure switch
17 - Flow rate controller


Dimensions (L x w x H) = 1440 x 450 x 1535 mm

Installation


Outdoor installation in proximity to the technical house.
PVC hydraulic connections Ø63, using a by-pass from the discharge circuit (see schema)
Anticipate a distance of 50cm between the back of the heat pump and the wall.
Avoid obstacles in front of the heat pump for a distance of 4 - 5m.
Fit a 30mA circuit breaker (not included).
Heat pump installation
Installation schema

1. Cold air outlet
2. No surrounding obstacles for 4 to 5 m.
3. Heat pump
4. 0,50m minimum
5. Water treatment
6. Pump
7. Filter
8. Suction
9. Discharge
10. Hot air inlet
11. By-pass


OPTION: U-CONNECT connection kit


U connect in situation
Schema U connect


The U-Connect connection kit links a heat pump to your pool without labour, plumbing or tools. his quick intervention does not require a supplementary power supply and avoids the need for a by-pass. Just connect the two supplied pipes to your Zodiac Power Force heat pump, and link to the portable U-Connect control box. Self-priming, the U-Connect system stays independent from your filtering system. You get hot water, faster, without losing heat through piping as is often the case in a classic configuration.

Warranty

lifetime guarantee on exchanger
2 years on all other parts

Photos non-contractual
Price incl. VAT
