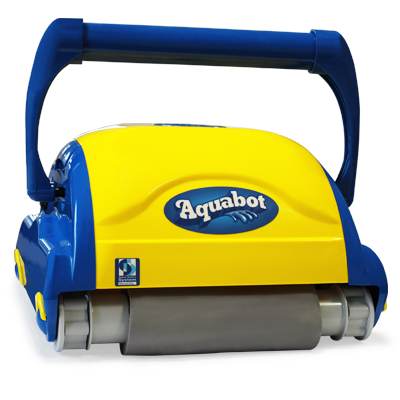

Aquabot Bravo

Aquabot Bravo electric pool cleaner
Recommended retail price 2017 starting from :
1309 €
Our Price starting from :
739 € Including VAT
Ref. 000015
Aquabot Bravo electric pool cleaner
For pools with a maximum volume of 80m²
Cleans the bottom, wall surface of pool and waterline
Aquasmart fast cycle cleans in 2h
Includes high-density PVA brush and transportation trolley
In stock
Aquabot Bravo electric pool cleaner
Ref. 000015
EUR 739
739 €
Order Free quote
Bottom Access 20 micron reusable Cassette for Aquatron Pool Cleaners
Ref. 022747
EUR 68
68 €
Order Free quote

Aquabot Bravo electric pool cleaner in detail


The Aquabot Bravo pool cleaner is a reference in terms of pool cleanliness. Performant and economic, featuring last generation, high rotation speed 24V motors, associating efficiency with dependability.
It's developed program optimises the trajectory of the unit during its cycle, complete with an anti-blocking system allowing an automatic change of direction (avoiding overheating and lengthening lifespan).
Using the Aqua Smart system, your pool is cleaned in 2h. The high-density PVA brushes combine long lifespan and adhesion.
The included transportation trolly allows easy portability of the Aquabot Bravo and the possibility to store the unit without its brushes touching ground level.



Included equipment



High-density PVA brushes are adapted to all swimming pool finishes (concrete, liner, reinforced PVC, fibreglass, mosaic...), allowing free movement of the unit, cleaning the walls and waterline of the pool.

The PVA brushes prove to be more resistant than classic PVC brushes and can adapt to a rough surface, with a longer lifespan.

Using a Dacron bag that has filtering power close to 2 microns, even the finest particles are captured, complementing the filtering action of the pool, therefore reducing the amount of chemical water treatment products used.
Aquabot Bravo filter and brush

Aqua Smart system


The Aquabot Bravo uses the Aqua Smart system, permitting a full pool cleaning cycle in only 2h.

Most traditional pool cleaners need 3 to 6 hours to effectuate the same cycle.

The Aquasmart system is an evolved program integrated to the cleaner's microprocessor. The result is a systematic movement of the unit throughout your pool without wasting time.

This technology indicates a number of advantages:

- Fast cleaning
- Economy of energy
- A longer lifespan with less wear and tear on mechanical parts

Gyro system


The Bravo is equipped with a new intelligent navigation system called "Gyro". Capable of correcting trajectory depending on the configuration and dimensions of the pool using precise directional control.

Every 60 seconds (in NORMAL mode) or every 20 seconds (in HIGH mode), the unit scans it's environment and adapts its trajectory to optimise the cleaning cycle.


In the case of poor trajectory :
1. Without the Gyro system, the Bravo does not correct trajectory
2. When using the Gyro system, the Bravo corrects trajectory independently.

When cleaning the pool contour and right angles :
3. Without the Gyro system, the Bravo cannot perfectly mirror right angles
4. When using the Gyro system, the Bravo snugly fits 90° angles
Aquabot Gyro system

Easy to use


The Aquabot Bravo is driven by economic, 24V motors.
Totally independent, it works without being connected to your pool filtering system. No specific installation requirement or program check required with minimum maintenance.

Instructions for use: Place the cleaner in your pool (firstly, immersing in the pool water, held by the handle to evacuate air), plug in and start cleaning cycle! When it's work is finished the Aquabot Bravo switches off automatically!

Aquabot Bravo and transformer

Undercarriage and bag, Aquabot Bravo

Low tension current transformer (1), Aquabot Bravo pool cleaner (2), Motor bloc, Aquabot Bravo (3), Ultrafine 2 microns filter bag on its support(4).

Pool cleaner complete with protection system


If the unit is put into action out of the water, the automatic security mode protects unit as a whole, including pump and current transformer... If the low current transformer is put into use without the pool cleaner it is automatically stopped after 10 to 15 seconds.

For pools featuring an immersed border (or infinity pool), the pool cleaner inverses its movement as soon as it emerges after reaching the water's edge. In the case that the unit does not return to the water, it automatically goes to security mode, (including its low current transformer).

If the cleaner meets an obstacle in its path (ladder, lamp, discharge nozzle, pool cover or any other horizontal or vertical object) the cleaner is programmed to move around the obstacle in question and continue its cycle.

If an obstacle becomes stuck between the body of the unit and it's brush (a towel or cable...), the unit will try to distance the object in question to continue its cycle. If this fails, the pool cleaner (including its transformer) will adopt security mode automatically.

If the pool cleaner turns over and cannot continue its movements, the pump will operate for 5 seconds. The drive system will forward/reverse and then go to security mode.

Aquabot Bravo electric pool cleaner

The Aquabot Bravo pool cleaner is delivered with transportation trolley, low current transformer and 1 filtration bag.

On option


You can choose to order a filtration cassette, designed to replace the filtration bag which is supplied with the cleaner.

When using the cassette, you no longer have to worry about cleaning efficiency: you will always have spare equipment.
To clean and reuse, just empty, rinse in clear water and replace.

Filtering capacity of the cassette is 20 microns.
Filtration cassette Aquabot Bravo

Technical features


Power supply
230V /50 Hz – 115V / 60Hz
Low tension power supply
DC-24V
Suitable pool shapes
Rectangular, round, oval or specific shape
Compatible pool finish
Liner, PVC, ceramic, fiberglass, painted concrete
Maximum pool dimensions
80m²
Areas cleaned
Bottom, walls and waterline
Cleaning brush
2 PVA brushes
Suction power
18m3/h
Filtering capacity
2 microns
Number of cycles
1
Duration of cycle
2h
Cleaning system
Aqua Smart
Propulsion motor
1
Suction motor
1
Length of cable
18m
Out of water detector
Yes
Obstacle detector
Yes
Transportation trolley
Yes
Dimensions and net weight of cleaner
L37 x l43 x H27cm/ 19Kg (with trolley)

For pools with a compact filtering unit


Check the space situated between the immersed section of the compact filter and the bottom surface of your pool is deep enough to accommodate the cleaners movement, avoiding the cleaner to be "stuck" during its cycle.

See the whole Aquabot range

Warranty

2 years

Photos non-contractual
