Aquabot Viva electric pool cleaner

Aquabot Viva electric pool cleaner
Recommended retail price 2017 starting from :
1785 €
Our Price starting from :
1299 €
1249 € Including VAT
Offer ends 30/06/2017
Ref. 000728

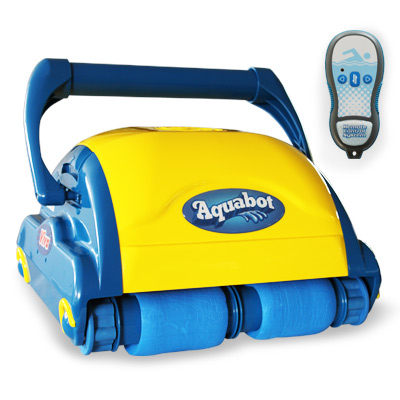

Aquabot Viva electric swimming pool cleaner
For residential pools up to 100m²,
Obstacle detection,
Aqua Smart and Gyro cycles,
PVA high-resistance brushes,
Remote control and transportation trolley
Compatible with all types of pool finish
In stock
Aquabot Viva electric swimming pool cleaner
Ref. 000728
EUR 1249
1299
1249 €
Order Free quote
Bottom Access Cassette for Aquatron Pool Cleaners
Ref. 022747
EUR 68
68 €
Order Free quote

The Aquabot Viva in detail


The Viva is designed to maintain pool cleanliness, even in the most difficult corners. Cleans the pool floor, walls and waterline in depth.
Equally capable of operation in reverse, grids out your pool in record time.

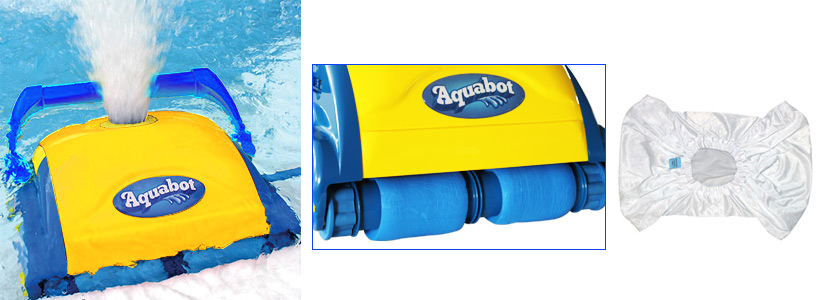

PVA brushes and filtering bag Aquabot Viva electric pool cleaner

Integrated twin traction motors clean even the most persistent dirt and debris to offer impeccable swimming quality and cleanliness.

The Aquabot Viva features vibrating PVA brushes that clean all surfaces by scrubbing impurities. PVA is a compact, high-density and resistant material.

Featuring an anti-blocking system, the cleaner automatically changes direction avoiding overheating and premature wear and tear. The Aquabot Viva does not require a specific installation, just place the unit in the pool water. Its maintenance is minimal. After finishing its cycle, it stops automatically.

Features


Automatic obstacle detection


If this mode is activated, the cleaner will detect when to change direction if an obstacle is met in the pool.
If the cleaner meets an obstacle in its path (ladder, lamp, a discharge nozzle, pool cover or any other horizontal or vertical object) the cleaner is programmed to move around the obstacle in question and continue its cycle. If this fails, the pool cleaner (including its low current transformer) will adopt security mode automatically.


Selection of pool shape


Cleaning action will vary depending on the pool shape. There is a menu choice of three pool shapes - choose the one which is closest to your pool. Pool cleanliness is therefore ensured in optimal time.

Available cleaning programs


The Viva provides a choice of three cleaning programs:
- program 1 : cycle 1h30 : the pool floor only will be cleaned
- program 2 : cycle 2h : the floor, walls and water line will be cleaned
- program 3 : cycle 2h30 : the floor, walls and waterline will be deep cleaned

Aquabot Viva electric pool cleaner

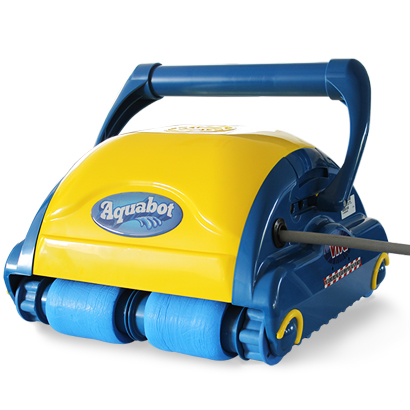

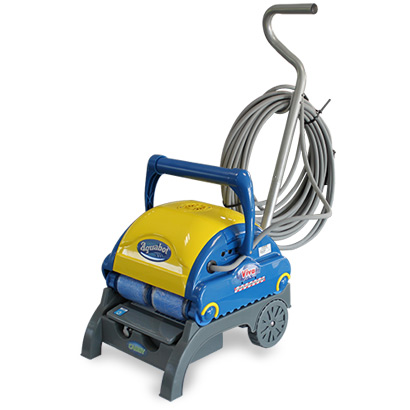

Aquabot Viva electric pool cleaner on trolley

Aqua Smart system





Aquabot Viva uses the Aqua Smart system: intelligent program integrated to the cleaners microprocessor that covers the whole surface of the pool in a systematic manner, without losing time.
The pool can be totally cleaned in only 1h30.

This system offers many advantages:

- Quick cleaning
- Saves energy
- Less wear and tear on parts

Gyro system


The Viva is equipped with an intelligent navigation system - "Gyro". The cleaner's trajectory can be corrected depending on the configuration and size of the pool by means of the precise directional control system.

Every minute (in NORMAL mode) or every 20 seconds (in HIGH mode), the cleaner scans its surroundings to determine the shape of the pool and optimise action.

In the case of wrong direction:
1. Without the system Gyro, the Viva does not correct trajectory
2. With the system Gyro, the Viva automatically corrects trajectory

When cleaning right angles in the pool:
3. Without the system Gyro, the Viva does not perfectly fit the right angles
4. With the system Gyro, the Viva fits perfectly the right angles, automatically calculating 90° angles.
Gyro technology Aquabot Viva electric pool cleaner


Trajectory Aquabot Viva electric pool cleaner

Aquacontrol technology

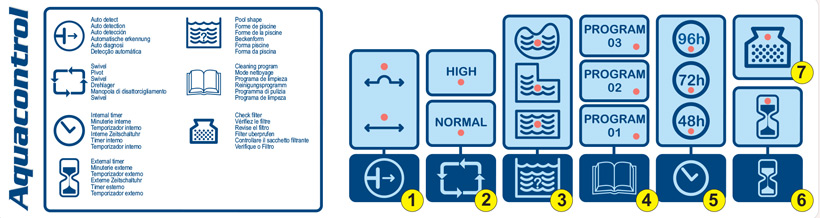

Aquacontrol system Aquabot Viva electric pool cleaner

The Aquacontrol system uses a unique control panel enabling direct communication with the cleaner, customising your cleaning program. You can program several settings, to ensure the most efficient cleaning possible for your pool.

Choice of settings :

Obstacle detection Aquabot Viva
1. Automatic detection of obstacles (ACTIVE or DISACTIVE) : Allows the unit to avoid obstacles such as cleaning systems present in your pool.
Rotation Aquabot Viva
2. Adjusts speed of the cleaner in pool (NORMAL or HIGH).
Aquabot Viva pool shape choice
3. Choix de la forme de la piscine (permet au robot de calculer le mode de nettoyage le plus adapté à la forme de votre bassin).
Program selection Aquabot Viva
4. Selections a cleaning program (1: 1,5 hours / 2: 2 hours / 3: 2,5 hours)
Internal timeclock Aquabot Viva
5. Internal timeclock : Automatic operation option (every 48, 72 or 96 hours)
Outer timeclock Aquabot Viva
6. External timeclock : Option to program cleaning cycle time via an external timeclock (not supplied)
Clogging indicator Aquabot Viva
7. A filter clogging indicator, situated on the transformer, indicates the filtration bag requires cleaning for correct operation.


Protection system


Switching on your pool cleaner out of water will put security mode into action, including the pump and low current transformer... If you switch on the low current transformer without the pool cleaner, the security mode will activate after 10 to 15 seconds.

For pools featuring an immersed border (or a Californian border), the pool cleaner inverses its movement as soon as it emerges when reaching the edge of the water. In the case that the unit does not return to the water, it automatically goes to security mode, (including its low current transformer).

If the pool cleaner turns over and cannot continue its movements, the pump will operate for 5 seconds. The drive system will forward/reverse and then go to security mode.

Equipment

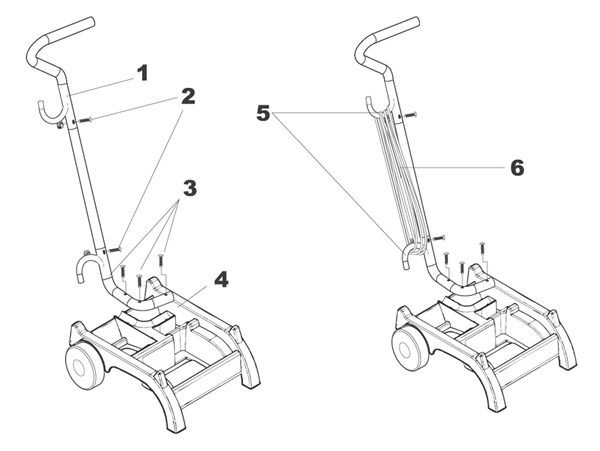

Adapted trolley


Ideal to transport and store your Aquabot Viva, the trolley is the ideal accessory.

1. Handle
2. Handle fixation screw
3. Fixation screw handle to body
4. Trolley support
5. Cable support
5. Cable
Trolley Aquabot Viva electric pool cleaner

Remote controlled unit


The Aquabot Viva is supplied with an omnidirectional radio remote control.
This remote allows your cleaner to reach zones where you require a specific cleaning method to be used.

The remote control command overrides an automatic program in use. When you stop using the remote, the automatic program will come into use again.

3 buttons are used on the remote:

- left
- forwards/reverse
- right

Attention : it is important to calibrate the remote control to the supply voltage. To do so, disconnect the cleaner from the transformer, switch ON and simultaneously press the right and left button on the remote for 30 seconds. LED will flash when the calibration is complete.

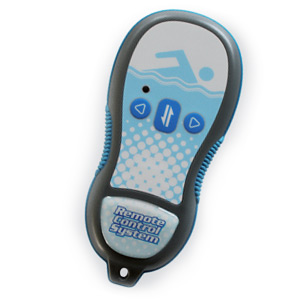

Remote control Aquabot Viva electric pool cleaner

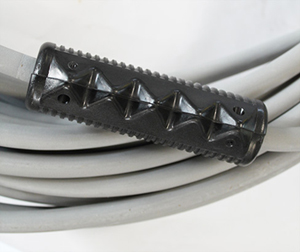

Anti-torsion handle


Anti torsion cable Aquabot Viva electric pool cleaner
This ingenious system ensures the cable of the cleaner no longer turns on itself.
Tu use, block the movable handle in the opposite position to the cleaners trajectory.
Your cable is torsion free.

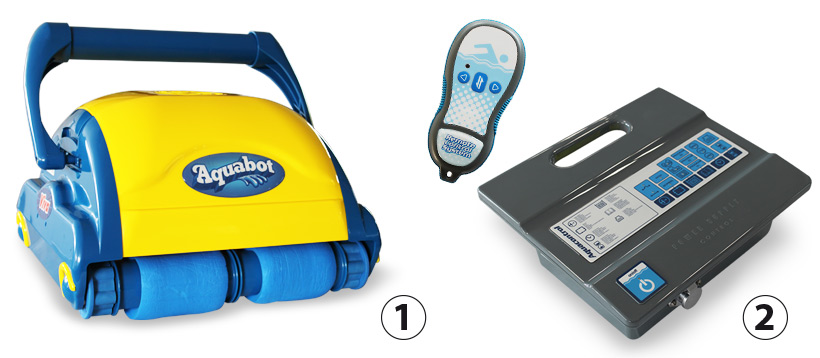

Transformer and remote Aquabot Viva electric pool cleaner

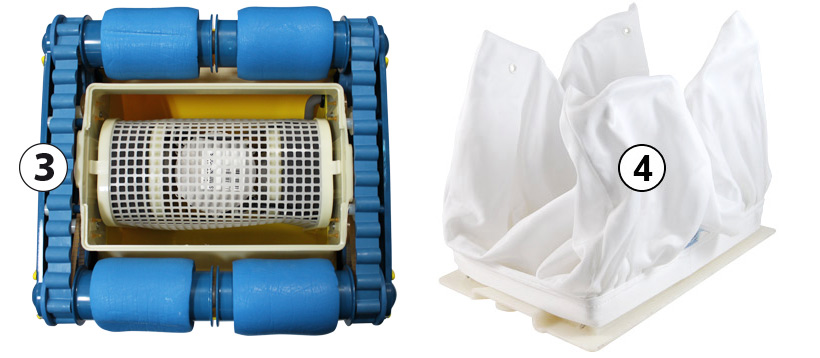

Undercarrige and filter bag Aquabot Viva electric pool cleaner

1. Aquabot Viva cleaner
2. Low voltage multiprogram transformer with remote control
3. Aquabot Viva motor block
4. Ultra fine 2 microns filter bag on it's support

On option

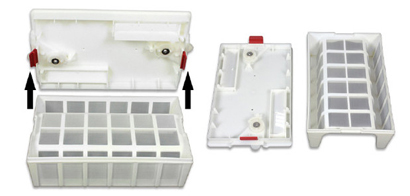

You can order a filter cassette, designed to replace the filter bag supplied with the pool cleaner.

When using this option, filtration efficiency is no longer a concern for your pool cleaner. You always have the alternative equipment to ensure filtration.

To clean and reuse, just empty and rinse in clear water.

Its filtration capacity is 20 microns.
Filtration cassette Aquabot Viva


Technical characteristics


Voltage supply
230V / 50 Hz
Low current voltage supply
DC-24V
Pool shapes
Rectangular, round, oval or free shape
Pool finish
Liner, PVC, ceramic, polyester shell, painted concrete
Max pool dimensions
100 m2
Remote control
Yes
Cleaning
Floor, walls and waterline
Cleaning brushes
2 PVA brushes
Suction capacity
18 m3 / h
Filtering capacity
2 microns
Number of cleaning cycles
3
Duration of cleaning cycles
1h30 / 2h / 2h30
Cleaning system
Aqua Smart
Filter clogging level
Yes
Cable length
18 m
Motors
2 traction motors
Out of water detection
Yes
Obstacle detection
Yes
Trolley
Yes
Supplied equipment
1 filtering bag, nuts and screws to fix handle to trolley.
Dimensions and weight of cleaner
L37 x w43 x H27cm/ 23Kg (with trolley)


Reccomendation for use


Please ensure



- The transformer is positioned at least 4m from the pool.

- Submerge your cleaner into the water holding it by its handle. Evacuate the air in the unit by moving backwards and forwards in the water.

- When the unit is in operation, the luminous signal will be lit continuously; It will flash in standby mode. Following each cycle, the Aquabot Viva will automatically go to standby mode.

- Store your material at a temperature between 10 and 40°.

- Clean your filter as often as you need to after unplugging the transformer.

- Block the handle in a horizontal position using the locking systems on the handle's side. This allows an inclination when the unit is at the top of a pool wall to depart in another direction.

- Possibility to add a floater (supplied) for improved buoyancy of the unit.

Pools with outboard filtration blocks


Check the depth measurement between the pools bottom surface and the deepest immersed part of your filtration block is ample to allow the easy passage of the pool cleaner in operation.


See all the pool cleaners in the Aquabot range

Warranty

2 years
