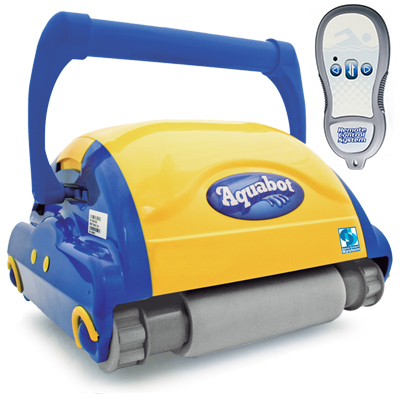

Aquabot Super Bravo

The Aquabot Bravo Pro pool cleaner
Recommended retail price 2017 starting from :
1596 €
Our Price starting from :
980 €
949 € Including VAT
Offer ends 30/06/2017
Ref. 013243
Aquabot SUPER BRAVO pool cleaner with transportation trolley
For pools with a maximum surface area of 80m²,
Remote control for manual operation,
3 cleaning cycles,
High-resistance PVA brushes,
Transportation trolley
In stock
Aquabot SUPER BRAVO pool cleaner with transportation trolley
Ref. 013243
EUR 949
980
949 €
Order Free quote
Bottom Access 20 micron reusable Cassette for Aquatron Pool Cleaners
Ref. 022747
EUR 68
68 €
Order Free quote

Aquabot Super Bravo electric pool cleaner in detail



The Aquabot Super Bravo pool cleaner is designed to brush, suction and clean debris and dirt on pool floors, walls and waterline of pools with maximum dimensions of 12 x 6m.

The Aqua Smart system cleans the pool in optimal time. 3 programs are available:1h for the quickest cycle, 1h30 or 2h for a deep clean.

Its high-density PVA brushes combine long life with adhesion.

The Aquabot Super Bravo does not feature onboard electronics. Using its Aquacontrol communication system, the system is totally controlled via the low current transformer, limiting maintenance to a minimum.

This allows the user to adjust the Super Bravo cleaners settings quickly and easily, optimising the pools cleaning cycle.

The Aquabot Super Bravo equally features a warning light on the transformer that indicates filter bag clogging.

Aquabot BRAVO PRO

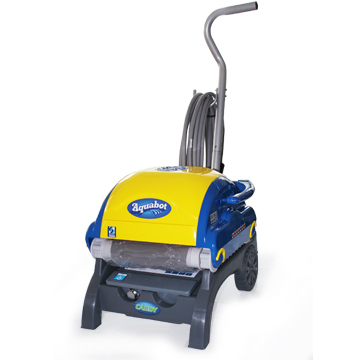

BRAVO PRO on trolly


The Aquabot Super Bravo with remote control uses new technology to ensure efficient modification of trajectory: A differential ensures the even rotation of the cleaner, distributing motricity to each traction chain. This new technology avoids the use of an additional motor or pivot that could make the pool cleaner more fragile.

Equipment


High-density PVA brushes are adapted to all pool finishes (concrete, liner, reinforced PVC, mosaic, polyester shell...), allowing optimal trajectory and cleaning of your pool floor, walls and waterline.

Offering better resistance and superior lifespan than classic PVC brushes that can adapt to rougher surfaces.

Using a Dacron bag, the filtering capacity of the unit is close 2 microns, retaining even the finest particles, reducing the use of water treatment products.

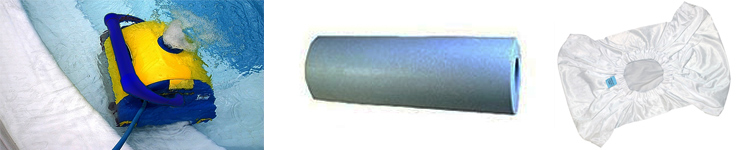

Aquabot Bravo Pro equipment

Aquacontrol technology


Aquacontrol technology is a unique control panel that allows direct communication with the cleaner, personalising the cleaning cycle. Featuring a switch-mode power supply, the Aquabot Super Bravo transformer, unlike traditional bobbin power sources, combines a lightness in weight and better heat distribution.

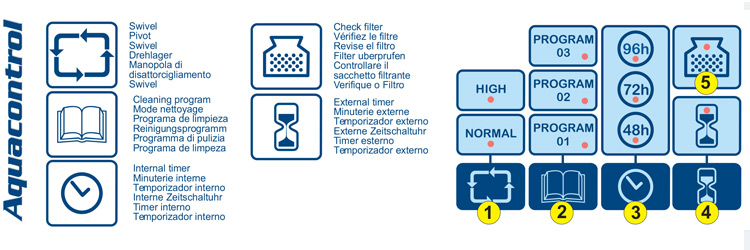

Aquacontrol control panel

This panel offers the possibility of programming different settings ensuring a constantly clean pool obtained, adapting to your needs in the most efficient manner.

You can select your made to measure cleaning program with :

Aquacontrol : pool scan
1. Setting the Smart Scan option of the cleaner (determination of pool type) : normal (standard pools) and high (pools with particular dimensions : swimming lanes etc).
Aquacontrol : Choice of program
2. Choice of cleaning program : 1 hour (cleaning pool floor only), 1.5 hours (thorough clean of pool floor, quick clean of walls and waterline), 2 hours (cleans the pool floor, walls and waterline).
Choice of cycle
3. Choice of automatic cleaning cycle for the pool (every 48, 72 or 96 hours). You can program the frequency of cycles.
Aquacontol : timer
4. External timer offers the possibility to pre-program the start time of the cycle (timer sold separately).
Aquacontrol : Clogging alert
5. A clogging indicator is situated on the transformer and informs you of the filter bag status.

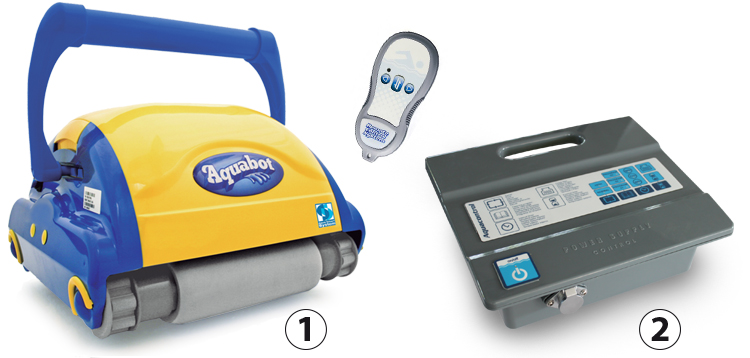

Aquabot Bravo Pro with remote control and transformer

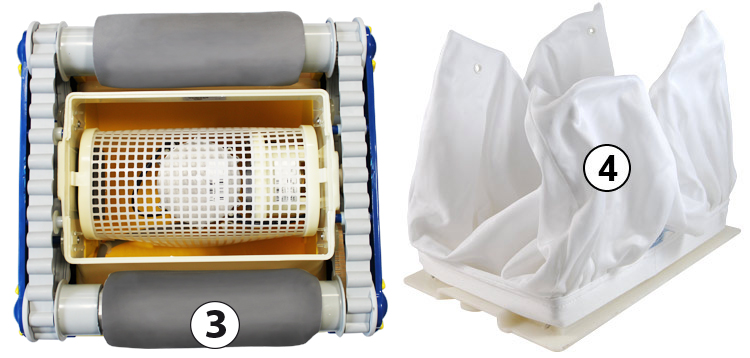

Aquabot Bravo Pro   under view and filter bag

Aquabot Super Bravo (1), Low tension multiprogram transformer with remote control (2), Aquabot Super Bravo motor block (3), Ultrafine 2 micron filter bag on its support (4).

Aqua Smart system


The Aquabot Super Bravo is complete with the system Aqua Smart.

Traditional pool cleaners need 3 to 6 hours to clean an entire pool.

The Aqua Smart is an intelligent device, integrated to the cleaners microprocessor, allowing the cleaner to cover the entire surface of the pool in a systematic manner without wasting time.

This technology offers a number of advantages:

- A quick cleaning cycle
- Economic with energy
- Reducing wear and tear of components, extending lifespan
Spacer20

Pool cleaner with protection system


Switching on your pool cleaner out of water will put security mode into action, including the pump and low current transformer... If you switch on the low current transformer without the pool cleaner, the security mode will activate after 10 to 15 seconds.

For pools featuring an immersed beach or infinity pool, the pool cleaner inverses its movement as soon as it emerges when reaching the water's edge. In the case that the unit does not return to the water, it automatically goes to security mode, (including its low current transformer).

If the cleaner meets an obstacle in its path (ladder, lamp, a discharge nozzle, pool cover or any other horizontal or vertical object) the cleaner is programmed to move around the obstacle in question and continue its cycle.

If an obstacle (towel, cable...) becomes stuck between the body of the unit and it's brush, the unit will try to distance the object in question to continue its cycle. If this fails, the pool cleaner (including its low current transformer) will adopt security mode automatically.

If the pool cleaner turns over and cannot continue its movements, the pump will operate for 5 seconds. The drive system will forward/reverse and then go to security mode.

The Gyro system


The Super Bravo is equipped with an intelligent navigation system called Gyro. Capable of correcting trajectory depending on the configuration and size of the pool by means of directional control.

Every 60 seconds (in NORMAL mode) or every 20 seconds (in HIGH mode), the cleaner scans its environment to determine pool shape, optimising its cycle.

In the case of the wrong direction being taken:
1. Without the Gyro system, the Super Bravo does not correct its trajectory
2. With the system Gyro, the Super Bravo corrects its trajectory independently

To clean angled contours of the pool:
3. Without the Gyro system, the Super Bravo is unable to fit perfectly against angled contours of the pool
4. With the Gyro system, the Super Bravo fits perfectly against walls, calculating automatically a 90° angle
Gyro technology Aquabot Viva electric pool cleaner


Trajectory Aquabot Viva electric pool cleaner

Intelligent pool type detection system


Each pool cleaner uses a microprocessor programmed with an algorithm studied to protect and optimise its use. From the moment it is switched on, the cleaner will detect the surfaces and waterline, defining the profile of the pool it will clean. The intelligent algorithm will optimise the cleaners movements and trajectory throughout its cycle.

The unit will determine the type of finish in the pool (liner, ceramic, concrete) adapting the working rhythm of the pump, preserving its lifespan. If the unit comes across a difficult spot (grease, smooth patch on liner...) during its cycle, it will accelerate and move along quickly through the difficult zone.

The unit gauges automatically its duration of cycle and time spent on waterline in comparison to the walls and bottom surface, optimising time spent. The algorithm corrects and balances the rotations of the cleaner clockwise and anti-clockwise, avoiding a tangled cable.

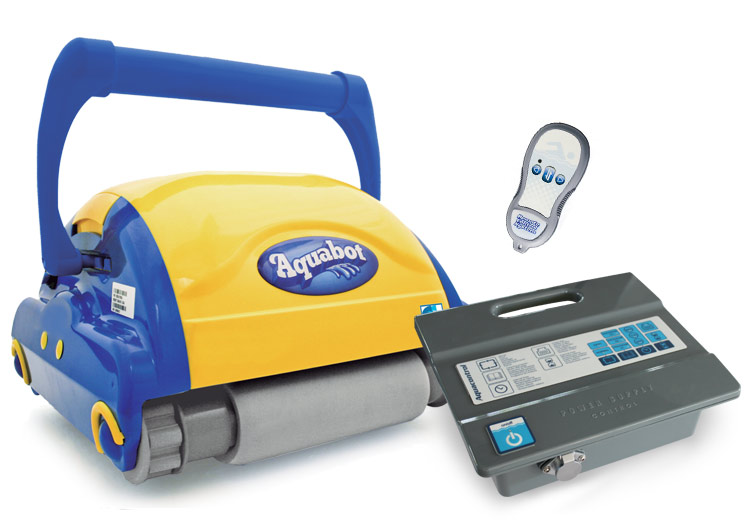

Aquabot Bravo Pro   full view

The pool cleaner Aquabot Super Bravo is delivered with : 1 transportation trolley, 1 low current transformer, 1 remote control and 1 filter bag.

On option


You can choose to order a filtration cassette, designed to replace the filtration bag which is supplied with the cleaner.

When using the cassette, you no longer have to worry about cleaning efficiency: you will always have spare equipment.
To clean and reuse, just empty, rinse in clear water and replace.

Filtering capacity of the cassette is 20 microns.
Filtration cassette Aquabot Bravo

Technical features


Input power
230V /50 Hz – 115V / 60Hz
Low power input
DC-24V
Suitable pool shapes
Rectangular, round, oval or specific shape
Compatible pool finish
Liner, PVC, ceramic, fibreglass, painted concrete
Maximum dimensions of pool
80m²
Cleans
bottom surface and walls of pool, waterline
Cleaning brushes
2 PVA brushes
Suction power
18m3/h
Filtration capacity
2 microns
Number of cleaning cycles
3
Duration of cleaning cycles
1h/1h30/2h
Cleaning system
Aqua Smart
Communication system
Aquacontrol
Remote control
Yes
Clogging indicator
Yes
Propulsion motor
1
Suction motor
1
Length of cable
18m
Out of water detector
Yes
Obstacle detector
Yes
Transportation trolley
Yes
Dimensions and net weight of cleaner
L37 x w43 x H27cm/ 21Kg (with trolley)


Pools with outboard filtration blocks


Check the depth measurement between the pools bottom surface and the deepest immersed part of your filtration block is ample to allow the easy passage of the pool cleaner in operation.

See all the pool cleaners in the Aquatron range

Warranty

3 years

Photos non-contractual
Price incl. VAT

Ask for a free quote aquabot super bravo

Other product : Aquabot Super Bravo
Starting from 949 eur Including VAT.
