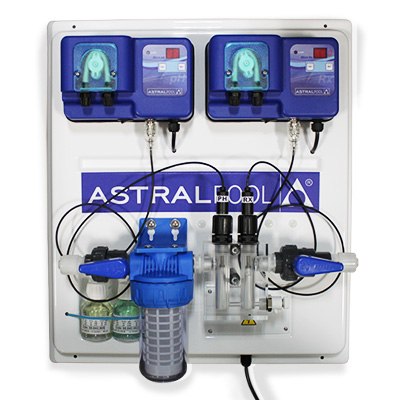

ASTRALPOOL regulating board with chlorine and pH automatic peristaltic dosing pumps

ASTRALPOOL chlorine and pH automatic peristaltic dosing pump
Recommended retail price 2017 :
1320 €
Our Price :
1320 € Including VAT
Ref. 023424
ASTRALPOOL automatic regulation with Chlorine and pH peristaltic pumps flow rate 2,4l/h
EUR 1320.00
Automatically regulates pH and chlorine by dosing pump.
Adapted for pools up to 100m³
Pre-assembled panel
Analysing chamber
Digital display
Fast and easy installation.
In stock
The quality of your pool water and its cleanliness is dependent on an adapted treatment. This is linked to two factors:

pH content in water , should be neither too acid or alkaline: perfectly balanced pH is considered to be 7. Poorly balanced pH results in irritated eyes, dry skin, algae proliferation and less efficient disinfection from pool water treatment products. In certain cases, the pool structure can deteriorate.

Water sterilisation often requires the use of chlorine or bromine, powerful oxidants that allow the destruction of bacteria and algae contained in water. An excess of product use can cause irritation, premature ageing of the pool structure and filtration system...

The ASTRALPOOL regulating board with chlorine and pH peristaltic dosing pumps is an automated analysis and regulation unit that preserves the water quality and comfort of pool use.

ASTRALPOOL have developed this multi-product regulating unit to be 100% automated. It is completely equipped with all that is required for excellent, independent operation. Its design is in the form of a wall mount to board, that is ready to be installed with two dosing pumps (Micro pH et Micro Rx). Supplied with a complete installation kit, including paddle clamps, the unit is installed easily and quickly on the vast majority of filtration systems. Its electrical connection should be to a power supply that conforms to the norm C-15-100 (protected by a 30 mA).
It's analysing chamber precisely measures pH and chlorine levels to optimise the injection of correction products used ( pH- and/or chlorine). This greatly lengthens the lifespan of the unit's sensors.

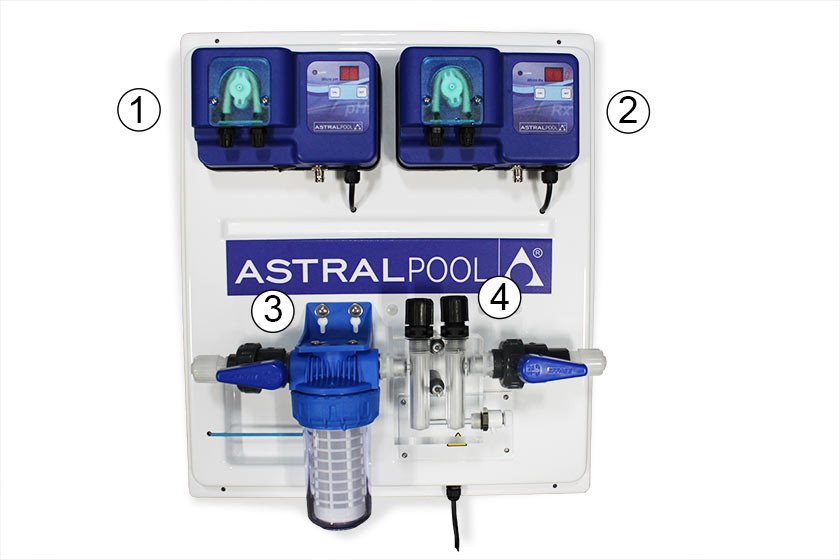

Description of control panel :
ASTRALPOOL chlorine and pH automatic peristaltic dosing pump in detail

1 - Micro pH dosing pump
2 - Micro Rx dosing pump
3 - Pre-filter
4 - Analysing chamber for pH and Rx sensors

1 - Micro pH dosing pump


- Digital display
- 2 buttons to pause, regulate or calibrate the pump
- pH level LED indicators

Mechanical characteristics :
- 30% reinforced polypropylene casing
- Polycarbonate panel
- IP 65 protection index
- Moulded pre-equipment featured on wall mount

Operation :
- Proportional peristaltic pump with integrated pH measure
- pH regulation scale from 7,1 to 7,4
- Semi-automatic calibration sensor regulated to pH 7,0
- Auto-control sensor
- Sensor warning alarm
- Design includes pH minus (pH-) injection
ASTRALPOOL regulating board pH automatic peristaltic dosing pump

2 - Micro Rx dosing pump


- Digital display
- 2 buttons to pause, regulate or calibrate the pump
- Chlorine level LED indicators

Box :
- 30% reinforced polypropylene casing
- Polycarbonate panel
- IP 65 protection index
- Moulded pre-equipment featured on wall mount

Operation:
- Proportional peristaltic pump with integrated measure
- REDOX regulation scale from : 0…+800 mV
- Auto-control sensor
- Sensor warning alarm
ASTRALPOOL Rx automatic peristaltic dosing pump


3 - Pre-filter


- Pre-filter positioned up flow from analysing chamber
-Washable and replaceable filter cartridge

Mechanical characteristics :
- PVC mechanical seal
- Maximum temperature40° C
- Filter height 127 mm

Operation :
- Filters pool water before passage through analysing chamber.
- Powered via paddle clamp positioned on filtration circuit
- Ball Valve to regulate water flow
Pre filter ASTRALPOOL chlorine and pH automatic peristaltic dosing pump

4 - Analysing chamber


- Polycarbonate monobloc analysing chamber pre-mounted on regulation board
- 2 sensor supports (1 for pH sensor, 1 for Rx sensor)
- Evacuation of analysed water via paddle clamp positioned on filtration circuit

Mechanical characteristics :
- Plexiglass structure
- Integrated gravity outlet pipe situated on analysing chamber
- Ball Valve to regulate water flow

Operation :
- Ensures the permanent immersion of sensors (excepting calibrating or replacement operations).
- Avoids the proximity of the sensors to chemical injection products which could be the cause of error in data readings.

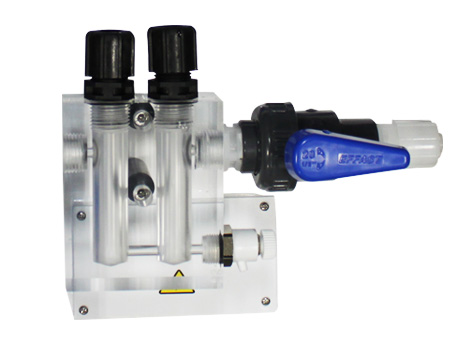

ASTRALPOOL chlorine and pH automatic peristaltic dosing pump analysing chamber


Technical information


Board dimensions (in mm)
445(l) x 505 (H)
Weight
3,4Kg

l/hbarCapacityTours/minTube
1,613,5 watts40Santoprene 4 x 6 mm

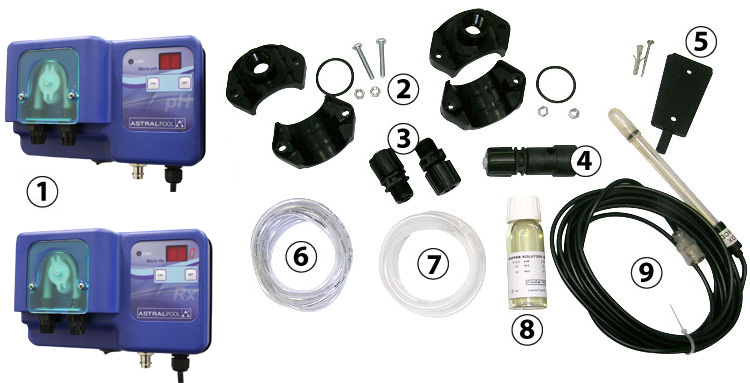

ASTRALPOOL regulating board with chlorine and pH peristaltic dosing pumps includes :
ASTRALPOOL chlorine and pH automatic peristaltic dosing pump regulating kit
1/ Complete kit which includes electronic regulation of dosing pump
2/ Paddle clamps
3/ Anti-backflow release valve and sensor support
4/ Product suction filter
5/ Wall mount
6 - 7/ Product suction and discharge tubes
8/ Buffering solution
9/ Redox sensor

Also includes: Redox and pH7 buffering solution

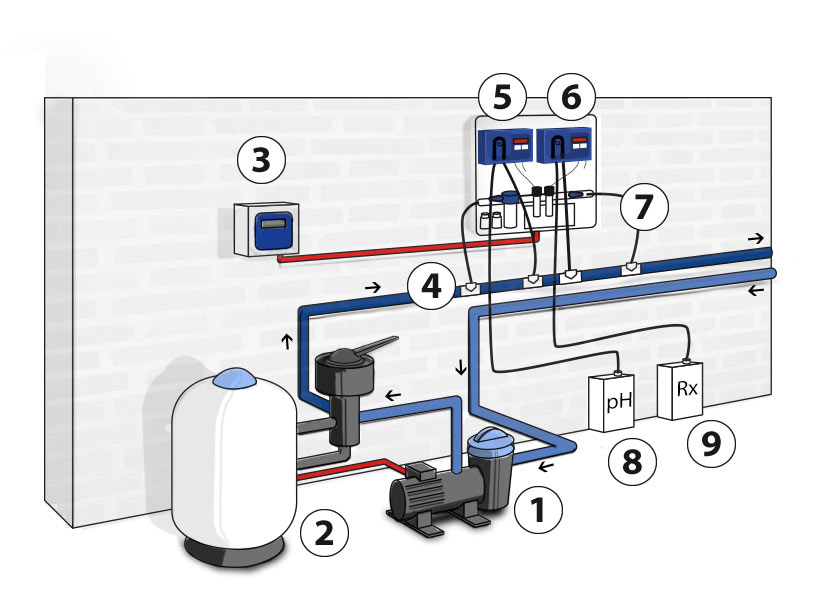

Installation schema


ASTRALPOOL chlorine and pH automatic peristaltic dosing pump installation schema
1. Pump
2. Filter
3. Electrical box
4. Water suction
5. Micro pH dosing pump
6. Micro Rx dosing pump
7. Discharge towards pool
8. pH solution
9. Rx solution

Warranty

2 years (excepting wear and tear parts)

Photos non-contractual
Price incl. VAT
