Aquabot Viva Pro

Aquabot Viva pro
Recommended retail price 2017 starting from :
2338 €
Our Price starting from :
1499 € Including VAT
Ref. 010206
Aquabot VIVA PRO pool cleaner
Discover the Aquabot Viva Pro pool cleaner for pools up to 14 x 6m
Cleans the bottoms surface, walls and waterline,
PVA high resistance brushes,
Transportation trolley and remote control
Ideal for all pool shapes and finishes
In stock
Aquabot VIVA PRO pool cleaner
Ref. 010206
EUR 1499
1499 €
Order Free quote
Bottom Access 20 micron reusable Cassette for Aquatron Pool Cleaners
Ref. 022747
EUR 68
68 €
Order Free quote

The robot in detail


The Aquabot Viva Pro pool cleaner features the Aquacontrol and Aqua Smart systems, designed to brush, suction and filter debris and dirt on the bottom surface, walls and waterline of pools up to 14 x 6m.

Equipped with the Aqua Smart system that allows you to clean your pool in minimal time. 3 cleaning programmes are available: 1h, 2h, or 3h to choose from depending the debris and dirt present in your pool water.

The control system is integrated into the Aquacontrol transformer featuring up to 8 settings, enabling this cleaner to efficiently reply to the cleaning requirements of the most demanding pools.

The transportation trolley assures easy manipulation and storage of your pool cleaner.

High-density PVA brushes combine long-life and adhesion. The Aquabot Viva Pro equally features a visual lighting signal that tells you when the filter bag is full and requires cleaning.

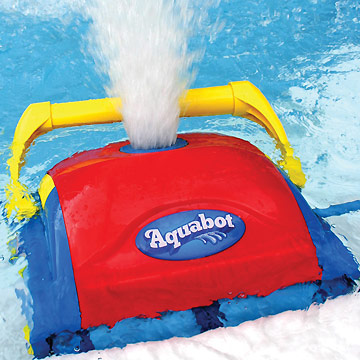

Aquabot viva pro in situation

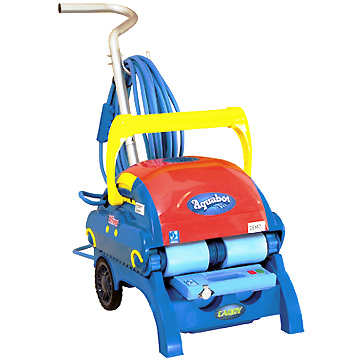

Aquabot viva pro with transportation trolley


The Aquabot Viva Pro with remote control uses new trajectory technology: Using differential gear, the cleaners rotation is effectuated by the distribution of traction on each track. This new technology avoids the use of an additional motor or pivot, making the cleaner more dependable.

Features


PVA high-density brushes are adapted to all pool finishes (concrete, liner, PVC, fiberglass, mosaïque..), enabling a smooth movement of the pool cleaner throughout the pools surfaces and waterline.

PVA brushes are more resistant than the classic PVC version and can adapt to rough surfaces, their life span is also superior.

Using a resistant polyester Dacron filter bag which has a filtering capacity of close to 2 microns, even the finest particles are retained, reducing the quantity and use of chemical products used for pool treatment.
PVA brush

Dacron filter bag

Aquacontrol technology


The Aquacontrol system is a unique control panel that enables you to communicate directly with the pool cleaner, personalising your cleaning program.

Aquacontrol technology

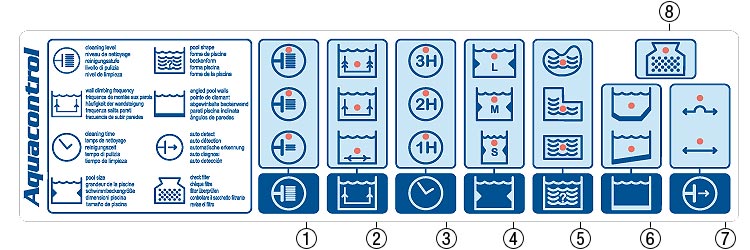

The Aquacontrol control interface of the Aquabot Viva Pro pool cleaner gives the possibility of programming several settings, selecting the most efficient manner of cleaning your pool in coherence with your specific situation.

You can choose a made to measure clean with:

Pump suction
1. Pump suction (strong, average or moderate) depending the debris and dirt present in your pool water.
Frequency of wall and waterline cleaning
2. Frequency of wall and waterline cleaning (only bottom surface, walls and bottom surface, alternately bottom surface and walls or frequently climbing) depending the debris and dirt present in your pool water.
Duration of cycle
3. The duration of your cleaning cycle (1h00, 2h00 or 3h00).
Size of pool
4. The size of your pool (S,M or L).
Shape of pool
5. The shape of your pool (enabling the cleaner to calculate the cleaning mode best adapted to the shape of your pool).
Pool wall gradient
6. Gradient of walls (angular or progressive towards bottom) allowing your cleaner to best adjust its traction to climb the walls.
Obstacle detection
7. Automatic obstacle detection (on or off) enabling the cleaner to avoid obstacles such as in-built cleaning brushes etc...
Clogging indicator
8. A clogging indicator is situated on the transformer and indicates when the filter bag needs to be cleaned ensuring the correct operation of the unit.

Functions aquabot viva pro

Functions Aquabot viva pro

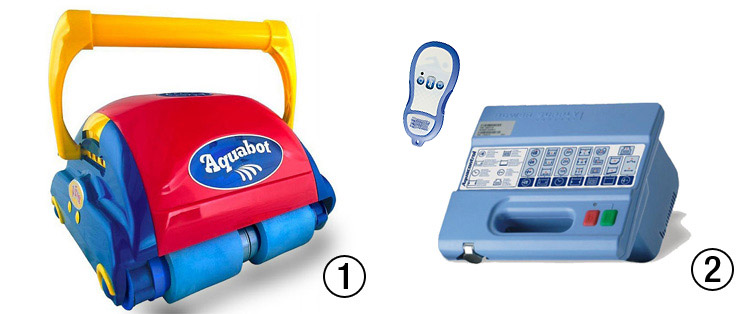

Aquabot Viva Pro pool cleaner(1), Low tension multiprogram transformer with remote control(2), Aquabot Viva Pro main body (3), Ultra fine filter bag with capacity close to 2 microns with its support (4).

Aqua Smart system


The Aquabot Viva Pro features the Aqua Smart system.
Most pool cleaners need 3 to 6 hours to clean an entire pool.

The Aqua Smart system is an intelligent function that integrates to the microprocessor of the cleaner, telling it to cover the surface of the pool in a systematic manner without losing time.

This technology offers several advantages :

1. Quick cleaning
2. Economised energy
3. Extended lifespan on mechanical parts due to less use


.

Pool cleaner with Protection


Switching on your pool cleaner out of water will put security mode into action, including the pump and low current transformer... If you switch on the low current transformer without the pool cleaner, the security mode will activate after 10 to 15 seconds.

For pools featuring an immersed border (or a Californian border), the pool cleaner inverses its movement as soon as it emerges when reaching the waters edge. In the case that the unit does not return to the water, it automatically goes to security mode, (including its low current transformer).

If the cleaner meets an obstacle in its path (ladder, lamp, discharge nozzle, pool cover or any other horizontal or vertical object) the cleaner is programmed to move around the obstacle in question and continue its cycle.

If an obstacle becomes stuck between the body of the unit and it's brush (towel, cable...), the unit will try to distance the object in question to continue its cycle. If this fails, the pool cleaner (including its low current transformer) will adopt security mode automatically.

If the pool cleaner turns over and cannot continue its movements, the pump will operate for 5 seconds. The drive system will forward/reverse and then go to security mode.

Intelligent pool type detection system


The Aquabot VIVA uses a microprocessor programmed with an algorithm studied to protect and optimise its use. From the moment it is switched on, the cleaner will detect the surfaces and waterline, defining the profile of the pool it will clean. The intelligent algorithm will optimise the cleaners movements and trajectory throughout its cycle.

The unit will determine the type of finish in the pool (liner, ceramic, concrete) adapting the working rhythm of the pump, preserving its lifespan. If the unit comes across a difficult spot (grease, smooth patch on liner...) during its cycle, it will accelerate and move along quickly through the difficult zone.

The unit gauges automatically its duration of cycle and time spent on waterline in comparison to the walls and bottom surface, optimising time spent. The algorithm corrects and balances the rotations of the cleaner clockwise and anti-clockwise, avoiding a tangled cable.

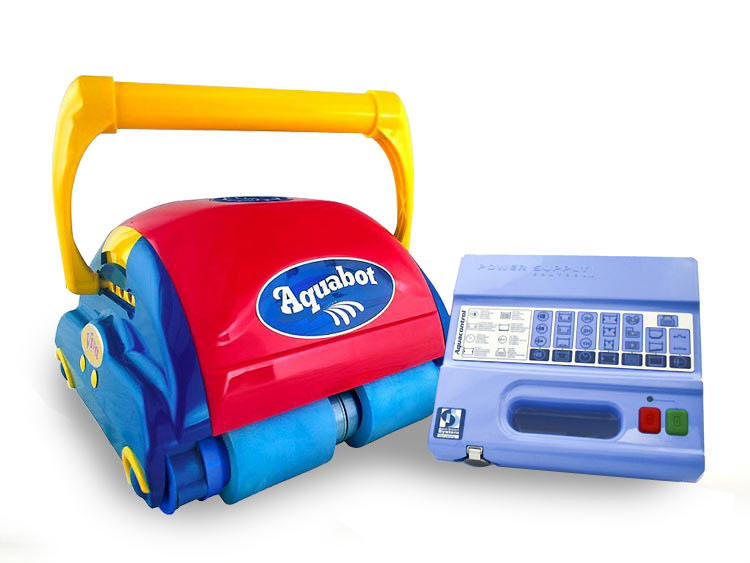

Aquabot Viva pro pool cleaner
Aquabot Viva Pro pool cleaner is delivered with 1 transportation trolley, 1 transformer, 1 remote control and 2 filter bags.

Technical features


Power supply
230V /50 Hz – 115V / 60Hz
Low current power supply
DC-24V
Suitable pool shapes
Rectangular, Round, Oval or specific shape
Compatible pool finish
Liner, PVC, tiles, fiberglass, painted concrete
Maximum dimensions of pool
14 x 6m
Cleans
Bottom surface, walls and waterline
Cleaning brushes
PVA brushes
Suction power
16m3/h
Filtration capacity
2 microns
Number of cleaning cycles
3
Duration of cleaning cycles
1h, 2h and 3h
Communication system for cleaner
Aquacontrol
Cleaning system
Aqua Smart
Clogging indicator
Yes
Propulsion motor
1
Suction motor
1
Length of cable
22m
Remote control
Yes
Out of water detector
Yes
Obstacle detector
Yes
Transportation trolley
Yes
Additional equipment
1 filter bag
Dimensions and net weight of cleaner
L37 x w43 x H27cm/ 21Kg (with trolley)

Pools with outboard filtration blocks


Check the depth measurement between the pools bottom surface and the deepest immersed part of your filtration block is ample to allow the easy passage of the pool cleaner in operation.

See all the pool cleaners in the Aquatron range

Warranty

3 years

Photos non-contractual
Price incl. VAT

Ask for a free quote aquabot viva pro

Other product : Aquabot Viva Pro
Starting from 1499 eur Including VAT.
