TEDDINGTON ORTOS dehumidifier

TEDDINGTON ORTOS in detail

The TEDDINGTON ORTOS range of dehumidifiers is designed for use in prestigious indoor or covered pools or any other area which requires humidity control.
TEDDINGTON ORTOSdehumidifiers unite understated design elegance with a vertical column conception - reducing installation space, facilitating the units insertion in your pool or spa environment.
Integrated hot water battery is available on option. This method heats air once dehumidified, avoiding a "cold" sensation when exiting pool water.
A clear, user-friendly digital display indicates humidity rate and air temperature (models featuring heating option).





• Integrated wheels to easily move unit, bracket anti-tipping
• High-performance robust rotary compressor cooling circuit without CFC's or R410a.

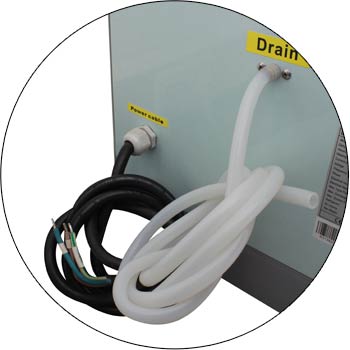

• Raccordement électrique 230V L+N+PE using supplied cable (2m in length).
• Supplied condensation evacuation tube, 13 mm in diameter, 5m in length.
• Fast defrost cycle (30 seconds) by means of hot gas allowing use from 5°c (in a pool enclosure, for example).



The unit's wheel system



Control panel situated at the front of the unit

Technical characteristics	ORTOS 110 with heating option	ORTOS 140 with heating option	ORTOS 190 with heating option
Reccomended pool volume	20 to 30 m2	30 to 40 m2	40 to 60 m2
Dehumidifier capacity	1300 w	1650 w	2300 w
Capacity of ambient heater (with heating option)	2000 w	2000 w	2000 w
Total capacity (with heating option)	3300 w	3650 w	4300 w
Amperage (A) (with heating option)	15,1	16,7	19,7
Operational timer	From 1 to 12 hours	From 1 to 12 hours	From 1 to 12 hours
Humidity rate and temperature display	yes	yes	yes
Air filter	Washable	Washable	Washable
Air flow	850 m³/h	850 m³/h	1150 m³/h
Electrical supply	230 V (L+N)	230 V (L+N)	230 V (L+N)
Cable sections	4mm²	4mm²	4mm²
Circuit breaker required (with heating option)	16A	20A	20A
2 m supply cable	Included	Included	Included
Compressor	Toshiba rotary	Toshiba rotary	Toshiba rotary
Wheels	Yes	Yes	Yes
Sweep	Up/down and left/right	Up/down and left/right	Up/down and left/right
Ventilation speed	3, with automatic mode	3, with automatic mode	3, with automatic mode
Maximum discharge height	4 m	4 m	4 m
Dehumidification at 30°C - 80% H.R	4,5 L/h	6 L/h	8 L/h
Dehumidification at 28°C - 60% H.R	2,6 L/h	3,9 L/h	5,1 L/h
Dehumidification at 20°C - 60% H.R	1,5 L/h	2,6 L/h	3,5 L/h
Decibels measured at 5m	47 dBa	48 dBa	53 dBa
Cooling liquid	R410a	R410a	R410a
Condensation evacuation tube diameter	1"1/2 tube 5 m supplied	1"1/2 tube 5 m supplied	1"1/2 tube 5 m supplied
Colour	Blue and light grey	Blue and light grey	Blue and light grey
EU certified	Yes	Yes	Yes
TÜV certified	Yes	Yes	Yes
RoHS	Yes	Yes	Yes
Depth x Width x Height	470 x 1790 x 535 mm	470 x 1790 x 535 mm	520 x 1790 x 535 mm
Weight (with heating option)	72 kg	77 kg	84 kg

The dehumidifier must be installed in the room that requires humidity control at least 2m from pool side to conform to the norm C.15.100.

Warranty

2 years
