SOLARA solar panel heating system for pools

Solara solar panel heating system for pools in detail

To benefit from free pool heat and lengthen your swimming season, opt for the Solara solar heating system. This system raises the pool water temperature using a 100% ecological system. The solar panels capture the sun's natural calories, rendering them to your pool water.

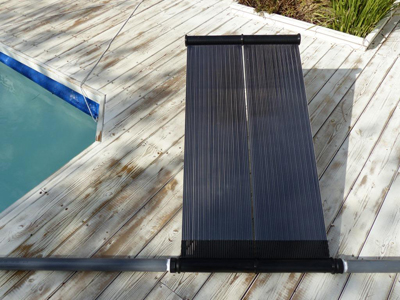

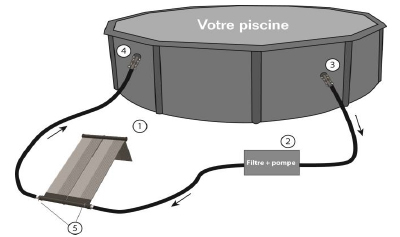

The Solara system allows easy connection between several solar panels depending on the volume of water to be heated.
Linear installation or via a by-pass is possible (by-pass recommended in the case of coupling with a heat pump).

How to care for your Solara panel

Clean with a non-abrasive sponge or 100% cotton cloth and warm water with gentle washing up liquid. Rinse with cold water. Warning - do not use solvents or abrasive cleaners or detergents.
At the end of the season, disconnect your solar panel and store, sheltered from frost.
To winterize, purge by disconnecting all pipes.

How many solar panels do I need?

Above ground pools

Pool dimensions	volume in m3	number of Solara panels
4.60m round	21	1
5.50m round	26.5	1
6.40m round	34	1
7.30m round	45	2
8.5m round	60	3

Inground pools

Pool dimensions	volume in m3	number of Solara panels
7.30m X 3.70m	40	1
9.10m X 4.60m	51	2
9.75m X 4.90m	56	3
10m X 5.5m	75	4
11m X 5.5m	90	5
12m X 6m	113	6

Installation

Method

Options

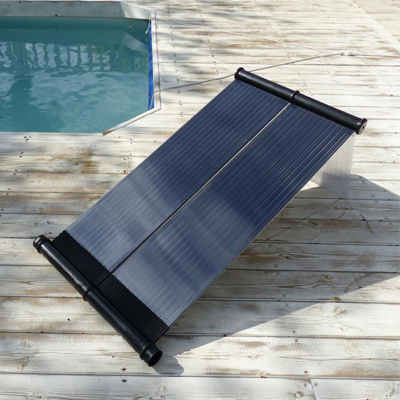

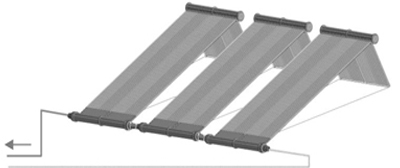

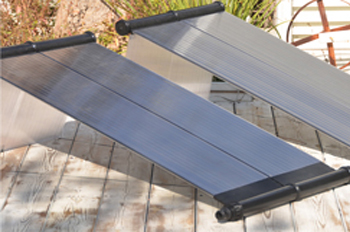

Several solar panels can be installed as a series

Several solar panels can be installed to obtain a higher water temperature.

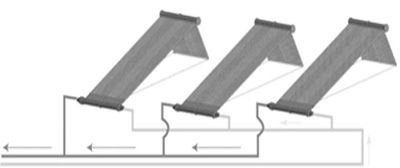

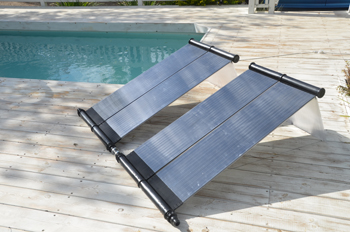

Two installation systems are available: As a series or in parallel.

Installation using this method lowers pressure contained in each panel. This indicates the pump must have enough capacity to compensate for pressure loss.

Manual regulation

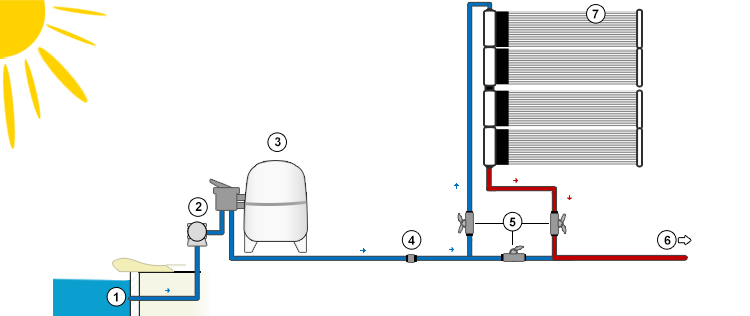

Manual regulation using the filtration pump to circulate water through the panel or panels which should be situated as closely as possible to the technical shelter. The panels must not be supplied during the night or during poor weather conditions (rain, snow, cold periods) as this could cool the pool water temperature.
A 3-way manual valve (available on option) allows regulation or can stop supply to the panels.

Automatic regulation

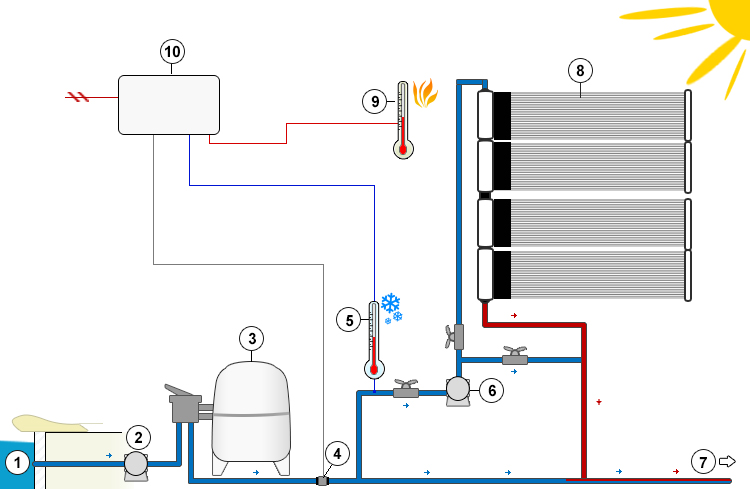

Automatic regulation via an auxiliary pump allows efficient optimising of the system by allowing flow through the panels only when climatical conditions are ideal.
This configuration is ideal when the panel installation is far from the technical shelter.

1. Motorised valve

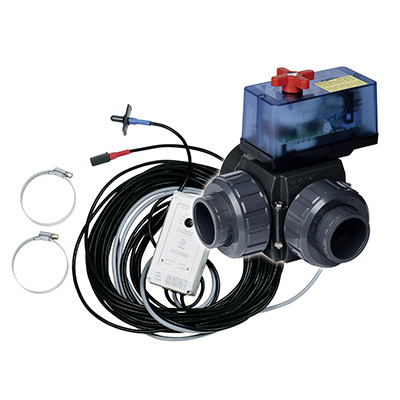

1. Temperature regulation using the motorised 3-way valve powered by the pool filtration pump :

This configuration can, in general, be adopted when the collector is a maximum of 6m from the pool water surface.
The motorised 3-way valve is fitted on the filtration hydraulic circuit. The temperature regulation valve opens or closes depending on temperature variation. When water requires heat, the flow passes through the collector. Heated water returns to the circuit via the T connection.

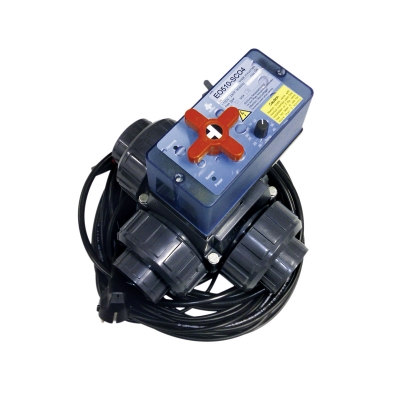

a/ Ø50mm 3-way motorised valve with integrated regulation

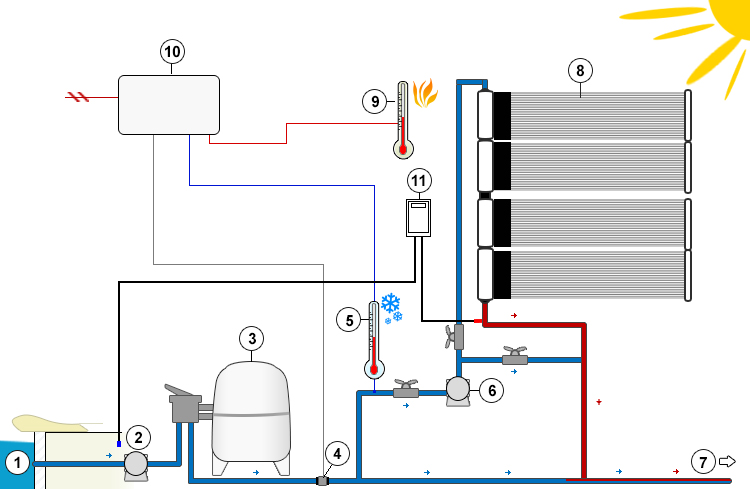

2. Separate auxiliary pump and temperature regulation integrated to hydraulic circuit.

It may be preferable or required to install a separate pump for the solar heating system. In general, if the solar panel is situated at a greater distance than 15m from the pool water surface.
Water is redirected using the T connection situated before the filter towards the panel.

The operation of this pump is managed by the regulation of temperature. The filter pump and the solar pump are separately regulated. The installation of anti-return valves on the solar and filtration circuits is highly recommended.

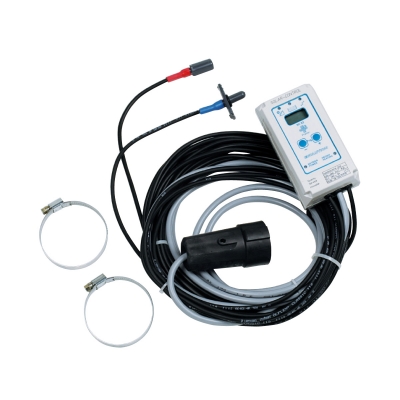

Command and regulation system and solar pump

Technical characteristics

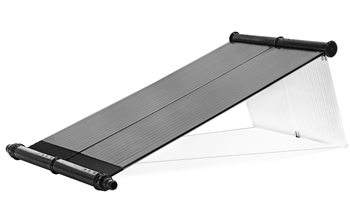

Dimensions of Solara panel (in mm)

Warranty

5 years
