Pool heating and dehumidification Heat pumps for swimming pools Pool Heat Pumps AQUACAL AQUACAL SUPERQUIET SQ 121 icebreaker AQUACAL SUPERQUIET SQ 121 icebreaker
Recommended retail price 2019 starting from :
7616 €
Our Price starting from :
6555 € Including VAT
Ref. 002011

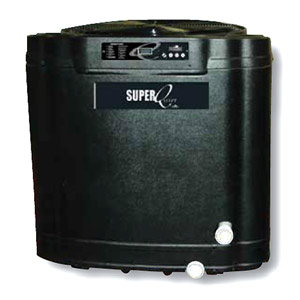

AQUACAL SuperQuiet SQ121 heat pump single-phase
AQUACAL SuperQuiet SQ121 heat pump single-phase
Ultra quiet, operational up to -7°c,
For pools with a maximum volume of 200 m³,
Titanium exchanger
For pools with a maximum volume of 200 m³,
Titanium exchanger
- Maximum pool volume 200 m3
- Defrosting function
- Single-phase
- Three-phase
In stock
AQUACAL SuperQuiet SQ121 heat pump single-phase
Ref. 002011
Ref. 002011
6555 €
AQUACAL SuperQuiet SQ121 heat pump three-phase
Ref. 002012
Ref. 002012
6656 €
AQUACAL SUPERQUIET heat pumps for pools
New heat pump for pool. It is imperative to install this heat pump outdoors in proximity to the technical house. For pools with a maximum volume of 200m3.
Operational with a minimum outdoor temperature of -7° C.
Titanium exchanger with a lifetime guarantee.
The SuperQuiet heat pumps are the high-quality range of Aquacal pumps. This series marks the new standard regarding operational performance and output. The distinguishing factor from the previous series is the very low noise level and the reduced weight of the unit.
Operational with a minimum outdoor temperature of -7° C.
Titanium exchanger with a lifetime guarantee.
The SuperQuiet heat pumps are the high-quality range of Aquacal pumps. This series marks the new standard regarding operational performance and output. The distinguishing factor from the previous series is the very low noise level and the reduced weight of the unit.
- Very low noise level in operation
- Defrosting and reversible function - operational up to an outdoor temperature of -7° c.
- TITANIUM water condenser with a lifetime anti-corrosion guarantee and uses Thermolink technology
- Conforms to EU norms
- R410A cooling liquid
- Rotary scroll compressor, very quiet in operation. Manometer to adjust water flow
- Digital thermostat control and on/off switch and indicator
- Microprocessor management. Time, programme and auto diagnostic settings
- ABS bodywork
- Single or three phase
A new control panel allows you to control the main settings of the heat pump. Using the digital thermostat and water flow
manometer the temperature of your pool can be perfectly controlled.
Featuring a water flow control, the heat pump stops automatically at the same time as the filter.
Using the reversible function, you can cool your pool water if the outside temperature is uncomfortably hot.
- Defrosting and reversible function - operational up to an outdoor temperature of -7° c.
- TITANIUM water condenser with a lifetime anti-corrosion guarantee and uses Thermolink technology
- Conforms to EU norms
- R410A cooling liquid
- Rotary scroll compressor, very quiet in operation. Manometer to adjust water flow
- Digital thermostat control and on/off switch and indicator
- Microprocessor management. Time, programme and auto diagnostic settings
- ABS bodywork
- Single or three phase
A new control panel allows you to control the main settings of the heat pump. Using the digital thermostat and water flow
manometer the temperature of your pool can be perfectly controlled.
Featuring a water flow control, the heat pump stops automatically at the same time as the filter.
Using the reversible function, you can cool your pool water if the outside temperature is uncomfortably hot.
Maximum volume of pool
200m3
Compressor
SCROLL
Output power* (kW)
27
Input power* (kW)
5,5
COP**
5,6
Power supply
230 at 400 v
Sound level
57 dB at 3m
Dimensions
107 x 86 x 99
Weight (kg)
158
Operational temperature
Up to -7°c
* Residential pool equipped with thermal cover from May to September, ambient outdoor 26° C
**Coefficient of performance = Output power / Input power
Titanium exchanger using "Thermolink" technology
Titanium exchanger using "Thermolink" technology :
- This double passage using hydraulic strength increases the power output guaranteeing the best COP.
- Offers exemplary sustainability without sacrificing performance and efficiency.
- Guides water flow and R410A cooling gas in opposite directions. This design ensures a maximum transfer of calories by means of an important differential of temperature and minimises friction loss for total compatibility with all hydraulic systems.
- Allows easy winterizing by means of a simple valve.
- Carries a lifetime guarantee.
Installation schema
Hydraulic PVC connections Ø 63 using a by-pass on the filter circuit ; two supplied PVC threaded connectors Ø 63
1. Heat pump
2. Pool pump
3. Pool filter
4. Suction
2. Pool pump
3. Pool filter
4. Suction
5. Discharge nozzles
6. Condensation outlet
7. Entry hot air
8. Exit cold air
9. Power supply
6. Condensation outlet
7. Entry hot air
8. Exit cold air
9. Power supply
OPTION: U-CONNECT connection kit for heat pump
The U-Connect connection kit allows you to link a heat pump to your pool without plumbing labor or tools. This quick installation does not require a supplementary power supply and avoids the need for a by-pass. Just link the two supplied pipes to your Aquacal Superquiet SQ 121 Icebreaker heat pump, and connect them to the U-connect portable control box. Self-priming, U-Connect remains independent from your filter circuit, giving you warm water, faster, without losing heat through piping as is often the case in a classic configuration.
Warranty
lifetime guarantee on exchanger
2 years on all other parts
