FREGATE low enclosure
Recommended retail price 2024 starting from :
5346 €
Our Price starting from :
4890 € Including VAT
Ref. Abatik 020261
Ref. Provider TREND BAS

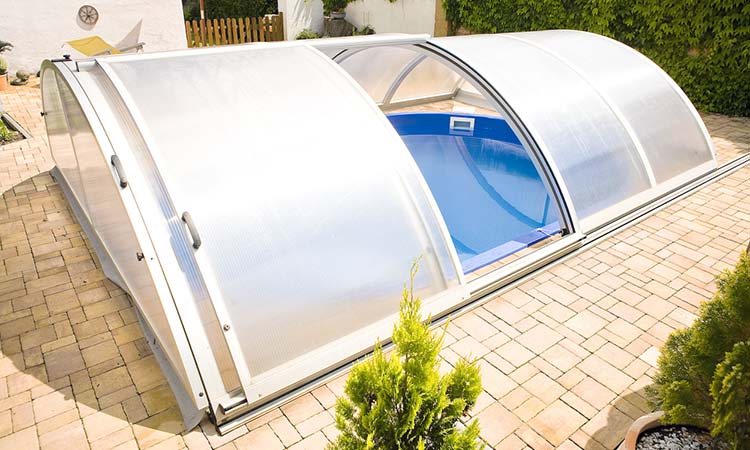

Frégate low pool enclosure 420 x 300 x 90 in height
Ref. Provider TREND BAS
Frégate low pool enclosure 420 x 300 x 90 in height
Telescopic pool enclosure,
Delivered pre-assembled/assembled,
Robust, aluminium structure,
Made to measure model.
Delivered pre-assembled/assembled,
Robust, aluminium structure,
Made to measure model.
- Complies with standard NF P 90-309
- Official retailer
In stock
Why choose a pool shelter? This is an efficient and economic way to lengthen your swimming season.
A fluid design makes the Frégate low pool enclosure the perfect solution for those who wish to discreetly cover their pool. The relatively low height of the enclosure allies esthetic with compactness. Without clutter, this pool enclosure provides sufficient height to comfortably swim under cover.
Conform to the security norm NF P90-309, the enclosure is secure, adaptable depending on the length of your pool and modular, depending on your wants and needs. Robust, its aluminium structure and polycarbonate wall panels ensure high resistance to weather conditions.
A low pool enclosure, efficient and secure : An enclosure that protects your swimming pool. An enclosure that gives you warm water, longer. An enclosure that makes economies whilst being environmentally friendly.
The Frégate is composed of several models. The number of modules that compose the structure depends on the total length of the enclosure. Using an inside latch system, the modules remain independent one from the other. This means you can adjust the position of each module as desired.
* The enclosure is placed on two rails. The width of the rails depends on the number of modules that compose the enclosure.
Bronze effect enclosure (on option), Inside length 8,40 m, composed of 4 modules and rail extension
Various types are entry points can be chosen. All versions are equipped with a key lock that requires a two-handed action, conforming to the norm NF P90-309.
1- Sliding door on front panel.
2- Sliding door on front panel with door sill integrated into the main structure. For enclosures with a width greater than 6 metres.
3- Lateral sliding door. Available on option.
Removable front panels
Frégate pool enclosures are equipped with removable front and rear panels.
3 tightening screws situated on the panels allow them to be removed or replaced in all simplicity.
Tightening screw on removable panel
Key lock
Door rail
The above schema demonstrates the Frégate pool enclosure in operation. This version includes the available option of two extension rail kits.
- Extension rails: The extension rail kit means your pool enclosure can be positioned without covering the pool water at all.
(The extension rail kit is available as an option)
Enclosure without rail extension kit
Enclosure with rail extension kit
Opt for the security rail for your pool enclosure available on option. You can walk in bare feet on this type of rail without discomfort and avoid the risk of hurting your foot or falling.
Several modules constitute an enclosure, each closing or opening into each other without difficulty.
One person alone can :
The Frégate is composed of an aluminium structure (section width 80 x 40 mm) with elox treatment and anti-UV treatment on both sides of on wall panels (10mm thick).
- Light : Made from aluminium, the structure is easy and light to handle and assemble.
- Resistant : The elox treatment ensures resistance to use, corrosion and heat.
- Easy to care for : The structure is easily cleaned with soap and water, without using abrasive cleaning agents.
3 choices of colour : tinted in the mass : aluminium (standard), anthracite and bronze (on option).
Aluminium (standard)
Anthracite (option)
Bronze (option)
The front and rear panels of the Frégate can be chosen in transparent plexiglass (on option)
The Frégate low enclosure acts as an insulation around your pool and limits heat loss.
To optimise insulation, the enclosure is equipped with :
- Polyamide brushes at ground level between each module.
- An Elastomer bib on the front panel.
The Frégate pool enclosure is delivered pre-assembled, 2 persons need to reception the delivery. All delivered merchandise must be checked with the driver.
Loading the enclosure prior to delivery.
Check with your local authorities any applicable legislation concerning the installation of a pool shelter in your area.
A fluid design makes the Frégate low pool enclosure the perfect solution for those who wish to discreetly cover their pool. The relatively low height of the enclosure allies esthetic with compactness. Without clutter, this pool enclosure provides sufficient height to comfortably swim under cover.
Conform to the security norm NF P90-309, the enclosure is secure, adaptable depending on the length of your pool and modular, depending on your wants and needs. Robust, its aluminium structure and polycarbonate wall panels ensure high resistance to weather conditions.
Advantages
Warmer water for longer in the season
The Frégate pool enclosure isolates the pool area and contributes to the maintaining the conditions needed to lengthen your swimming season. By reducing the loss of calories, water heats faster and cools over a longer period of time.
The black curve corresponds to the evolution of water temperature in a pool without an enclosure.
The red curve corresponds to the evolution of water temperature in a pool with an enclosure.
The Frégate pool enclosure isolates the pool area and contributes to the maintaining the conditions needed to lengthen your swimming season. By reducing the loss of calories, water heats faster and cools over a longer period of time.
The black curve corresponds to the evolution of water temperature in a pool without an enclosure.
The red curve corresponds to the evolution of water temperature in a pool with an enclosure.
Your children's and pet's security
A pool enclosure protects pool access. The entry is equipped with a key lock system that requires a two-handed action to operate.
Conforming to the relative legislation (NF P90-309), Frégate is a product that benefits from a long experience of pool enclosure manufacturing. The manufacturing process has been conceived with a constant regard towards improvement to propose an enclosure that takes into account the full requirements of the user.
A pool enclosure protects pool access. The entry is equipped with a key lock system that requires a two-handed action to operate.
Conforming to the relative legislation (NF P90-309), Frégate is a product that benefits from a long experience of pool enclosure manufacturing. The manufacturing process has been conceived with a constant regard towards improvement to propose an enclosure that takes into account the full requirements of the user.
Covering your pool water
The pool cover protects your pool water from outside impurities (leaves, pollen, pollution...) and limits the phenomenon of water evaporation and the variation of pH level due to rainwater.
This protection offers :
- A gain of time spent on pool maintenance.
- Economies made on pool treatment products whilst adopting an environmentally friendly attitude.
- If your pool is equipped with a heat pump, an enclosure equally economises its use.
The pool cover protects your pool water from outside impurities (leaves, pollen, pollution...) and limits the phenomenon of water evaporation and the variation of pH level due to rainwater.
This protection offers :
- A gain of time spent on pool maintenance.
- Economies made on pool treatment products whilst adopting an environmentally friendly attitude.
- If your pool is equipped with a heat pump, an enclosure equally economises its use.
A low pool enclosure, efficient and secure : An enclosure that protects your swimming pool. An enclosure that gives you warm water, longer. An enclosure that makes economies whilst being environmentally friendly.
Description of the Frégate low pool enclosure
The Frégate is composed of several models. The number of modules that compose the structure depends on the total length of the enclosure. Using an inside latch system, the modules remain independent one from the other. This means you can adjust the position of each module as desired.
The composition of modules depending on your pools length
| Inside length of pool enclosure | Number of modules | Width of each rail* |
| 4,20 m | 2 | 16 cm |
| 6,30 m | 3 | 22 cm |
| 8,40 m | 4 | 24,5 cm |
| 10,50 m | 5 | 36,5 cm |
| 12,60 m | 6 | 44 cm |
| 14,70 m | 7 | 51.5 cm |
| 16,80 m | 8 | 59 cm |
* The enclosure is placed on two rails. The width of the rails depends on the number of modules that compose the enclosure.
The central height of your enclosure
Inside width
Maximum height - Low model
up to 3,00 m
0,8 - 1,0 m
up to3,50 m
1,1 - 1,2 m
up to 4.00 m
1,2 - 1,3 m
up to 4,50 m
1,3 - 1,4 m
up to 5,00 m
1,4 - 1,5 m
up to 5.50 m
1,5 - 1,6 m
up to 6.00 m
1,6 - 1,9 m
up to 6.50 m
1,8 - 2,0 m
up to 7.00 m
2,0 - 2,2 m
up to 7.50 m
2,1 - 2,3 m
up to 8.00 m
2,2 - 2,4 m
Bronze effect enclosure (on option), Inside length 8,40 m, composed of 4 modules and rail extension
The entry points
Various types are entry points can be chosen. All versions are equipped with a key lock that requires a two-handed action, conforming to the norm NF P90-309.
1- Sliding door on front panel.
2- Sliding door on front panel with door sill integrated into the main structure. For enclosures with a width greater than 6 metres.
3- Lateral sliding door. Available on option.
1. Sliding door on front panel.
2. Sliding door on front panel with door sill.
3. Lateral sliding door. (on option)
Removable front panels
Frégate pool enclosures are equipped with removable front and rear panels.
3 tightening screws situated on the panels allow them to be removed or replaced in all simplicity.
Tightening screw on removable panel
Key lock
Door rail
The pool enclosures rails and wheels
The above schema demonstrates the Frégate pool enclosure in operation. This version includes the available option of two extension rail kits.
The Frégate pool enclosure has a guiding system using performant rails that let the modules slide freely, without effort.
They also ensure the role of securely maintaining the structure to ground level whilst giving excellent resistance to wind force.
- Stain-resistant : The rails have an anti-stain protection. This system ensures clean rails and the fluid flow of the modules.
- Double-direction modules : The enclosure can be opened in both directions
- Stopping system : A latch locks the modules one to the other
- Bearings : ABS wheels mounted on ball bearings. These wheels do not require maintenance, are solid and resist to weather conditions.
They also ensure the role of securely maintaining the structure to ground level whilst giving excellent resistance to wind force.
- Stain-resistant : The rails have an anti-stain protection. This system ensures clean rails and the fluid flow of the modules.
- Double-direction modules : The enclosure can be opened in both directions
- Stopping system : A latch locks the modules one to the other
- Bearings : ABS wheels mounted on ball bearings. These wheels do not require maintenance, are solid and resist to weather conditions.
- Extension rails: The extension rail kit means your pool enclosure can be positioned without covering the pool water at all.
(The extension rail kit is available as an option)
Enclosure without rail extension kit
Enclosure with rail extension kit
On option : Security rail
Opt for the security rail for your pool enclosure available on option. You can walk in bare feet on this type of rail without discomfort and avoid the risk of hurting your foot or falling.
General characteristics of a pool enclosure : An easy opening and closing system
Several modules constitute an enclosure, each closing or opening into each other without difficulty.
One person alone can :
1.
2.
3.
4.
The structure of the enclosure
The Frégate is composed of an aluminium structure (section width 80 x 40 mm) with elox treatment and anti-UV treatment on both sides of on wall panels (10mm thick).
- Light : Made from aluminium, the structure is easy and light to handle and assemble.
- Resistant : The elox treatment ensures resistance to use, corrosion and heat.
- Easy to care for : The structure is easily cleaned with soap and water, without using abrasive cleaning agents.
3 choices of colour : tinted in the mass : aluminium (standard), anthracite and bronze (on option).
Aluminium (standard)
Anthracite (option)
Bronze (option)
The enclosures wall panels:
Excellent insulation using multi-walled polycarbonate wall panels used in the same manner as double glazing : Limiting temperature exchange between inside and outside.
- Solid : Resists to temperature variation and weather condition.
- Light : Easy to manipulate.
- Insulates : Reduces the loss of heat calories, water heats quickly and cools slowly.
- Filters UV : Protects the colour of your liner, avoids the multiplication of algae, allowing light to come into your shelter.
6 choices of colour : Translucid (standard). Other colours available on option : Smoked, green, white, midnight blue and sky blue.
- Solid : Resists to temperature variation and weather condition.
- Light : Easy to manipulate.
- Insulates : Reduces the loss of heat calories, water heats quickly and cools slowly.
- Filters UV : Protects the colour of your liner, avoids the multiplication of algae, allowing light to come into your shelter.
6 choices of colour : Translucid (standard). Other colours available on option : Smoked, green, white, midnight blue and sky blue.
The front and rear panels of the Frégate can be chosen in transparent plexiglass (on option)
Insulation
The Frégate low enclosure acts as an insulation around your pool and limits heat loss.
To optimise insulation, the enclosure is equipped with :
- Polyamide brushes at ground level between each module.
- An Elastomer bib on the front panel.
Technical charateristics
Structure and rails
Aluminium (standard). Other colors available on option : anthracite or bronze.
Section dimensions
40 x 60 mm - 10 mm thick
Surface treatment
Elox
Wall panels
Polycarbonate - 10 mm thick treated anti-UV inside and out.
Polycarbonate colour
Translucid (standard). Other available options : Smoked, green, white, midnight blue or sky blue.
Wheels
ABS mounted on ball bearings
Front and rear panels
Removable
Door
Equipped with a key lock
Water
Compatible with all water treatments
Frégate low pool enclosure : Available options
- Comfort rail
- Triple rail
- Sliding two-directional rail
- Rail extension
- Additional door without door sill
- Additional door with door sill
- Additional sliding lateral door
- Modification of structure colour and sections (bronze or anthracite)
- Modification of polycarbonate wall panel colour
- Plexiglass front / rear panel
- Additional intermediate reinforcement bar
- Additional key lock for module
Packing and transport
The Frégate pool enclosure is delivered pre-assembled, 2 persons need to reception the delivery. All delivered merchandise must be checked with the driver.
Loading the enclosure prior to delivery.
Check with your local authorities any applicable legislation concerning the installation of a pool shelter in your area.
Discover all the Frégate range of pool enclosures :
Frégate low model
FRÉGATE low pool enclosure
FRÉGATE low pool enclosure
Frégate medium pool enclosure
FRÉGATE medium pool enclosure
FRÉGATE medium pool enclosure
Frégate high pool enclosure
FRÉGATE high pool enclosure
FRÉGATE high pool enclosure
Warranty
3 years
