Astral Evo Top heat pump

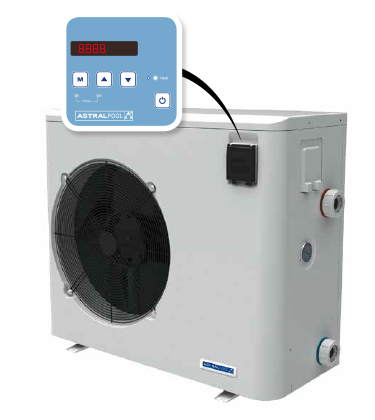

Astral Evo Top heat pumps

Natural pool heat is principally linked to the pool water's exposition to sunlight. Varying climatical conditions do not allow a constant or reliable source of heat for your swimming pool.

To optimise the use of your pool, the installation of a heating system is the most reliable way to maintain the desired swimming temperature.

The Astral Evo Top heat pumps optimise your swimming season maintaining your pool water at the desired temperature.

The concept of a heat pump is to transform the calories contained in the outside ambient air to heat pool water free of charge. A heat pump consumes electricity to run, however, the rendered energy is 4 to 5 times greater than its consumption. This is an economical and ecological solution.

This fast process ensures an optimisation of the pump's heating time. The majority of other models on the market defrost the evaporator by stopping their compressor and forcing the fan to circulate ambient air.

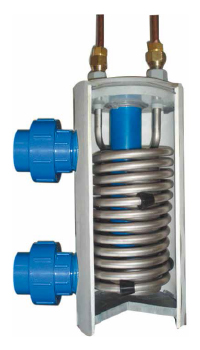

Technical features

Model Astral Evo Top	5Kw single-phase	9Kw single-phase	13,5Kw single-phase	16Kw single-phase	16Kw three-phase	21Kw single-phase	21Kw three-phase	28Kw three-phase
Electrical supply (V/Ph/Hz)	220/2/50	220/2/50	220/2/50	220/2/50	380/3/50	220/2/50	380/3/50	380/3/50
Exchanger	Hitachi Rotary R410a	Hitachi Rotary R410a	COPELAND SCROLL R410a	COPELAND SCROLL R410a	COPELAND SCROLL R410a	COPELAND SCROLL R410a	COPELAND SCROLL R410a	COPELAND SCROLL R410a
Compressor	Rotary	Rotary	Scroll	Scroll	Scroll	Scroll	Scroll	Scroll
Fan	Axial	Axial	Axial	Axial	Axial	Axial	Axial	Axial
Noise level at 1m dB(A)	50	51	54	55	55	57	57	59
Noise level at 10m dB(A)	39	40	43	44	44	47	47	48
Water flow dectector	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated	Integrated
Friction loss (kPa)	12	12	15	16	16	16	16	18
Defrosting	Warm gas	Warm gas	Warm gas	Warm gas	Warm gas	Warm gas	Warm gas	Warm gas
Winter purge	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes

Dimensions and weight

Model Astral Evo Top	5Kw single-phase	9Kw single-phase	13,5Kw single-phase	16Kw single-phase	16Kw three-phase	21Kw single-phase	21Kw three-phase	28Kw three-phase
Dimensions (mm)	390 x 988 x 559	390 x 988 x 559	444 x 1067 x 773	444 x 1067 x 773	500 x 1080 x 918	500 x 1080 x 918	500 x 1080 x 918	500 x 1080 x 918
Net weight (kg)	30	37	69	90	90	110	110	135

Heat pump performance

Model Astral Evo Top	5Kw single-phase	9Kw single-phase	13,5Kw single-phase	16Kw single-phase	16Kw three-phase	21Kw single-phase	21Kw three-phase	28Kw three-phase
Recommended volume of pool* (m³)	10-20	25-33	35-60	60-85	60-85	75-120	75-120	100-140
Power output* (kw)	5	9	13,5	16	16	21	21	28

* Residential pool with cover from May to September, air 27°C, water 27°C, relative humidity 70%, filtration 12 hours/day.
** Coefficient of performance = Power output / Power input

Indications for the installation of a heat pump

Installation concept

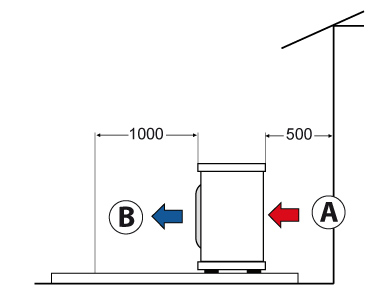

Installation of the heat pump

OPTION: U-CONNECT connection kit

The U-Connect connection kit enables you to link a heat pump to your pool without plumbing, labor or tools. This quick installation does not require a supplementary electrical supply and avoids the use of a by-pass. Just connect the two supplied pipes to your Astral Evo Top heat pump and link them to the portable U-Connect control box. Self-priming, the U-Connect system remains independent to your filtration system. You get warm water, faster, without losing heat through piping as is often the case in a classic configuration.

Warranty

2 years
