Pool heat pump Zodiac POWER

Zodiac POWER 5 heat pump
Titanium exchanger
R410A cooling gas
Supply cable with domestic mains plug supplied (excepting model Power 11)
- Single-phase
The ZODIAC heat pump in detail
The ZODIAC heat pump in operation
The POWER range from ZODIAC - PSA is available in 4 different heating capacities for residential, open-air pools with a maximum volume of 70m3 (in or above ground).
An air/water monobloc heat pump has an operational outdoor temperature of + 5°c.
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
.
Features of the POWER pump

Exchanger
Titanium condenser/exchanger compatible with salt water treatment with a lifetime anti corrosion guarantee.
- Water flow controller
- Pallet rotary compressor
- HP and LP security pressure switch
- Automatic defrosting by forced ventilation
- Frost protection thermostat (stops at +7°C)

Digital control
The digital control panel enables you to programme the desired pool water temperature.
- Polypropylene bodywork
- R410A cooling liquid (conforms to legislation in vigor concerning cooling liquids)
- PVC 1/2 Connectors Ø50mm supplied
- Supply cable with domestic mains plug supplied.
Conforms to EU legislation
Installation of the pool heat pump
To be placed outdoors, close to the technical house.

Easy connection
You can easily connect your heat pump to the hydraulic circuit using the threaded connectors situated on the back wall of the pump.

Temperature probe
A temperature probe is integrated into your heat pump and allows use up to 5° celsius.

Compressor
The wrapped rotary compressor optimises the performance of your pump, maintaining an ultra quiet operational mode.
Models | POWER 5 single-phase | POWER 7 single-phase | POWER 9 single-phase | POWER 11 single-phase |
Reference Zodiac | W20ZPOWER5M | W20ZPOWER7M | W20ZPOWER9M | W20ZPOWER11M |
Conditions of use 1 : Air 15ºC/Water 24ºC/ Humidity 70% (Zodiac figures)
Models | POWER 5 single-phase | POWER 7 single-phase | POWER 9 single-phase | POWER 11 single-phase |
Power output (kW) | 4,7 | 6,5 | 8,6 | 10,5 |
Power input (kW) | 1 | 1,6 | 2,1 | 2,6 |
COP (coefficient of performance) | 4,7 | 4,1 | 4,1 | 4,1 |
Conditions of use 2: Air 28ºC/Water 28ºC/ Humidity 80%
Models | POWER 5 single-phase | POWER 7 single-phase | POWER 9 single-phase | POWER 11 single-phase |
Power output (kW) | 6,1 | 9 | 12 | 14,1 |
COP (coefficient of performance) | 5,6 | 4,7 | 4,8 | 4,7 |
Models | POWER 5 single-phase | POWER 7 single-phase | POWER 9 single-phase | POWER 11 single-phase |
Recomended volume of pool (m³)* | 0 to 30 | 20 to 40 | 30 to 60 | 40 to 70 |
Average water flow (m³/h)* | 3 | 4 | 5 | 6 |
Hydraulic connections | 1/2 threaded PVC connections Ø50 to be solvent cemented | 1/2 threaded PVC connections Ø50 to be solvent cemented | 1/2 threaded PVC connections Ø50 to be solvent cemented | 1/2 threaded PVC connections Ø50 to be solvent cemented |
Power supply | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz |
Nominal amperage(A) | 4,45 | 7,09 | 9,36 | 11,2 |
Maximum amperage (A) | 5,2 | 8,7 | 12,4 | 15,17 |
Section power supply cable (mm2) | Domestic mains plug supplied | Domestic mains plug supplied | Domestic mains plug supplied | 3 x 2,5 (not supplied)** |
Decibels (dbA)*** | 65,4 | 66,7 | 69 | - |
Decibels at 10m(dbA)*** | 37,4 | 38,7 | 41 | - |
Net weight (kg) | 45 | 47 | 48 | 50 |
Dimensions (mm) | L840xw400xH665 | L840xw400xH665 | L840xw400xH665 | L840xw400xH665 |
* residential pool with thermal cover from May to September. Air 15 º C.
** For a maximum length of 20 meters.
***Figures measured and certified following the norm ISO 3741 and EN ISO 354 by CTTM (Center of Transfer Technology, Le Mans, France).

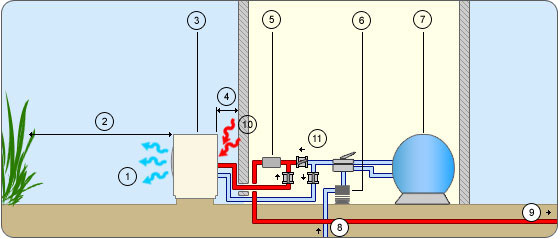

Installation schema
2. No surrounding obstacles for a radius of 4 - 5m
3. POWER heat pump
4. 0,50 minimum
5. Water treatment system
7. Filter
8. Suction
9. Discharge nozzles
10. Hot air inlet
11. By-pass

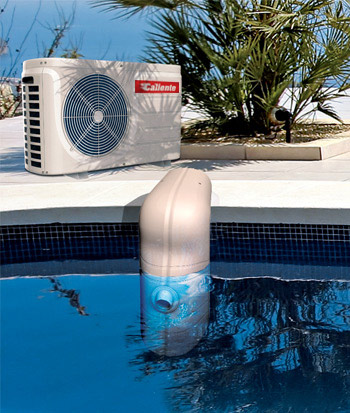

OPTION: U-CONNECT CONNECTION KIT FOR HEAT PUMP


The U-Connect connection kit enables you to link your heat pump to your pool without plumbing, labor or tools. This quick installation does not require an additional electrical supply and avoids the need for a by-pass. Just link the two supplied pipes to your Zodiac Power heat pump and connect them to the portable U-Connect control box. Self-priming, the U-Connect system is independent of your filtration system. You get warm water, faster, without losing heat through piping as is often the case in a traditional configuration.
Warranty
2 years
