>> Pool covers - pool covering solutions Pool shutters SIGMA above ground pool shutter

SIGMA above ground pool shutter

Sigma
Recommended retail price 2024 starting from :
2490 €
Our Price starting from :
2490 € Including VAT
Ref. Abatik 016031
SIGMA motorised automatic pool shutter with limit management
EUR 2490.00
Above ground motorised shutter, domestic power supply,
limit management system,
Fast and easy installation,
For pools with maximum dimensions of 10 x 5m
  • Complies with standard NF P 90-308
In stock
Swimming pool online brings to you exclusively the SIGMA above ground pool safety shutter. Designed for existing pools or pools under construction, the security shutter SIGMA is compatible with pools with inside dimensions of up to 10 x 5 m (not including the pool stairs).

Safety pool shutter SIGMA

Inside dimensions of pool
Including VAT*
3 m x 3 m
2100€
6 m x 3 m
2390€
7 m x 3,5 m
2850€
8 m x 4 m
3140€
9 m x 4,5 m
3460€
10 m x 5 m
3790€

* Shutter sent from manufacturer directly to client. Above prices correspond to model with white shutter slats and power cable connection.

If the dimensions of your pool are not contained in the above table, call our team on +33 (0)4 75 802 962 (international) or UK freephone 0808 238 60 75 to get your free quote.

Advantages of the SIGMA shutter


- Security
Conform to norm NFP-90-308, the SIGMA automatic, motorised pool shutter secures your pool while limiting installation labour.

Capable of supporting a weight of 100 kilos, this method limits drowning risks. Disengaged mechanics allow the shutter to be unrolled even in the case of a power cut, enabling you to secure your pool in any situation.

- Lengthens your swimming season
The shutter conserves and maintains the water temperature, lengthening your swimming season.

- Easy to install
The axis support legs are easily placed and require 2 anchoring points and 2 drilled holes per leg.

The electrical connection, situated in the leg base is easily accessible.
Sigma side view


- Robust and reliable
The aluminium axis on which the shutter is rolled offers a maximal resistance. The axis is ribbed, ensuring rigidity, solidity and horizontal positionning. The axis is easily installed on its legs in a few minutes using locking pins and integrates bearings designed to protect the motor from friction due to rotation. In operation, the structure uses the least effort possible, ensuring dependable use with a long lifespan. The ribbed axis equally allows you to slide and shut the shutters binding straps.

- Compact and discreet
The SIGMA shutter respects the pool environment. Once rolled on the axis, the shutter occupies a minimum of space, integrating perfectly into your poolside environment.

- User-friendly
Opening and closing manipulation is effectuated by one person using the key contact. 3 minutes is ample to roll or unroll your shutter. The motorisation includes limit management that does not require an internal electronic sensor. Limit management allows the shutter to stop independently when being opened or closed. The upper cover of the legs are positioned at an inclined angle to avoid rain water entering and stagnating internally.

- Less maintenance and more economies
Limiting water evaporation, reducing cleaning maintenance and keeping water clean. The opaque slats prevent photosynthesis conducive to the development of algae.

- Slat lifespan
To preserve their colour, the slats have an anti-staining treatment. Composed from Calcium and Zinc and complete with an anti-UV treatment, the Sigma slats offer an excellent heat resistance and limit the risk of deformation.

The SIGMA shutter is delivered with all necessary equipment to install and put into operation :

- Motorised axis and supporting legs
- Shutter body
- Transformer box 220 V / 12 V
- Anti lifting device
- Binding straps, axis / shutter body
- Anchorage material

Sigma automatic shutter
Unrolling the Sigma
Sigma in closed position


Technical details


Axis
Anodized aluminum 148 mm
Electric motor
Contained in axis, 12 V, tubular with adaptable limit management
Electrical distribution box
220 V / 12 V
Emergency system
Axis unlocked using locking pin
Opening / closing
Key contact, 3 positions
Floating shutter
Composed with slats
Shutter / axis fixation
Binding straps
Periods of use
Compatible all seasons
Maximum dimensions
10 m x 5 m


Legs
Rigid in white lacquered aluminium (Length 12 X height 43 X Depth 6 cm)
Leg anchoring
2 drilled holes and 2 anchoring points. Fixation simple and hardwearing

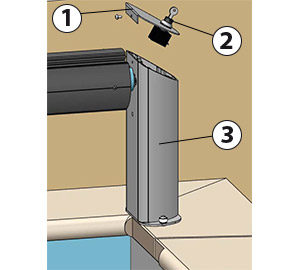

1
White lacquered aluminium lid
2
Key switch
3
White lacquered aluminium leg structure - U-profiled
Sigma leg schema

Detail of slats


Slats
Protruding PVC with anti-staining treatment
Composition
Calcium/Zinc and anti-UV
Length of slats
83 mm
Height of slats
15 mm
Heat retention
Excellent
Simplified clipping system
Male to female clip
Caps
Caps soldered and factory tested

Available slat colours
White. Sand and grey on option.
Available leg colours
White. Ivory and light grey on option.
Pool compatibility
Rectangular : consult us for other pool shapes.
Pool step option
At the pool extremity : consult us
Available slat colours


Assembly of shutter body


To clip one slat to the other, To clip one slat to the other, begin by engaging the male fixture on the right-hand slat into the female fixture on the left-hand slat (fig.1 et fig.2).

- Repeat an oscillating movement till the slats click together (fig.3).

- Put into place the 1st row of slats that are equipped with binding straps using the flat clamp strap. Equalise and balance the lateral tension of the shutter body (fig.4).

Assembly slats sigma

To unclic a slat, follow the same procedure, in the opposite manner : ( fig.1) push on the inferior part of the female slat (left hand slat) to free the upper clip hook of the male slat (right hand slat).

Installation of shutter


The shutters axis


- The axis should be positioned horizontally, flat and perpendicular to the pool.

- The axis aligned with the rear pool borders edge or at the final radius. The axis is centered to the width of the pool.

- The 2 leg supports of the SIGMA shutter should be totally horizontal and level. The legs should be tightly fitted against the tube.

- The shutter does not harm the pool border; As the legs are adjustable in height, the shutter body avoids touching the surface of the pool border.

- In the case of sharp-angled pools and a maximum, position the axe of the legs 15cm towards the interior of the pool. For pools with a rayon superior to 15cm, consult us.

- We advise not to proceed with floor anchorage before effectuating a full unrolling of the shutter body to check and adjust positioning.

- A pool border trim is obliged to accomodate the passage of the slats, avoiding rubbing when rolling and unrolling the shutter body. This also avoids caps being broken.

Cableing


The electrical distribution box must be installed in the technical room (1) in respect to the electrical norm C15-100.

1 circuit is needed for each 2-wired cable (2) :

- 2 x4 mm² cable section if the cable is less than 15 m to arrive at your pool
or
- 2 x 6 mm² if the cable is more than 15 m to arrive at your pool (3)
Cable schema SIGMA

The electrical installation must respect the norm C15-100.

- Earth the pool and all its equipment to evacuate any stray currents that accentuate the phenomena of oxidisation on metallic parts (inox 316, Anodized 6060 aluminium, beckryzing lacquer).

- The multiplication of water treatment leading to the non-respect of water equilibrium is not covered in the conditions of guarantee and in this case, we do not accept responsibility for any degradation or damage to the product.

In the case of the use of a water treatment unit that produces an electrochemical reaction that accelerates metal corrosion, it is important to take all precautions to avoid and limit negative effects.

In general, it must be kept in mind that the need of an oxidising agent is reduced between 75 and 90% between an open and closed pool shutter. An electrical distribution box can be adapted to communicate the position of the shutter (open or closed) to the water treatment unit.

- The electrical distribution box, must be installed in a dry area, fitted with a 10A circuit breaker and a 30mA protection switch, 1st position on the circuit (3 x 2,5 mm² 10 A)to supply the 220 v / 12 v transformer.

- All the cables are linked in accessible, waterproof junction boxes and out of the "volume 0" of the pool

Electrical cable is needed between the shutters electrical distribution box the axis mechanics :

Shutter modelDistance from technical house to poolelectrical cable sectionlimit management motor sensorsSwitch
SIGMA< 15 m2 x 4 mm²linkedlinked
SIGMA< 30 m2 x 6 mm²linkedlinked


Security system


The automatic shutter SIGMA is equipped with an anti-lifting system conform to the norm NF P 90-308. This system is composed of ABS flanges + Straps + wall anchoring brackets. The number of anti-lifting devices needed depends on the width of the pool and is determined by the manufacturer.

Transport and packing


To ensure the best care possible for your shutter transport the packaging is filmed and strapped to a transport pallet.

For easy handling, each package does not exceed 40kg in weight.

To ensure a delivery in the best possible conditions, our transport service will contact you to arrange a delivery time.

It is essential to have 2 persons to reception your pool shutter.
Sigma packaging

Warranty

2 years
