Pool heating and dehumidification Heat pumps for swimming pools Heat pump 21kW CALIENTE INVERPOOL DOMO WIFI Heat pump 21kW CALIENTE INVERPOOL DOMO WIFI
Recommended retail price 2024 :
2890 €
Our Price :
2890 € Including VAT
Ref. Abatik 025449
Ref. Provider XP21Csi+32

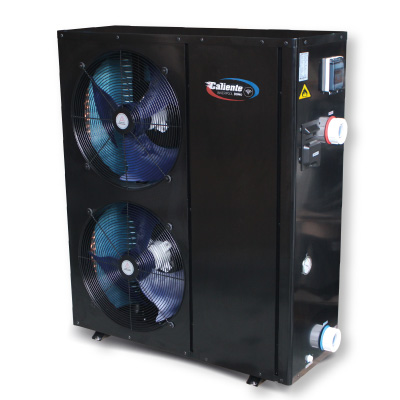

Heat Pump CALIENTE INVERPOOL DOMO 21 kw R32 Single-Phase
Ref. Provider XP21Csi+32
Heat Pump CALIENTE INVERPOOL DOMO 21 kw R32 Single-Phase
For pools up to 120 m3 maximum, 70m3 recommended
Reversible: Can heat or cool pool water,
Inverter technology: economical and silent running.
effective all year round, ranges down to -20°C,
remote control using built-in wifi
Included: winter cover and silent block
Reversible: Can heat or cool pool water,
Inverter technology: economical and silent running.
effective all year round, ranges down to -20°C,
remote control using built-in wifi
Included: winter cover and silent block
In stock
Features
| Model | Unit | Caliente Inverpool Domo 21kW |
| Maximum pool volume* | m3 | 120 m3 |
| Feed | (V) | 220/240V 50/60Hz |
| Intensity | (HAS) | 13 |
| Recommended fuse | (HAS) | 20 |
| Compressor | Brand | Mitsubishi |
| Exchanger | Titanium | yes |
| Water flow | m3/h | 6 |
| Friction loss | kPa | 18 |
| Number of fans | Qty | 1 |
| Fan speed | Silent-Powerful (RPM) | 420-680 |
| Sound level at 1 m** | dB(A) | 56 |
| Sound level at 10 m** | dB(A) | 41 |
| Gas | Type | R-32 |
| Pipe dimensions | mm | 50 |
| Winter cover | yes | yes |
| Dimensions | mm | 1070x420x855 |
| Net weight | Kg | 108 |
| Gross weight | Kg | 123 |
Performance
Heating 27° air temperature, 26° water temperature
| Model | Unit | Caliente Inverpool Domo 21kW |
| Returned heating capacity 27°C AIR / 26°C WATER | Boost-Eco-quiet (kW) | 21-15-4.6 |
| Energy consumption | Boost-Quiet (kW) | 2.98-0.26 |
| Coefficient of performance | Boost-Quiet | 7.1-17.6 |
Heating 15° air temperature, 26° water temperature
| Model | Unit | Caliente Inverpool Domo 21kW |
| Returned heating power 15°C AIR / 26°C WATER | Boost-Eco-quiet (kW) | 14-10-3 |
| Energy consumption | Boost-Quiet (kW) | 2.6-0.34 |
| coefficient of performance | Boost-Quiet | 5.3-8.8 |
Heating -10° air temperature, 26° water temperature
| Model | Unit | Caliente Inverpool Domo 21kW |
| Returned heating power -10°C AIR / WATER | Boost-Eco-quiet (kW) | 6.6-1.4 |
| Energy consumption | Boost-Quiet (kW) | 2.55-0.59 |
| coefficient of performance | Boost-Quiet | 2.5-4.4 |
Cooling 30° air temperature, 26° water temperature
| Model | Unit | Caliente Inverpool Domo 21kW |
| Cooling power restored 30°C AIR / 26°C WATER | Boost-Eco-quiet (kW) | 11.6-4.21 |
| Energy consumption | Boost-Quiet (kW) | 2.55-0.59 |
| coefficient of performance | Boost-Quiet | 4.55-7.18 |
*Average values estimated from 15/05 to 15/09 for a private pool equipped with an isothermal cover outside bathing periods, water T° at 27°C, filtration 15 hours a day (24 hours a day for warming up ). Basin located in department 06, altitude 10 m. Non-exhaustive criteria, carrying out a heat balance is essential to determine the appropriate model.
**In Boost/Quiet mode.
Product description
The Caliente Inverpool Domo WIFI heat pumps are reversible, they heat or cool the water in your swimming pool according to the programmed temperature.
They have Full Inverter technology, which allows the speed of rotation of the compressor and the fan to be varied according to the heating needs.
Caliente Inverpool Domo WIFI heat pumps are defrosting and exceptionally efficient, their operation is possible down to a outside temperature of -20°C
Product benefits
• Reversible: Can heat or cool your pool water
• Operational range down to -20°C
• Three operating modes (silent, smart and powerful)
• Remote control by integrated Wifi
• Excellent Coefficient of Performance (COP)
• Low power consumption
• Very quiet
News:
• Gas R32
• Built-in 3G/4G Wifi Control
• Automatic temperature management (heating/cooling)
• Included: winter cover and Silent Bloc
Full Inverter Technology
The Full Inverter technology automatically regulates and varies the speed of rotation of the compressor and the fan of the heat pump according to the heating needs, and this to maintain the water at the desired temperature.
Advantages :
- The operation of the heat pump becomes very silent without successive switching on and off,
- your installation lasts longer with less wear
- you achieve up to -30% energy savings compared to a conventional heat pump.
More efficient and ecological R-32 gas
Replacing R-410A gas with R-32 refrigerant reduces greenhouse gas emissions by nearly 66%.
Thanks to a better thermal capacity, the quantity of fluid in the installation is reduced resulting in an improvement in energy performance of up to 10%.
In addition, the R32 refrigerant is totally pure (unmixed), facilitating recycling.
The choice of R-32 fits perfectly with the constant objective of limiting the environmental impact of our heat pumps.
Thanks to a better thermal capacity, the quantity of fluid in the installation is reduced resulting in an improvement in energy performance of up to 10%.
In addition, the R32 refrigerant is totally pure (unmixed), facilitating recycling.
The choice of R-32 fits perfectly with the constant objective of limiting the environmental impact of our heat pumps.
Three operating modes to adapt the pump to your needs
Silent mode
Compressor operation at low speed- Best for temperature maintenance
- Noise and low power consumption
Note: Auto Switch only in Smart mode if the difference between the set temperature and the water temperature is greater than 4°C.
Smart mode
Compressor operation at medium speed- For everyday use
- Reduced noise and consumption
Note: Automatic switch to Powerful mode if the difference between the set temperature and the water temperature is greater than 4°C.
The Powerful mode
Intense compressor operation- Ideal for the start of the season or to compensate for low ambient temperatures
- Maximum heating power
Intelligent temperature management
The controller displays the water temperature, allows you to set the desired operating mode and time slots. Easy to use, digital LED screen.
In addition to the 3 operating speeds, the control panel offers 3 types of operation:
- Heating
- Cooling
- Auto mode: You choose the temperature of your swimming pool, your heat pump takes care of the rest.
With the Auto mode program, the heat pump automatically switches from heating mode to cooling mode, and vice versa, depending on the weather conditions, in order to perfectly maintain the desired water temperature.
You can thus program a delayed start or stop of the heat pump according to your needs (absence, energy prices, etc.).
For better accessibility, a 10 m cable can be used to deport the control panel.
Built-in 3G/4G Wifi control with smartphone app
Caliente Inverpool Domo wifi heat pumps are equipped with 3G/4G wifi remote control via a free smartphone application.
This application allows you to start and stop your heat pump remotely, adjust the water temperature, change the operating mode, modify the clock and the parameters, and be alerted in the event of a malfunction.
How to download it?
It is free and available on Google Play and App Store.
For Apple devices: It requires iOS 8.0 or later and is compatible with iPhone, iPad and iPod touch.
For devices using the Android operating system (such as Samsung), version 6.10 or higher is required.
Maximum sound levels of the Caliente Inverpool Domo range
Sound and heat insulation
The heat pump's exchanger and compressor are protected by an insulated foam envelope, providing heat and sound insulation.Titanium exchanger
The heat exchanger transfers the heat produced by the heat pump to the pool water.It is compatible with all water treatments, including salt electrolysis.
Evaporator
The large evaporator of the pump captures the heat present in the ambient air, and allows the refrigerant to be heated by the recovered calories.The larger the exchange surface, the more the performance of the heat pump is optimized.
Automatic defrosting system
Depending on the hygrometry (humidity level in the ambient air) and the outside temperature, the evaporator of heat pumps can become covered with frost, thus preventing their proper operation.To avoid any malfunction, the Caliente Inverpool Domo heat pumps are equipped with an automatic defrosting system by gas inversion.
At regular intervals, part of the hot gases produced by the compressor are reinjected into the evaporator in order to remove the frost.
Thanks to automatic defrosting, the heat pumps operate from -20°C.
Selection of the installation location
• Install the heat pump outdoors.• The location must allow good air circulation, without obstacles.
• The heat pump must rest on a flat and stable surface, a concrete slab is ideal.
• After installation, the equipment must occupy a vertical position without any inclination.
• The equipment must not be installed in the presence of pollution, corrosive gases, dust or dead leaves.
Installation diagram
1. Caliente Inverpool Domo heat pump
2. Swimming pool pump
3. Pool filter
2. Swimming pool pump
3. Pool filter
4. Suction
5. Backflow
6. Condensation drain
5. Backflow
6. Condensation drain
7. Hot air inlet
8. Cold air outlet
9. Power supply
8. Cold air outlet
9. Power supply
Warranty
7 years on Compressor and Exchanger, 2 years on the rest
