Heliocol solar heating system for pools
Recommended retail price 2024 starting from :
1566 €
Our Price starting from :
1566 € Including VAT
Ref. Abatik 024240
Ref. Provider 1240000
Heliocol solar heating panel for 4x8m pools
Ref. Provider 1240000
Heliocol solar heating panel for 4x8m pools
Lengthens your swimming season,
Can be installed at ground level or on roof,
Large capacity of heat absorption,
Saves energy,
100% environmentally friendly
Can be installed at ground level or on roof,
Large capacity of heat absorption,
Saves energy,
100% environmentally friendly
In stock
This product is no more available.
Heliocol solar heating panel for 4x8m pools
Ref. Abatik 024240 Ref. Provider 1240000
Ref. Abatik 024240 Ref. Provider 1240000
1566 €
Heliocol solar heating panel for 4x9m pools
Ref. Abatik 024241 Ref. Provider 1240100
Ref. Abatik 024241 Ref. Provider 1240100
1824 €
Heliocol solar heating panel for 5x10m pools
Ref. Abatik 024242 Ref. Provider 1240200
Ref. Abatik 024242 Ref. Provider 1240200
2367.60 €
Heliocol solar heating panel for 5x11m pools
Ref. Abatik 024243 Ref. Provider 1240300
Ref. Abatik 024243 Ref. Provider 1240300
2625.60 €
Heliocol solar heating panel for 5x12m pools
Ref. Abatik 024244 Ref. Provider 1240400
Ref. Abatik 024244 Ref. Provider 1240400
2892 €
Heliocol solar heating panel for 6x12m pools
Ref. Abatik 024245 Ref. Provider 1240500
Ref. Abatik 024245 Ref. Provider 1240500
3409.20 €
Ø 50 mm motorised 3-way valve with distance regulation
Ref. Abatik 010435 Ref. Provider HWS000009
Ref. Abatik 010435 Ref. Provider HWS000009
888 €
Ø 50 mm motorised 3-way valve with integrated regulation
Ref. Abatik 010436 Ref. Provider HWS000010
Ref. Abatik 010436 Ref. Provider HWS000010
756 €
Auxiliary pump command and regulation system
Ref. Abatik 010437 Ref. Provider 12084885371091
Ref. Abatik 010437 Ref. Provider 12084885371091
539 €
Caliente Trend pool filtration pump 1 HP single-phase
Ref. Abatik 017270 Ref. Provider FCP-750S
Ref. Abatik 017270 Ref. Provider FCP-750S
329 €
Heliocol solar heating panel
YouTube conditions the playback of its videos on the deposit of tracers in order to offer you targeted advertising based on your browsing.
By clicking on "I authorize" the plotters will be deposited and you will be able to view the video. You have the option of withdrawing your consent at any time.
For more information, visit the YouTube cookies policy
.
The Heliocol solar heating system offers naturally heated pool water all year round. The panel's unique conception ensures a low maintenance, durable installation for total user comfort.

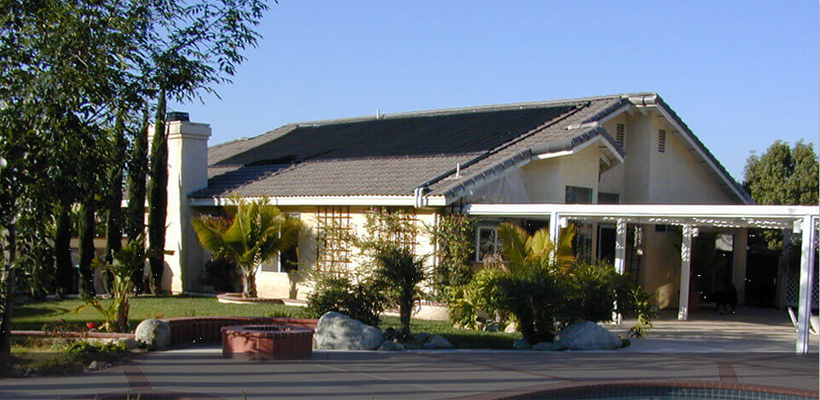

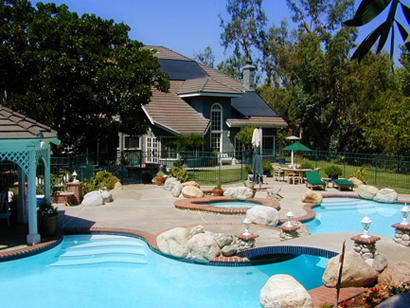

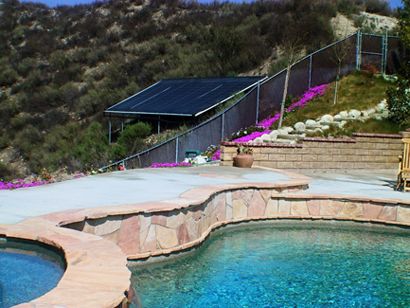

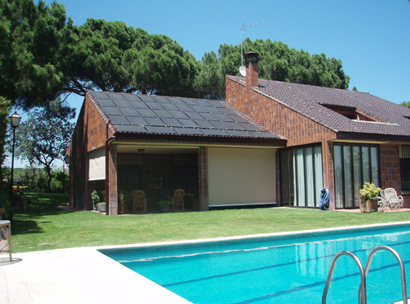

One advantage of the panels is that you can choose between an installation on ground level or on any type of rooftop, regardless of slope gradient or finish.
Orientation should be south or south-west, with a gradient of 30° to optimise efficiency.
You can connect as many panels as you require, depending on the available installation surface and water volume.
Advantages of Heliocol at a glance
Temperature gain
By means of the dimensions of the panels tubes, pool water temperature rises by 10°C after several hours of sun exposure per day during one week.
By means of the dimensions of the panels tubes, pool water temperature rises by 10°C after several hours of sun exposure per day during one week.
Adapted panels
Several sizes of panels exist so your Heliocol system can adapt perfectly to your environment and specific requirements.
Several sizes of panels exist so your Heliocol system can adapt perfectly to your environment and specific requirements.
Flexible
Individual tube design eases installation avoiding small objects on your roof such as a chimney, aeration vents...
Individual tube design eases installation avoiding small objects on your roof such as a chimney, aeration vents...
Unique design
The main advantage of solar heat is in the tubes from which the panel is composed. Inter-dependent, avoiding the formation of mould and dirt deposits. This also allows a better evaporation of humidity present on the rooftop.
The main advantage of solar heat is in the tubes from which the panel is composed. Inter-dependent, avoiding the formation of mould and dirt deposits. This also allows a better evaporation of humidity present on the rooftop.
No maintenance
The unique conception of Heliocol panels allows maximum user comfort with minimum maintenance. The Heliocol system is designed using patented plastic, requiring no supervision.
The unique conception of Heliocol panels allows maximum user comfort with minimum maintenance. The Heliocol system is designed using patented plastic, requiring no supervision.
Resistance
Highly resistant to weather conditions, high winds, storms or frost.
Highly resistant to weather conditions, high winds, storms or frost.
Technical characteristics
Installation
Ground or rooftop
Orientation
South or south-west recommended
Material
Polypropylene with specific UV and heat resistance treatment
Dimensions L x w (in cm)
292 x 120
Surface
3,50 m2
Number of tubes per panel
152 (38 x 4), equating 450 m of tubing
Depth
6,2 cm
Weight of empty panel
8,2 kg
Maximum pressure
6 Bars
Maximum temperature
90° C
Volume of water per panel
11,4 litres
Colour
Black
Installation of panels
For optimal efficiency, it is important that the total surface of Heliocol panels is equal to 60% of the surface of the pool.
To better distribute friction loss, we recommend a maximum of 7 panels per range ; to install more panels, adopt a 2 range installation (or more).

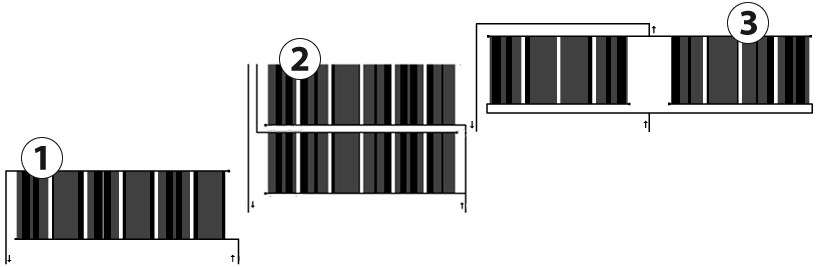

1 On one range
2 On two ranges
3 On one range with shared supply
1 Installation as a series
2 Installation on parallel
Pool dimensions
Required number of Heliocol panels
8 x 4 m
6
9 x 4 m
7
10 x 5 m
9
11 x 5 m
10
12 x 5 m
11
12 x 6 m
13
Heliocol heating system components in detail

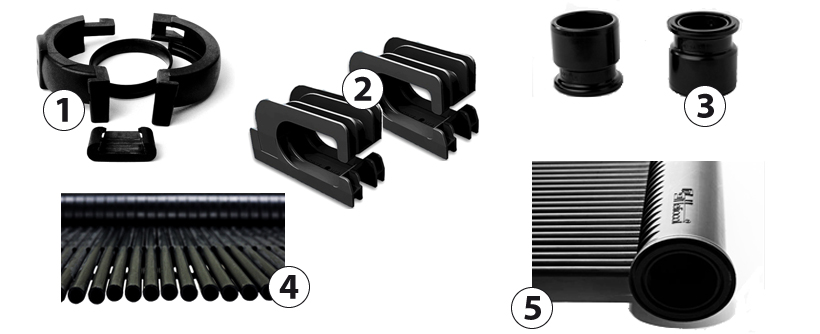

1. 50 mm x 3/4'' paddle clamp
2. Upper and lower panel clamps (to fix panel to roof surface)
3. Tube connections
4. Consecutive panel tubes
5. Moulded panel head
Manual regulation
When manual regulation is used to circulate water through the panels, they should be situated as closely as possible to the technical shelter. The panels must not be supplied during the night or during poor weather conditions (rain, snow, cold periods) as this could cool the pool water temperature. A 3-way manual valve (available on option) allows regulation or can stop supply to the panels.

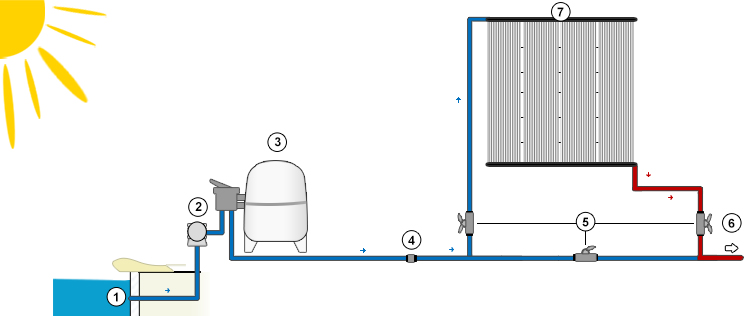

1. Suction
2. Filtration pump
2. Filtration pump
3. Filter
4. Anti-return valve
4. Anti-return valve
5. 3-way by-pass valve (available on option)
6. Discharge to pool
7. Heliocol solar panel
6. Discharge to pool
7. Heliocol solar panel
Automatic regulation
Automatic regulation via an auxiliary pump optimises the efficiency of your system by circulating water through the panels only during ideal climatical conditions. This configuration is ideal when panel installation is a greater from the technical shelter.
Motorised valve

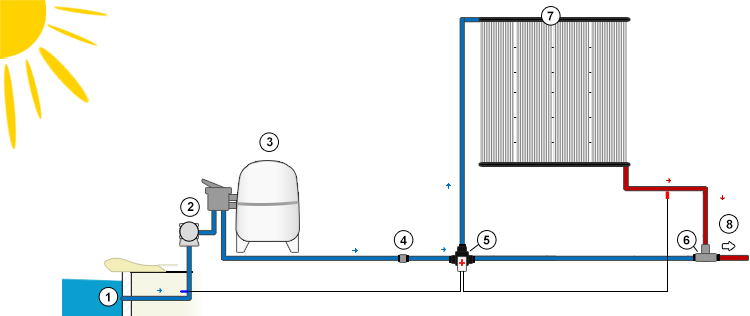

1. Suction
2. Filtration pump
2. Filtration pump
3. Filter
4. Anti-return valve
4. Anti-return valve
5. Motorised 3-way valve
6. T connection
7. Heliocol solar panel
8. Discharge towards pool
6. T connection
7. Heliocol solar panel
8. Discharge towards pool
1. Temperature regulation using 3-way motorised valve with pool filter pump:
This configuration can, in general, be adopted when panel installation is a maximum of 6m from the pool water surface. The 3-way motorised valve is situated in the filtration hydraulic circuit. The temperature regulation opens or closes depending on temperature variation. When water should be heated, water is pumped through the sensor. Heated water returns to the circuit via a T connection.
a/ Ø50mm 3-way motorised valve with integrated regulation
Praher has developed a PVC valve, particularly economic and efficient that features integrated solar regulation.
The SC03 valve is easily integrated (using connections available on option) to above ground pool hydraulic circuits. The desired water temperature can be adjusted in a gauge between +20°C and +40°C.
This regulation method uses:
- A sensor which measures water temperature in the pool with a 3m cable
- A sensor to measure ambient air temperature with 10m cable
Available models include the DN40/d50, electronically commanded EO510 MVO 12-230V AC/DC and specific bearing to compensate pressure, emergency adjustment. Featuring IP protection IP54, EU certification and visual indication of the unit's status.
The SC03 valve is easily integrated (using connections available on option) to above ground pool hydraulic circuits. The desired water temperature can be adjusted in a gauge between +20°C and +40°C.
This regulation method uses:
- A sensor which measures water temperature in the pool with a 3m cable
- A sensor to measure ambient air temperature with 10m cable
Available models include the DN40/d50, electronically commanded EO510 MVO 12-230V AC/DC and specific bearing to compensate pressure, emergency adjustment. Featuring IP protection IP54, EU certification and visual indication of the unit's status.
b/ Ø50 mm 3-way motorised valve with distance regulation
Composed by means of a compact, command unit, which is ready to connect and conforms to DIN norms. Water temperature can be regulated manually from +20°C to +40°C.
This regulation method uses :
- A sensor which measures water temperature in the pool with a 3m cable
- A sensor to measure ambient air temperature with 10m cable
- PVC Praher 3-way valve, DN40/d50, MVO 12-230V AC/DC, emergency adjustment. Featuring IP protection IP54, EU certification and visual indication of the unit's status.
Composed by means of a compact, command unit, which is ready to connect and conforms to DIN norms. Water temperature can be regulated manually from +20°C to +40°C.
This regulation method uses :
- A sensor which measures water temperature in the pool with a 3m cable
- A sensor to measure ambient air temperature with 10m cable
- PVC Praher 3-way valve, DN40/d50, MVO 12-230V AC/DC, emergency adjustment. Featuring IP protection IP54, EU certification and visual indication of the unit's status.

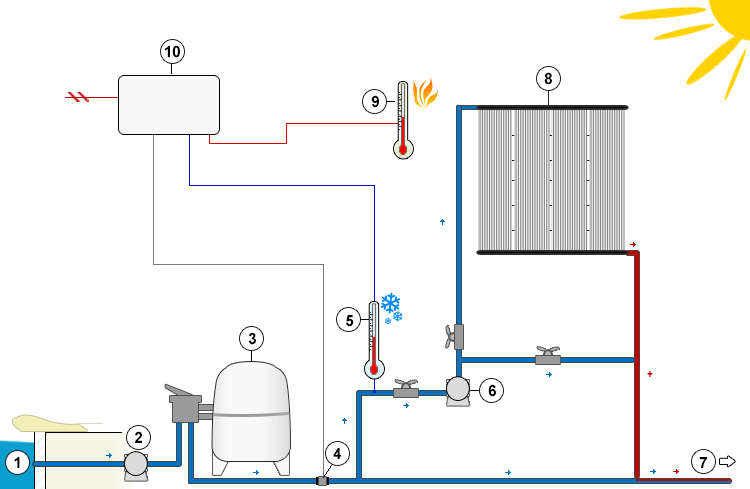

1. Suction
2. Filtration pump
3. Filter
4. Flow control
5. Water temperature sensor
2. Filtration pump
3. Filter
4. Flow control
5. Water temperature sensor
6. Auxiliary pump
7. Discharge to pool
8. Heliocol solar panel
9. Ambient temperature sensor
10. Electrical box for automatic regualation
7. Discharge to pool
8. Heliocol solar panel
9. Ambient temperature sensor
10. Electrical box for automatic regualation
2. Separate auxiliary pump and temperature regulation integrated to hydraulic circuit :
It may be preferable or required to install a separate pump for the solar heating system. In general, if the solar panel is situated at a greater distance than 15m from the pool water surface.
Water is redirected using the T connection situated before the filter in the direction of the panel.
The operation of this pump is managed by the regulation of temperature. The filter pump and the solar pump are separately regulated. The installation of anti-return valves on the solar and filtration circuits is highly recommended.
Command and regulation system and solar pump
Composed by means of a compact, command unit, which is ready to connect. Water temperature can be regulated manually from +5°C to +60°C).
This regulation equally includes: This regulation method uses :
- A sensor which measures water temperature in the pool with a 3m cable
- A sensor to measure ambient air temperature with 10m cable
This regulation equally includes: This regulation method uses :
- A sensor which measures water temperature in the pool with a 3m cable
- A sensor to measure ambient air temperature with 10m cable

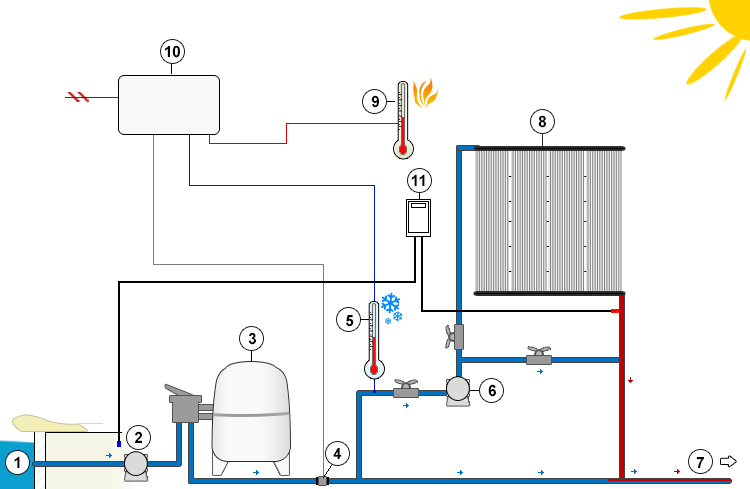

1. Suction
2. Filtration pump
3. Filter
4. Flow control
5. Water temperature sensor
2. Filtration pump
3. Filter
4. Flow control
5. Water temperature sensor
6. Auxiliary pump
7. Discharge to pool
8. Heliocol panel
9. Ambient temperature sensor
10. Electrical box for automatic regulation
11. Integrated temperature regulation
7. Discharge to pool
8. Heliocol panel
9. Ambient temperature sensor
10. Electrical box for automatic regulation
11. Integrated temperature regulation
Warranty
10 years on panels
Photos non-contractual
Price incl. VAT
Price incl. VAT
Ask for a free quote heliocol solar heating system for pools
